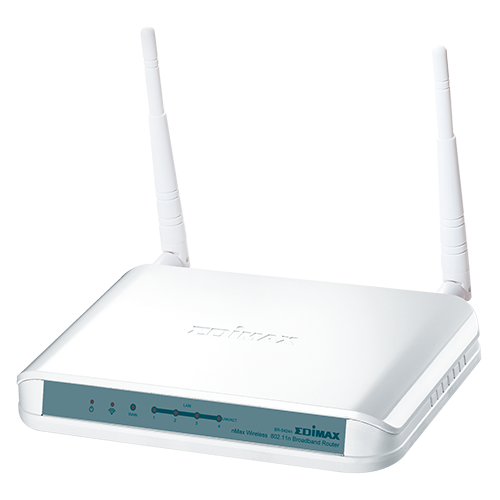

300 Mbps Wireless Broadband Router

BR-6424n V2

  • Complies with wireless 802.11n and 802.11b/g standards
  • Increases the wireless speed up to 12 times faster and extends the coverage 5 time further
  • Supports WISP (wireless ISP) connection mode
  • Includes EZmax multi-languages setup wizard for Internet connection, wireless settings and firmware upgrade
  • Supports EZView to manage device name, IP address, bandwidth and DMZ of UPnP compatible devices in LAN
  • Built-in hardware button to enable/disable wireless signal
  • Supports WMM, WEP, WPA, WPA2, DDNS, QoS, IP/MAC filter, DMZ and virtual server

(End-of-Life Product)



Fast 300Mbps Data Transmission via MIMO Technology
Edimax BR-6424n is a wireless 11n solution for your high performance/cost-effective home and small business needs. With its advanced MIMO technology, wireless data transmission coverage can reach up to 12 times better (up to 300Mbps) and 5 times better compared to a standard 802.11g/b router.

Extensive Internet Connection Sharing
With the built in NAT (Network Address Translation) function , the Edimax BR-6424n allows up to 253 wired or wireless clients to simultaneously share an Internet connection.

Remote or Local Management System
Edimax EZView is a new enhanced management system in BR-6424n that allows you to manage your router locally or remotely from the Internet. UPnP compatible devices are automatically detected with information about the device listed in the management interface of the router. Hence, you will be able to directly manage device information such as IP address, bandwidth control, open ports and DMZ.

Flexible WISP ( Wireless Internet Service Provider) Connection Mode
Wireless connection from your broadband router to an ISP's Access Point is also possible. When the BR-6424n is assigned to perform such task, it repeats the signal from a wireless Internet Service Provider to your home or office, simultaneously allowing connection of both wired and wireless stations to the Internet.

Easy & Multilingual Setup Installation CD*
A unique multilingual Setup Wizard is provided in the installation CD. By simply following the animated installation procedures, connection of your router to the Internet is done within minutes!

Practical Wireless ON/OFF Switch and Hardware WPS ( Wi-Fi Protected Setup ) Button
Edimax BR-6424n features a control button and WPS button on its rear panel. You can easily switch on/off the Wi-Fi wireless connection and setup a secure wireless network in minutes. When using a wired connection, you can pause the Wi-Fi option by pressing the button without making any extra setting.

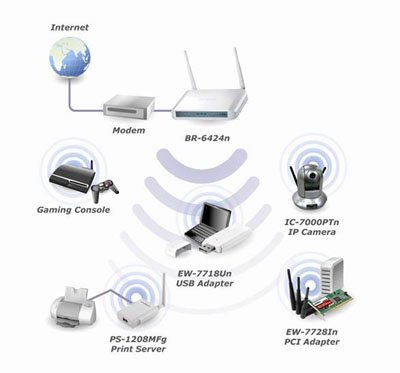

NETWORK SETUP DIAGRAM AND RELATED PRODUCTS



SPECIFICATIONS

FUNCTIONS

HARDWARE INTERFACE

MANAGEMENT
  • Supports AP, AP Client, Bridge, Bridge+ WDS and Universal Repeater modes
  • Port Triggering for special applications
  • DDNS and SIP
  • Virtual Server and DMZ hosting
  • MAC/IP filter and URL blocking
  • Static routing
  • UPnP architecture
  • VPN Pass-Through (IPSec/PPTP)
  • Schedule control
  • One RJ-45 WAN port
  • Four RJ-45 Fast Ethernet LAN ports
  • LED Indicators: Power, Wireless, WAN, LNK/ACT
    for LAN
  • Two Detachable 3dBi antennas
  • WPS / Reset button
  • Switch for wireless on/off
  • 12-language User Interface
  • Supports Remote Management
  • Supports EZView Management
  • System Status and Security Log
    (Web Interface)
  • Firmware upgradeable
WAN
SECURITY

OUTPUT POWER & SENSITIVITY GAIN

  • Supports WISP connection mode
  • Supports RJ-45 cable/ xDSL modem
  • WAN protocol: PPPoE /Static IP/PPTP/Dynamic IP/

    L2TP/ Telstra Big Pond

  • NAT/NAPT IP Sharing
  • 64/128-bit WEP Encryption and WPA-PSK,
    WPA2-PSK security
  • DHCP Server/Client
  • QoS for critical operations
  • SPI Anti- DoS Firewall
  • 11n: 16 ±1dBm,
    11g: 16 ±1dBm
    11b: 18 ±1dBm
  • 11n (40MHz): -68dBm,
    11n (20MHz): -71dBm,
    11g: -74dBm,
    11b: -87dBm

MEMORY

INSTALLATION KIT

HUMIDITY & TEMPERATURE

  • 4 MB NOR Flash
  • 16 MB SDRAM
  • Multilingual EZMax Setup Wizard
  • 10-90% (Non-condensing)
  • 0~45 o C

POWER ADAPTER

DIMENSIONS
CERTIFICATIONS
  • DC 12V, 1A
  • 179 (W) x 133 (D) x 25 (H) mm
  • CE, FCC
  • WiFi , WPS





*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
