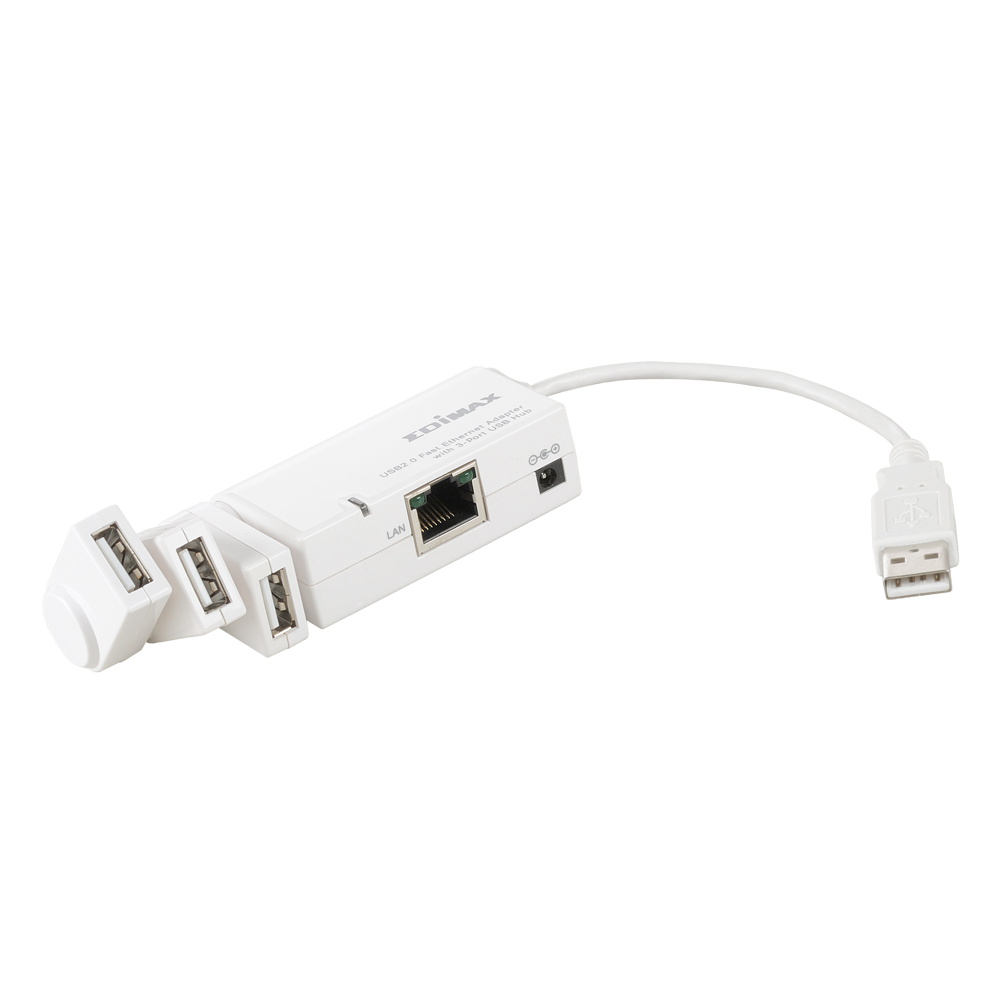

USB 2.0 3-port Hub with Ethernet Adapter

EU-4230

  • Ethernet adapter is for 10/100 Mbps RJ45 LAN port connection
  • Complies with USB 2.0 (Data Rate 1.5/12/480 Mbps) and USB 1.1 specifications
  • Compatible with IEEE 802.3 (10Base-T) and 802.3u (100Base-TX) standards
  • One (1) upstream and three (3) downstream USB ports
  • Connects up to 127 USB Devices
  • Over-current protection
  • Plug-and-Play installation
  • Supports both full-duplex and half-duplex operations
  • Powered by USB port. No external power adapter required. Self-powered via an adapter is optional.
  • Compatible with Microsoft Windows 2000, 2003, XP, Vista, and Mac OS 10.3 , 10.4, 10.5 or above

Edimax windows 8 support



Compatibility and Convenience
The EU-4230 is a combination of a 10/100M Ethernet adapter and an integrated standard-based 3-port USB hub in an all in one easy-to-use device. With the EU-4230, you avoid the hassles of opening up your computer case to add an internal network card. The EU-4207 is also backward compatible with the USB 1.1 specification. Featuring plug-and-play, this USB/Ethernet adapter requires no complicated installing procedures. EU-4230 can likewise seamlessly function under Microsoft Windows 2000, 2003, XP, Vista, and Mac OS 10.3 ,10.4, 10.5 or above.

Dual Power Mode
There is one upstream port that connects to the PC host and there are three downstream ports connecting up to 127 USB devices in a tiered-star configuration. For convenience, the EU-4230 hub operates using either a bus-generated power or a power adapter.



Performance in a Compact Size
Compared with USB 1.1 standard which offers 12 Mbps speed, the EU-4230's compliance with USB 2.0 (480Mbps) ensures true 10/100 Mbps network speed without any compromise. An ideal solution to decongest a a crowded workspace.







  • Ethernet adapter is for 10/100 Mbps RJ45 LAN port connection
  • Complies with USB 2.0 (Data Rate 1.5/12/480 Mbps) and USB 1.1 specifications
  • Compatible with IEEE 802.3 (10Base-T) and 802.3u (100Base-TX) standards
  • One (1) upstream and three (3) downstream USB ports
  • Connects up to 127 USB Devices
  • Over-current protection
  • Plug-and-Play installation
  • Supports both full-duplex and half-duplex operations
  • Powered by USB port. No external power adapter required. Self-powered via an adapter is optional.
  • Compatible with Microsoft Windows 2000, 2003, XP, Vista, and Mac OS 10.3 , 10.4, 10.5 or above

    USB LAN  LED  INDICATORS
    • Upstream port x 1 (USB Type A plug)
    • Downstream USB port x 3 (USB Type A receptacles)
    • USB2.0 and USB1.0 compliant
    • RJ-45 x 1 (Ethernet 10BASE-T/Fast Ethernet 100Base- TX port)
    • Complies with the Full-duplex with flow control and Half duplex with backpressure operation
    • POWER ON
    • Ethernet connection
     POWER SYSTEM REQUIRMENTS OPERATING TEMPERATURE
    • Bus-powered : 5V 500mA
    • Self-powered : 5V 2.5A
    • Optional Adapter: Input : 100~240V 50Hz ~60Hz Output : 5V/2.5A
    • CPU: Pentium 233MHz above or MAC
    • Memory size: min. of 64MB RAM
    • One available USB slot
    • Windows 2000, 2003, XP, Vista; Mac OS 10.3 , 10.4, 10.5 or above
    • 0oC - 70oC
    WEIGHT DIMENSIONS

    CERTIFICATIONS

    • 48g
    • 98 x 20 x 36 mm
    • CE, FCC


    TYPICAL SETUP DIAGRAM AND RELATED PRODUCTS




    * Product features and specifications are subject to change without notice.





*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
