Gigabit Ethernet PCI Adapter

EN-9230TX-32

(End-of-Life Product)

  • Complies with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards
  • Supports IEEE 802.3x Full-Duplex flow control to enhance throughput
  • Supports IEEE 802.1Q VLAN Tagging
  • Includes a Setup Wizard program
  • Supports 10/100/1000Mbps Auto-Negotiation and jumbo frame
  • Easy Plug&Play installation - auto setup of IRQ and I/O address
  • Supports PCI 2.2 Wake on LAN function
  • Supports Auto MDI/MDI-X
  • Supports 32-bit, 66/33MHz PCI Local Bus Master for high speed operation of Rev.2.3/2.2/2.1 specification
  • Compatible with Windows 98SE/2000/XP/Vista and Mac OS 10.4.x up, and Linux OS


Reliable Wired Networking
Edimax 10/100/1000Mbps PCI Gigabit adapters deliver high performance wired network connectivity to your desktop PCs. Connect your Gigabit home or business network to any of our PCI Gigabit adapter and you instantly transfer files at speeds 10 times faster than 10/100 Fast Ethernet devices. Once connected, access to shared music, documents, movies, and photos on your network are made easy and quick. On top of these, the EN-9230TX-32 comes with more features that serve beneficial to all its users.

Comprehensive Networking Approach
All Edimax Gigabit adapters support ACPI (Advanced Configuration Power Interface) and Wake on LAN that allow remote power control of the PC.  The manageability, compatibility, Plug&Play, and 32-bit bus-mastering architecture are the core essence of these PCI Gigabit adapters that provide true value to your network.

User-friendly Setup CD Wizard and Driver*
To facilitate network connectivity, the EN-9230TX-32 includes a user-friendly setup CD wizard. Its user interface simplifies and enhances driver installation for immediate use of the device.


* The Setup CD Wizard is only compatible with Edimax network interface cards.



  • Complies with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards
  • Supports IEEE 802.3x Full-Duplex flow control to enhance throughput
  • Supports IEEE 802.1Q VLAN Tagging
  • Includes a Setup Wizard program
  • Supports 10/100/1000Mbps Auto-Negotiation and jumbo frame
  • Easy Plug&Play installation - auto setup of IRQ and I/O address
  • Supports PCI 2.2 Wake on LAN function
  • Supports Auto MDI/MDI-X
  • Supports 32-bit, 66/33MHz PCI Local Bus Master for high speed operation of Rev.2.3/2.2/2.1 specification
  • Compatible with Windows 98SE/2000/XP/Vista and Mac OS 10.4.x up, and Linux OS


    HARDWARE INTERFACE

    COMPLIED STANDARDS

    LED Indicators

    •  PCI Interface
    •  One 10/100Mbps LAN port
    •  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,
    IEEE802.3x
    •  Link
    •  Activity

    INSTALLATION KIT

    CHIPSET

    HUMIDITY

    •  Setup Wizard program with Driver setup

    •  Realtek RTL8169SC Single Chip

    •  10~95% (Non-condensing)

    SYSTEM REQUIREMENTS

    BUS ARCHITECTURE

    TEMPERATURE

    •  CPU: Pentium III 1G above or similar
    •  Memory size: 256MB RAM
    •  One CD-ROM drive
    •  Hard Disk: Min. of 100MB disk space
    •  One available PCI slot
    •  OS: Windows 98SE/2000/XP/Vista or Mac 10.4.x and up, or Linux OS

    •  PCI V 2.3/2.2/2.1, 32-bit, 66/33MHz

    •  0~55°C

    DIMENSIONS

    CERTIFICATIONS



    •  45 (W) x 120 (D) mm

    •  CE, FCC

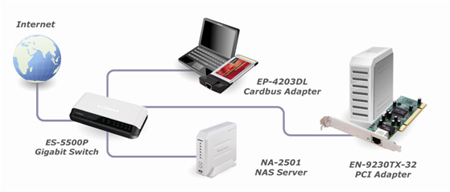

    TYPICAL SETUP DIAGRAM AND RELATED PRODUCTS











*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
