Supports both 3G/3.75G and Cable/xDSL Modems*
The 3G-6200nL V2 supports both 3G/3.75G and cable/xDSL modems. With both a USB port and an Ethernet WAN port, you can easily share a 3G/3.75G or cable/xDSL connection with multiple devices. Users with both kinds of Internet services will enjoy the router’s connection fail-over function, which allows the router to automatically switch to the cable/xDSL connection when 3G/3.75G Internet access is not available. (* Please check here for the 3G/3.75G modem card compatibility list.)

Internet Tethering via iPhone
The 3G-6200nL V2 supports Internet tethering via iPhone. Users can easily share an iPhone’s Internet connection by enabling the Internet tethering function on iPhone and connecting it to the 3G-6200nL V2 via USB.

Designed with the Latest Green WLAN Technology
With the latest green WLAN technology, the 3G-6200nL V2 is able to dynamically adjust its power supply according to the amount of network activity. By supplying only the amount of power needed, this router allows for high networking performance while maintaining minimum power consumption.

150Mbps Max. Wi-Fi Speed
This Edimax wireless router is a high-speed solution that complies with IEEE 802.11b/g/n standards. The latest wireless MIMO (multiple-input and multiple-output) technology is built into this router to broaden its Wi-Fi coverage and to eliminate dead spots within the signal range. When it is connected to IEEE 802.11n wireless devices, this Edimax wireless router can reach Wi-Fi speeds of up to 150Mbps.

WPS Button
The Wi-Fi Protected Setup (WPS) button on this Edimax router allows for simple, push-button device connection. Simply push the WPS button on this router and on a client device, and you can establish a secure Wi-Fi connection between the two devices instantly.

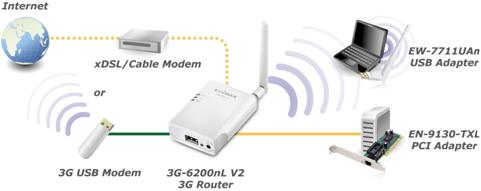

  APPLICATION DIAGRAM

SPECIFICATIONS
​

FUNCTIONS	HARDWARE INTERFACE	MANAGEMENT
•Supports 3G/3.75G and cable/xDSL connection fail-over •iQoS bandwidth management system •Port triggering for special applications •Supports iPhone Internet tethering •Green WLAN technology •DDNS, WMM, QoS, virtual server, DMZ & UPnP •VPN pass-through (IPSec/PPTP)	•1 x RJ-45 10/100Mbps WAN Port •1 x RJ-45 10/100Mbps LAN Port •1 x USB 2.0 Port •LED Indicators: Wi-Fi, WAN, LAN, 3G •1 x 2dBi detachable antenna •WPS/Reset button	•Supports remote management •Supports 3G limit control •Mulit-language user interface •System status and security log (web interface) •Firmware upgradeable
WAN	SECURITY	OUTPUT POWER
•Supports UMTS, HSDPA, HSUPA & CDMA •Supports RJ-45 cable/xDSL modem •Supports WAN protocols: PPPoE, static IP, PPTP, dynamic IP, L2TP2	•NAT/NAPT IP sharing •64/128-bit WEP, WPA-PSK and WPA2-PSK security •DHCP server •MAC/IP filter and URL blocking •Anti-DoS firewall	•11n: 13±1.5dBm, •11g: 13±1.5dBm, •11b: 16±1.5dBm
MEMORY	INSTALLATION	HUMIDITY & TEMPERATURE
•8MB NOR flash •32MB SDRAM	•Multi-language EZmax setup wizard for Internet connection, Wi-Fi setup, and firmware upgrade	•10-90% (non-condensing) •0-40°C
POWER ADAPTER	DIMENSIONS	CERTIFICATIONS
•DC 5V, 2A	•61 (W) x 77 (D) x 23 (H) mm	•CE, FCC
