300Mbps Wireless 802.11b/g/n 32-bit PCI Adapter

EW-7722In

  • Complies with wireless 802.11b/g/n standards with data rate up to 300Mbps
  • Built in hardware WPS button
  • Increases wireless coverage for 5 times further
  • Includes multi-language EZmax setup wizard
  • Supports 64/128-bit WEP, WPA , WPA2 encryptions and WPS wireless security

Edimax windows 8 support



EW-7722In is a high-gain wireless PCI adapter which provides a simple and easy way to add or upgrade wireless connectivity to your desktop or notebook computer. This high-gain PCI adapter supports higher data rates up to 300Mbps when connected to a wireless 802.11n device. You can also connect to any public wireless hotspot for Internet to retrieve e-mail, surf web sites or use instant messaging. EW-7722In gives you the freedom to join the network.

Complies with wireless 802.11b/g/n devices with data rate up to 300Mbps
With the latest wireless 802.11n technology, EW-7722In can increase the coverage 5 times more and reduce "dead spots" within the wireless range. The transmission data rate when connected to wireless 802.11n devices can reach up to 300Mbps, making signal travel further and guarantee wireless connections compared to a standard wireless 802.11b/g network.

Supports multi-language EZmax setup wizard
The EZmax setup wizard has 16 different languages and the user-friendly interface guide you through to install the EW-7722In adapter into your computer and get connected to your wireless network.

3dBi High gain detachable antennas
The 3dBi detachable antennas enhance the wireless reception and transmission. It does allow your replace it to a higher gain antennas.

Built-in WPS (Wi-Fi Protected Setup) button
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a wireless network. This wireless PCI adapter supports software WPS-compatible configuration and hardware WPS push button. If you have a WPS-enabled router, you can simply click on the WPS button on both end and it will be connected automatically.

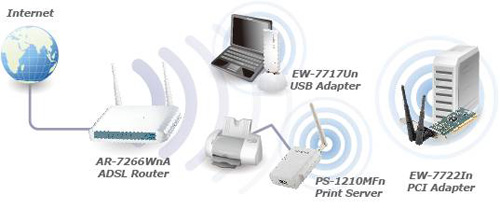

APPLICATION DIAGRAM

  • Connects the EW-7722In wireless adapter to your computer.
  • Setup the wireless connection by running the multi-language EZmax wizard.
  • Connects to 802.11b/g/n wireless access point or broadband router.



SPECIFICATIONS
HARDWARE INTERFACE
STANDARD
FREQUENCY BAND
  • 32-bits PCI
  • WPS button
  • 3dBi detachable dipole antennas

  • IEEE802.11b, 802.11g, 802.11n
  • 2.4000~2.4835GHz (Industrial  Scientific Medical Band)
DATA RATE
INSTALLATION
LED
  • 11b: 1/2/5.5/11Mbps
  • 11g:6/9/12/24/36/48/54Mbps
  • 11n (20MHz): MCS0-15 (up to 144Mbps)
  • 11n (40MHz): MCS0-15 (up to 300Mbps)
  • Multi-language EZmax Setup Wizard
  • Link, Tx/Rx
WIRELESS SECURITY
DIMENSIONS
HUMIDITY & TEMPERATURE
  • WEP 64/128, WPA, WPA2
  • Cisco CCX Support
  • WPS configuratio
  • 22(H) x 128(W) x 121(D) mm(without antenna)
  • Max. 95% (Non Condensing)
  • Operating : 32~131°F (0~55°C)
    Storage : -4~149°F (-20~65°C)
SYSTEM REQUIREMENTS
OUTPUT POWER
CERTIFICATIONS
  • Windows 2000/XP/Vista/7/8, Linux and Mac OS
  • 11n: 15dBm±1.5dBm,
  • 11g: 15dBm±1.5dBm,
  • 11b: 17dBm±1.5dBm
  • CE, FCC
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
