300Mbps Wireless 802.11b/g/n Long Range USB Adapter

EW-7612HPn

  • Complies with wireless 802.11b/g/n standards with data rate up to 300Mbps.
  • Built in high power technology.
  • Built in 5dBi Detachable Antenna.
  • Includes multi-language EZmax setup wizard.
  • Supports 64/128-bit WEP, WPA , WPA2 encryption, 802.1x and WPS-compatible.


EW-7612HPn is a high power wireless USB adapter which increases the wireless signal strength and extends wireless coverage. This high power USB adapter supports higher data rates up to 300Mpbs when connected to a wireless 802.11n device. Simply plug it into a computer's USB port and you can enjoy its incredibly high-speed wireless performance.

Complies with wireless 802.11n devices with data rate up to 300Mbps
With the latest wireless 802.11n technology built into it, the transmission data rate when connected to wireless 802.11n devices can reach up to 300Mbps, making signal travel farther and guarantee wireless connections compared to a standard wireless 802.11b/g network.

Built in High Power  Technology  and 5dBi high gain detachable antenna
EW-7612HPn built in high power technology and high gain 5dBi detachable antenna that can help you to extend wireless coverage.  The detachable antenna with extended USB cable let you relocate the antenna to receive the best signals. Also, you can change to any high gain aerial with RP-SMA interface. Its rotatable and detachable 5dBi high gain antenna makes the wireless transmission more stable and reach farther. EW-7612HPn is your choice for wireless connection!

Multi-language EZmax setup wizard
It comes with 16 languages EZmax setup wizard. The user-friendly setup wizard interface will guide you through to configure the EW-7612HPn and connect to your wireless network. (*The EZMax Setup CD Wizard only supports Edimax wireless Series)

Wireless Security
EW-7612HPn supports 64/128-bit WEP data encryption that protects your wireless network from eavesdropping. It also supports WPA (Wi-Fi Protected Access) feature that combines IEEE 802.1x and TKIP technologies. Furthermore, this adaptor supports WPA2 and WPS functions, WPA2 provides a stronger encryption mechanism through AES , which is a requirement for some corporate and government users. Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a wireless network. EW-7612HPn supports software WPS-compatible configuration. When both ends of the wireless connection use wireless solution with WPS, it will automatically configure the wireless network with robust WPA data encryption and authentication.

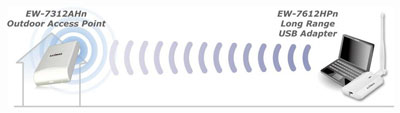

APPLICATION DIAGRAM

  • Connects the EW-7612HPn wireless adapter to your computer.
  • Setups the wireless connection by running the multi-language EZmax wizard.
  • Connects to 802.11b/g/n wireless access point or broadband router.



SPECIFICAITONS

HARDWARE INTERFACE
STANDARD & FREQUENCY BAND
SENSITIVITY
  •   One (1) USB 1.0/2.0 Type A
  •   5dBi High-Gain rotatable & detachable antenna
  •   IEEE802.11b/g/n
  •   24000~2.4835GHz
  •  -70dBm @802.11n
  •  -78dBm @802.11g
  •  -85dBm @802.11b
DATA RATE
INSTALLATION
LED & OPERATION VOLTAGE
  •   11b: 1/2/5.5/11Mbps
  •   11g: 6/9/12/24/36/48/54Mbps
  •   11n (20MHz): up to 72/144Mbps
  •   11n (40MHz): up to 150/300Mbps
  • Multi-language EZmax Setup Wizard
  •   Link/Activity
  •   5V
SECURITY
DIMENSIONS
HUMIDITY & TEMPERATURE
  •   WEP 64/128, WPA, WPA2, 802.1x
  •   Software WPS configuration
  • 94(L) x 56(W) x 16(H) mm(without antenna)
  •   Max. 95% (Non Condensing)
  •   32~104°F (0~40°C)
SYSTEM  REQUIREMENS
OUTPUT POWER
CERTIFICATIONS
  • Windows 2000/XP/Vista/7, Linux and Mac OS
  •   11n: 22dBm±1dBm,
  •   11g: 24dBm±1dBm,
  •   11b: 28dBm±1dBm
  • CE, FCC



*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
