N300 Multi-Function Wi-Fi Router
Three Essential Networking Tools in One

BR-6428nS V2

  • 3-in-1 Router, Access Point, and Range Extender
  • Smart iQ Setup for smart, automatic and quick installation with no CD required
  • 5dBi High Gain Antenna: Enhances wireless range and coverage
  • Guest network: Provides connectivity while isolating guests from your primary network.
  • Wi-Fi Protected Setup (WPS) Button: For easy one-click setup


The BR-6428nS V2 is a 300Mbps high-speed multi-function Wi-Fi solution which supports IEEE 802.11b/g/n standards and provides significantly improved coverage with the 5dBi antenna. Operating as a router, access point or range extender, the BR-6428nS V2’s flexibility meets the demands of any networking applications. The smart iQ Setup wizard makes setup and installation as easy as a few clicks. Impressive performance and a competitive price make the BR-6428nS V2 a cost-effective solution for home or small office environments.

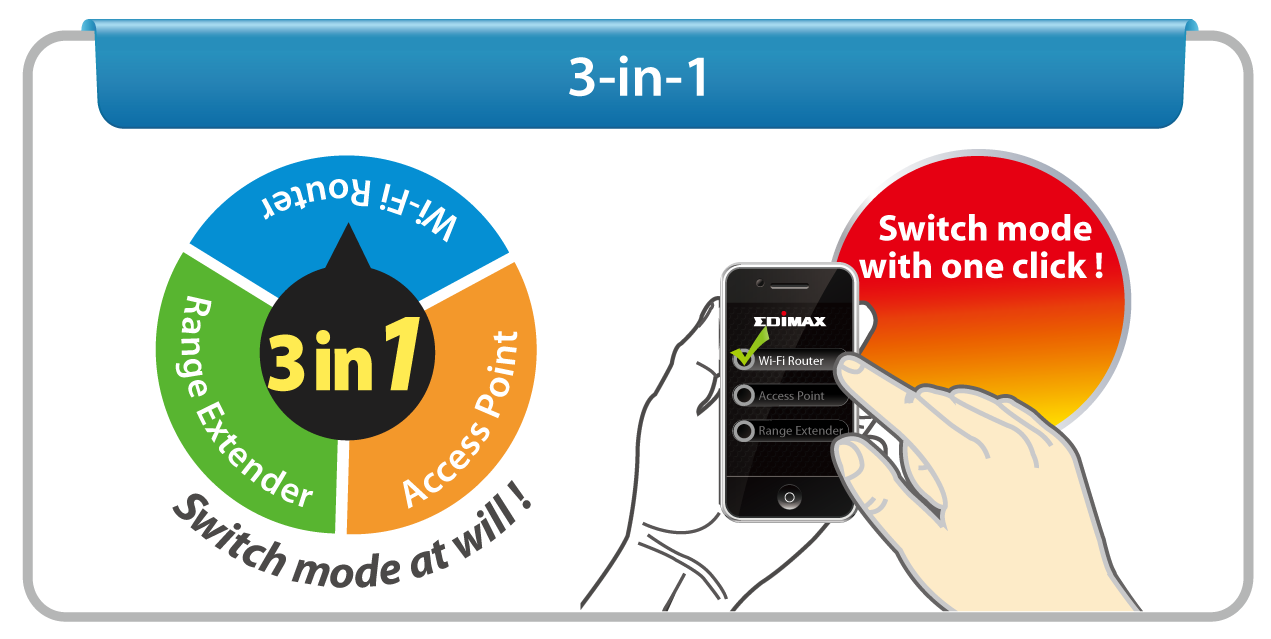

3-in-1 Router, Access Point and Range Extender
The BR-6428nS V2 can work as router, access point or range extender. Just configure the mode you need for your network environment using the smart iQ Setup wizard and enjoy surfing the web.


Edimax BR-6428nS V2 N300 Multi-Function Wi-Fi Router ,Three Essential Networking Tools in One, supports 3-in-1 router, access point and range extender modes

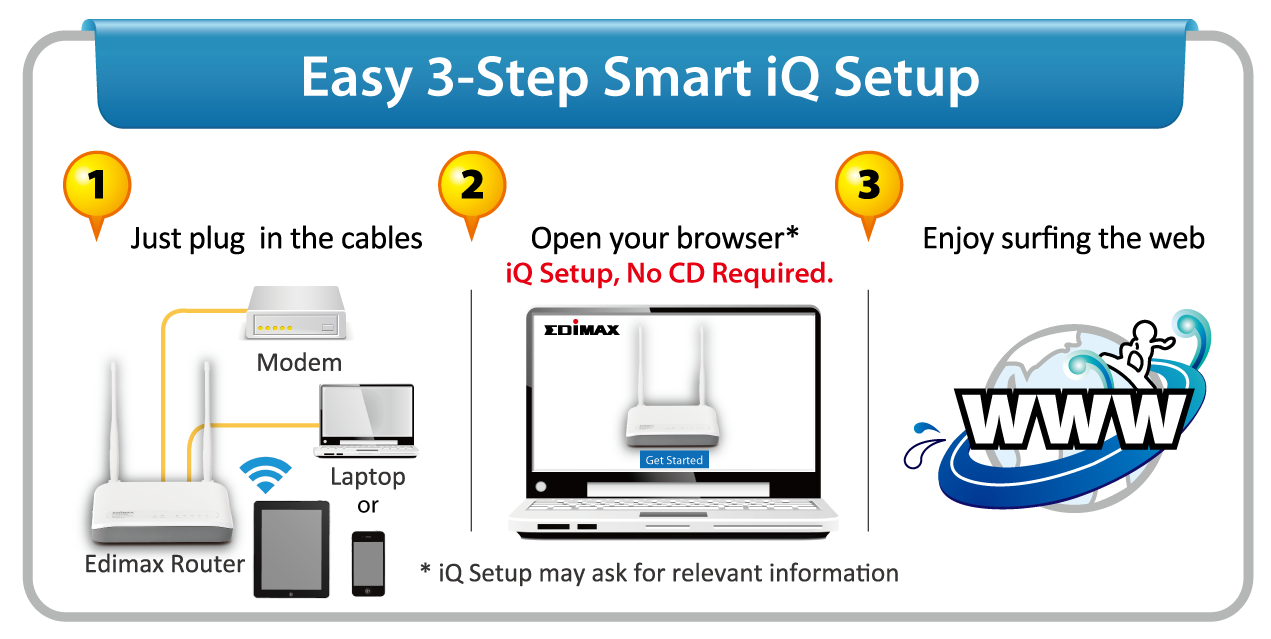

Smart iQ Setup
Features iQ Setup for smart, automatic and quick installation with no CD required.


Edimax BR-6428nS V2 N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, supports Smart iQ Setup

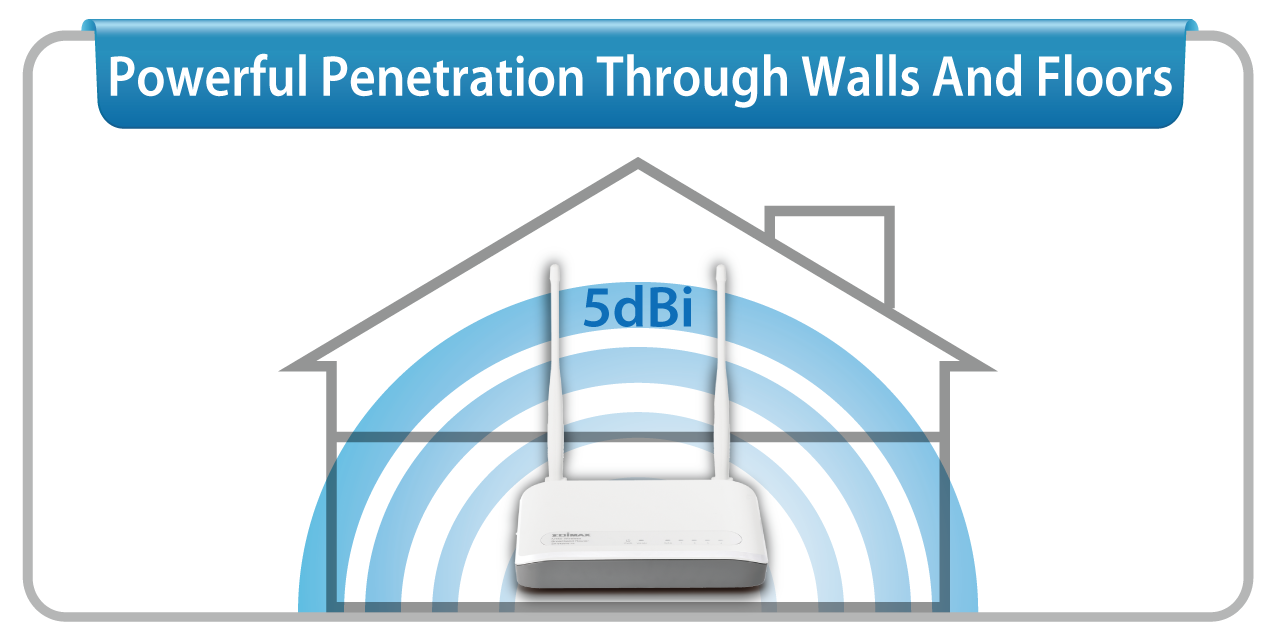

5dBi High Gain Antenna
Employs two 5dBi high gain antennas to enhance wireless range and coverage, providing powerful penetration through walls and floors.


Edimax BR-6428nS V2 N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, with 5dBi high gain antenna for better coverage

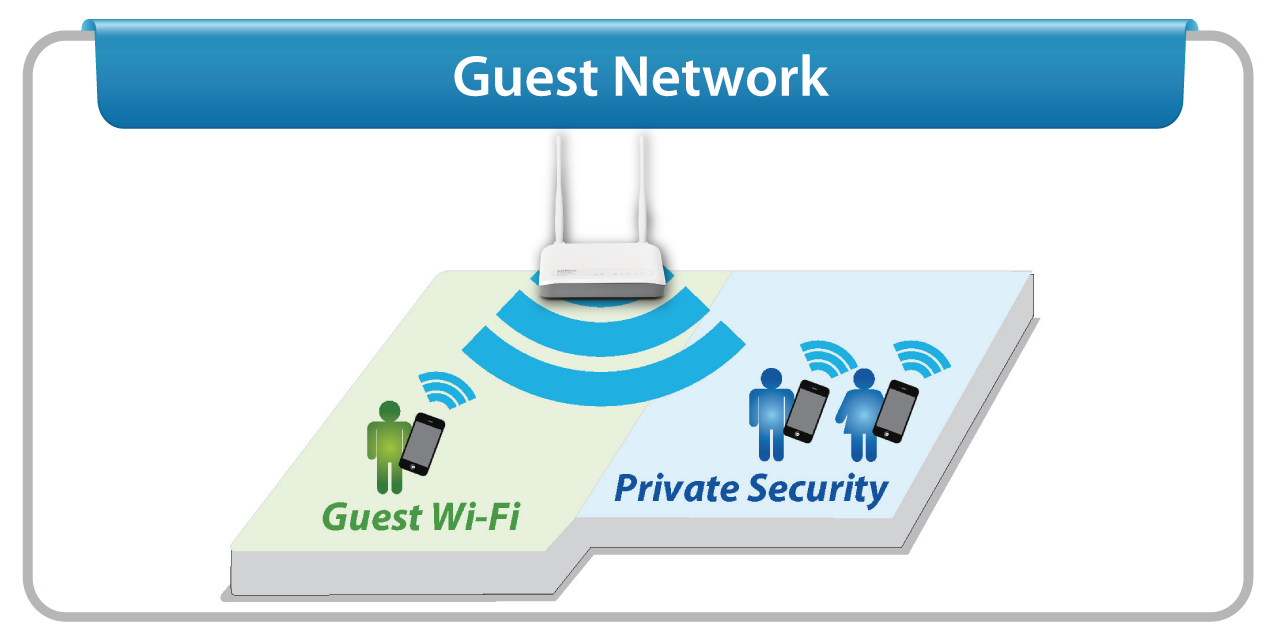

Guest Network*
Supports a guest network to provide connectivity while isolating guests from your primary network.
*Router mode only


Edimax BR-6428nS V2 N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, supports guest network











Green Technology
Designed with the latest green technology, the BR-6428nS V2 uses 30% less power compared to other standard 300Mbps routers.


Edimax BR-6428nS V2 N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, with green technology for energy saving

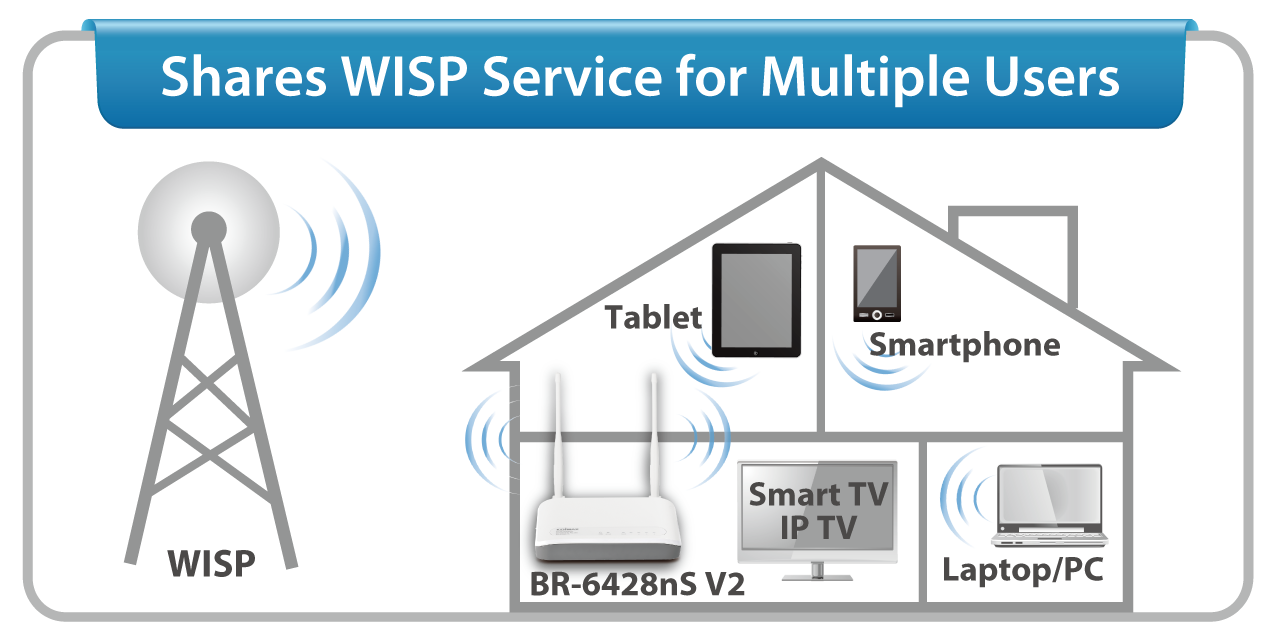

Wireless Internet Service Provider (WISP) Connection Mode
With WISP support, the BR-6428nS V2 is able to share an Internet connection from a wireless ISP access point and convert it into a wired or wireless network for multiple users in your home or office.


Edimax BR-6428nS V2 N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, supports WISP (Wireless Internet Service Provider) mode

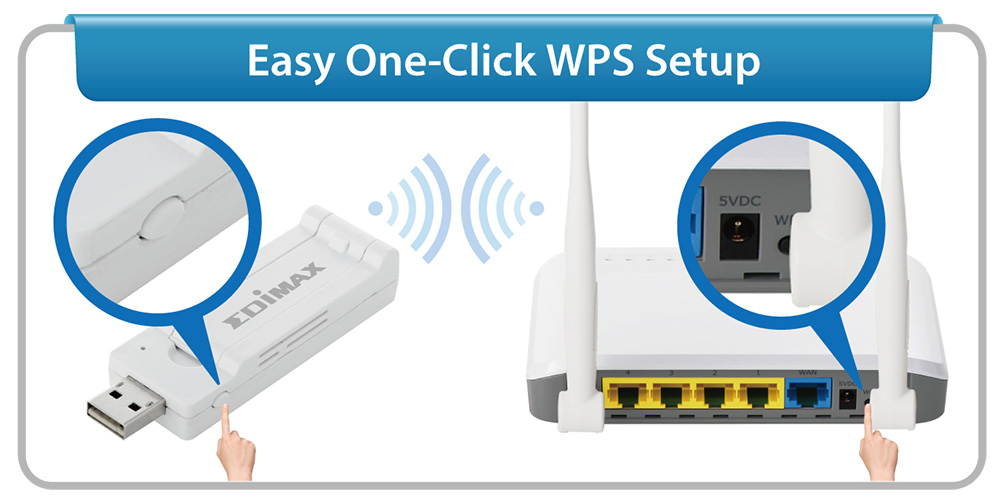

Wi-Fi Protected Setup (WPS) Button
The BR-6428nS V2 has a one-click Wi-Fi Protected Setup (WPS) button to help you set up and activate a secure wireless network in a snap.

Edimax BR-6428nS V2 N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, supports WPS (Wi-Fi Protected Setup) button for easy one-click WPS setup











APPLICATION DIAGRAMS



Edimax BR-6428nS V2 N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, supports 3-in-1 router, access point and range extender modes





SPECIFICATIONS​

FUNCTIONS

HARDWARE INTERFACE

MANAGEMENT

•Supports router, access point & range extender modes
•Port triggering for special applications
•DDNS and SIP
•Guest network
•Virtual server and DMZ hosting
•MAC/IP filter and URL blocking
•Static routing
•UPnP architecture
•VPN pass-through (IPSec/PPTP)
• Wi-Fi schedule control

•1 x RJ-45 Fast Ethernet WAN port
•4 x RJ-45 Fast Ethernet LAN port
•LED Indicators: power, wireless, WAN, LNK/ACT for LAN
•2 x 5dBi fixed antennas
•WPS/Reset button

•Intuitive user interface
•System status and security log (web interface)
•Firmware upgradeable

WAN

SECURITY

OUTPUT POWER & RECEIVE SENSITIVITY

•Supports WISP connection mode
•Supports RJ-45 cable/xDSL modem
•WAN protocol: PPPoE, static IP, dynamic IP, PPTP and L2TP

•NAT/NAPT IP sharing
•WEP, WPA & WPA2 encryption
•DHCP server/client
•QoS for critical operations
•SPI anti-DoS firewall

•E.I.R.P: < 20dBm
11b(11Mbps): -83dBm±2dBm
11g(54Mbps): -71dBm±2dBm
11n(20MHz): -68dBm±2dBm
11n(40MHz): -64dBm±2dBm

MEMORY

INSTALLATION KIT

HUMIDITY & TEMPERATURE

•4MB NOR Flash
•16MB RAM

•Smart iQ Setup, no CD required
•Supports smartphone, tablet or laptop setup. (iOS 4 or Android 4 and above are required for smartphone or tablet setup.)

•10-90% (non-condensing)
•0-40oC

POWER ADAPTER

DIMENSIONS & WEIGHT

CERTIFICATIONS

•DC 5V, 1A

•135 (W) mm x 110 (D) mm x 28 (H) mm
•161g (antenna weight included)

•CE, FCC




PACKAGE CONTENT

  • Multi-function Wi-Fi router
  • Quick installation guide
  • CD with multi-language QIG and user manual
  • Ethernet cable
  • Power adapter (5V, 1A)

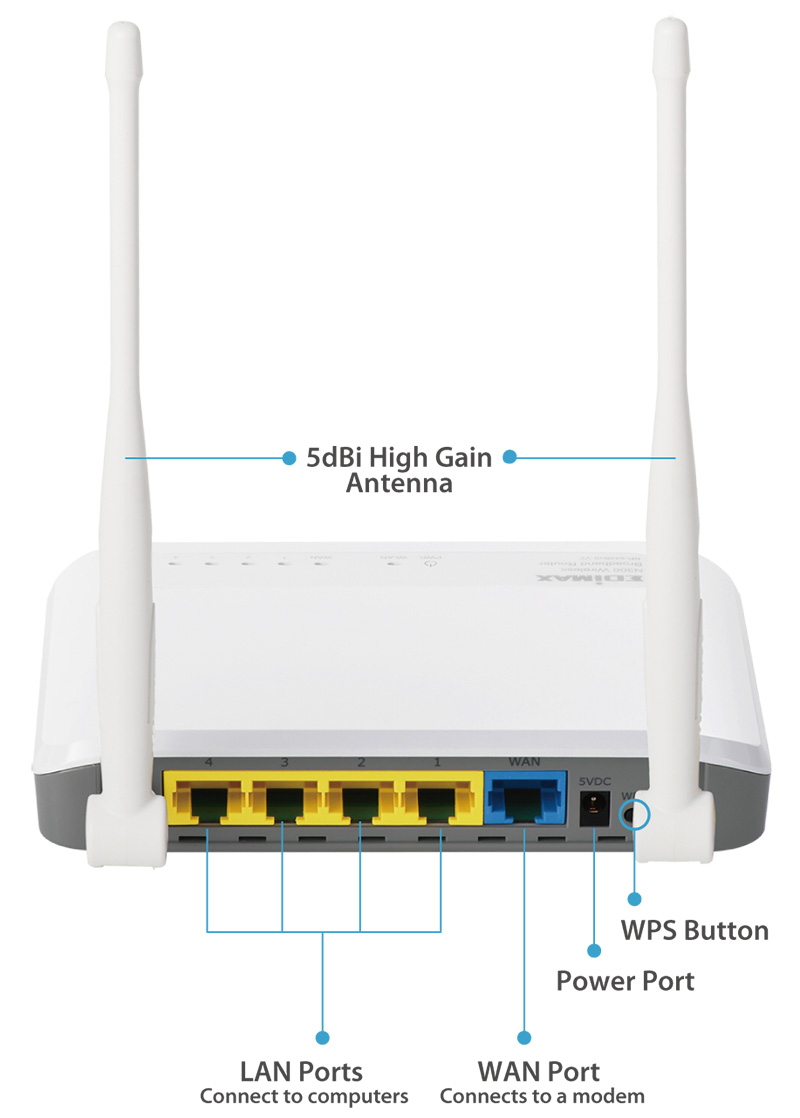

HARDWARE INTERFACE



Edimax BR-6428nS V2 N300 Multi-Function Wi-Fi Router Three Essential Networking Tools in One, hardware interface



*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
