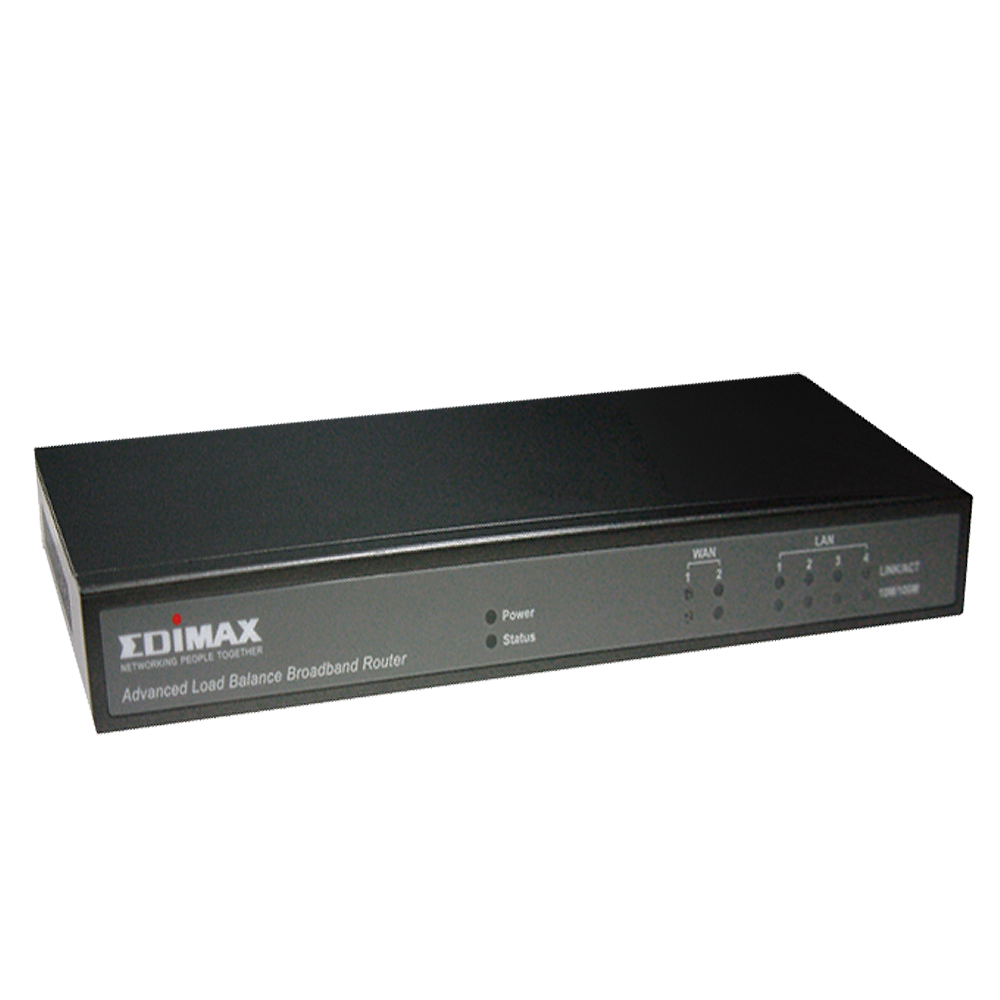

2 WAN + 4LAN Load Balancing Router


  • Multiple IP Address support. Fully supports situations where your  ISP allocated multiple IP addresses.
  • Advanced NAT features to set up DMZ, DDNS, Remote
  • Management Routing, Virtual Servers, SNMP, ARP proxy.
  • 5 groups of access filter to up to 253 LAN users
  • VPN, QoS support, Multiple DMZ

Smart Load Balancing Three load balancing types allow administrators to manage the load balancing methods best suited to the LAN environment and to maximize bandwidth across different connections.

High availability with double bandwidthFor small-to-medium size business, Load Balancing is the ideal product. With Load Balancer, up to 253 users are connected to the Internet with Double Broadband Speed.

QoS (Quality of Service)
Load Balancing supports QoS for controlling traffic priority. With QoS, businesses can make the critical traffic or application at high priority and route first.

WAN port Health Check to against connection fail
Load Balancing offers automatic outbound traffic backup to against the failure of either broadband connection to protect your business.

Specifications BR-6624
WAN Port

2 x 10/100Mbps RJ45 / Auto-MDI/MDIX; 802.3/802.3u

LAN Port

4 x 10/100Mbps RJ45 / Auto-MDI/MDIX; 802.3/802.3u


Over 40MBits/sec
Outbound Load Balance & Backup
Outbound load balance by bytes, packet, & session
Auto backup connection


Security: NAT, UPAP, CHAP
Network: TCP/IP, DHCP, HTTP, PPP, UPAP, PPPoE, Multi-session PPPoE, ICMP, ARP Proxy
Routing: static route for WAN & LAN, RIP I & II
Connection: static IP, dynamic IP, PPPoE, PPTP


PPTP,IPSec pass through & PPTP client


NAT (Network Address Translation)
NAPT (Network Address Port Translation)
DoS (Denial of Service) / Access control by group
Ping to Death / Port Scan / SPI (Stateful Packet Inspection)
ICMP filter for WAN / Packet filter / URL block

QoS (Quality of Service)

Policy Priority set by source and destination IP, source and destination MAC address, and service types


Admin passwords / Authentication with UPAP and CHAP for PPPoE


Management through WAN & LAN port / HTTP web based management / Email alert of WAN fail / Syslog


Support MSN & Net meeting
Support with H.323 VoIP products
Multi-session PPPoE
SMTP bind / SNMP / UPnP
Virtual server / Multi-DMZ / Dynamic DNS
NAT status & connection list
MTU changeable for WAN
Dial-on-demand & Auto-disconnect
MAC address clone / Transparent Bridge Mode



*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
