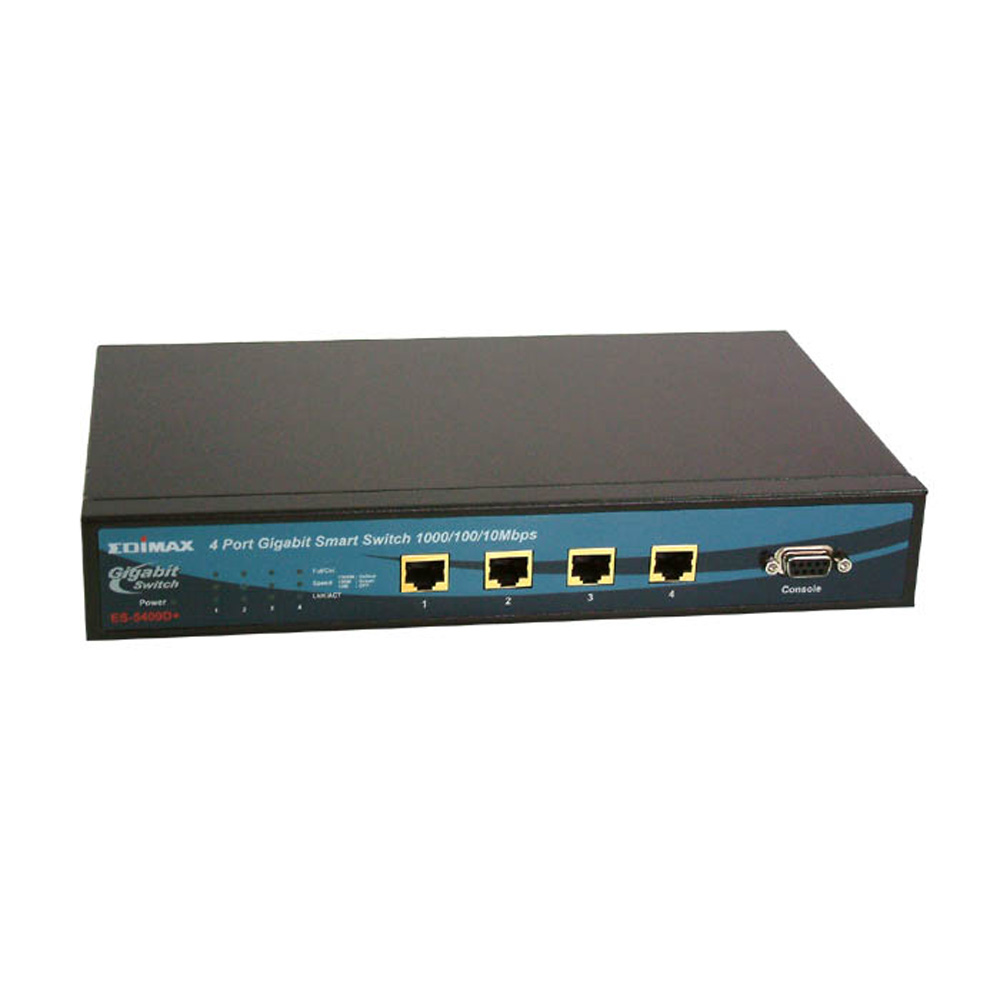

4 Ports Gigabit Desktop Smart Switch

ES-5400D+

( End-of-Life Product, no longer supported by Edimax tech support )

Please find all information available below.

  • High Performance Gigabit Switch (Gigabit over Copper)
  • 1000/100/10Mbps Auto-Negotiation
  • Provides Smart Function: VLAN, QoS, Port Mirror
  • Full Wire Speed
  • 11" Desktop Size
Share


Key Features

  • Complies with the IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet and IEEE802.3ab Gigabit Ethernet standard
  • Provide Store-and-Forward architecture and full wire speed filtering and forwarding rate
  • Support 10/100/1000Mbps and Auto-MDI/MDI-X
  • Support IEEE802.3x compliant full-duplex flow control and back-pressure half-duplex flow control
  • Support Port-based VLAN(up to 4 groups)
  • Support QoS (IEEE802.1p): 4 Priority queues per port
  • Support Port Mirroring
  • Support Console configuration

Share


  • Standard : IEEE802.3, IEEE802.3u, IEEE802.3ab
  • Gigabit Ports : 4 ports with RJ-45 connectors
  • Network Media :
     10Base-T, UTP/STP category 3 or 5 cable
     100Base-TX, UTP/STP category 5 cable
     1000Base-TX, 4 pairs category 5 cable
  • Architecture : Store and Forward
  • MAC Address Table : 8K
  • Buffer Memory : 256K
  • Advanced Smart Functions : Port Mirror, VLAN, Qos
  • Dimension : 40(H) x 330(W) x 210mm(D) / 1.6(H) x 13(W) x 8.3 in(D)
  • Weight : 1.5 Kg / 0.84 lb
  • Temperature : 10°C~50°C
  • Humidity : 10% ~ 90% (Non-condensing)
  • Input Power Requirement : 100 - 240VAC, 50 - 60Hz, Auto-sensing
  • Certification: FCC Class A, CE Mark
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
