85Mbps PowerLine Ethernet Adapter

HP-8501

(End-of-Life Product)

  • Supports IEEE 802.3 and IEEE 802.3u Ethernet Standards
  • Supports 85Mbps high speed data rate Powerline Standard
  • Orthogonal Frequency Division Multiplexing for high data reliability in noisy media conditions
  • Fast enough for DVD-quality video streaming
  • Supports 56-bit DES link encryption for secure Powerline networking
  • Provides Easy Installation and Coverage up to 200 meters
Share


HP-8501 turns the existing electric wires in your home or office into a high-speed network. You don't have to install the network cables and be annoyed with the cables planning-- just use the wires that already run through the building!

Just plug HP-8501 into the power socket on the wall, and connect your Ethernet-equipped device toHP-8501 using the included network cable, and you've turned your whole house into network infrastructure! Attach more computers to the network by simply plugging them into the power sockets in the house , with HP-8501.

Once your computers are connected to the network, they can share resources like printers and storage space, and all kinds of files -- music, digital pictures, and documents. With up to 85Mbps data rates, you can run streaming video and VoIP applications. You can also share Internet connection by connection HP-8501 to the broadband router. The network connection has never been so easy!

Share


HARDWARE INTERFACE

MODULATION

POWER
  • 1 Power jack + 1 LAN 10/100Mbps Ethernet Port
  • LED Indicators: Power, Ethernet and Powerline
  • Supports QAM 256/64/16, DQPSK, ROBO, DBPSK, carrier Modulation
  • OFDM with patented signal processing techniques for high data reliability in noisy media conditions.
  • 100-230V

SECURITY & SUPPORT OS

FREQUENCY BAND
HUMIDITY
  • 56-bit DES Encryption
  • Utility supports Windows 98SE/ME/2000/XP/Vista
  • 4.3 ~ 20.9 MHz
  • 10-90% (Non-condensing)

FUNCTIONS

DIMENSION & TEMPERATURE

CERTIFICATIONS
  • Powerline Coverage Range up to 200 meters
  • Plug and Play
  • Integrated Quality of Service (QoS) : Prioritized random access Contention-free access Segment bursting
  • 89 x 68 x 47 mm
  • 0~55 Degree Celsius
  • CE, FCC

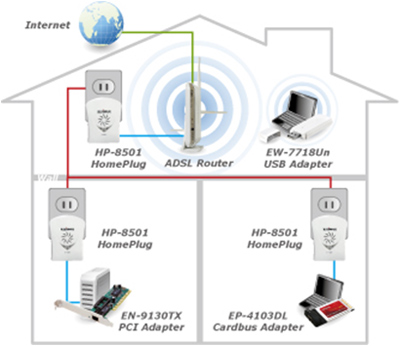

NETWORK SETUP DIAGRAM AND RELATED PRODUCTS

An example of how the HP-8501 can be setup :

  • Plug the HP-8501 to the power outlet and Connect the HP-8501 to your Broadband router.
  • Plug the other HP-8501 to the power outlet and Connect the HP-8501 to your computer's Ethernet port .





*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
