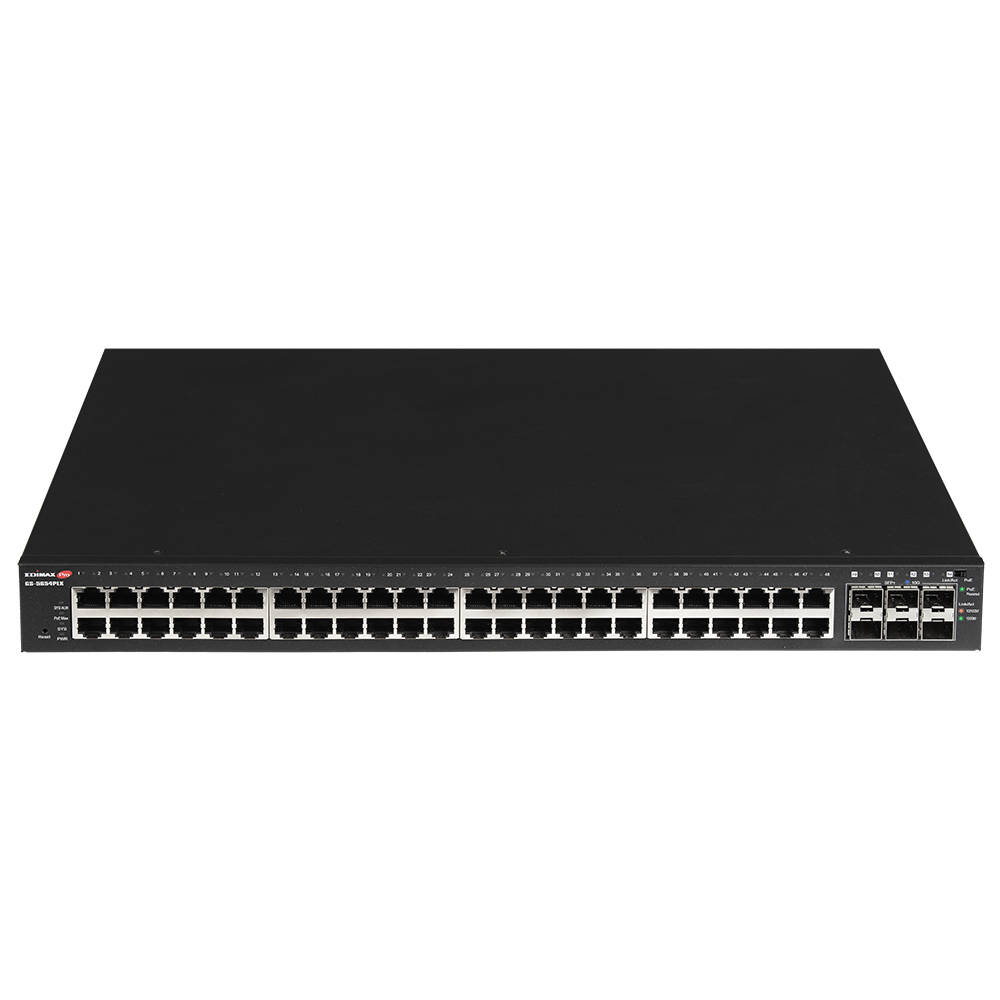

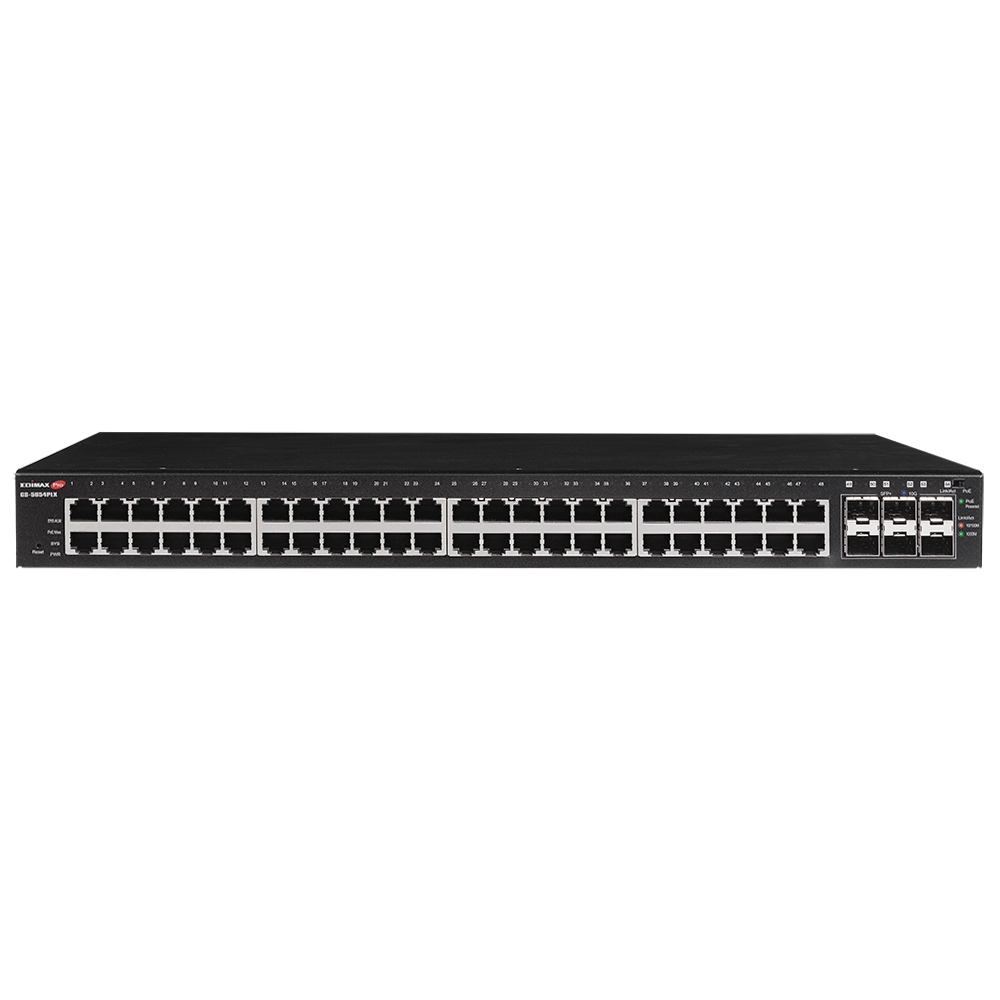

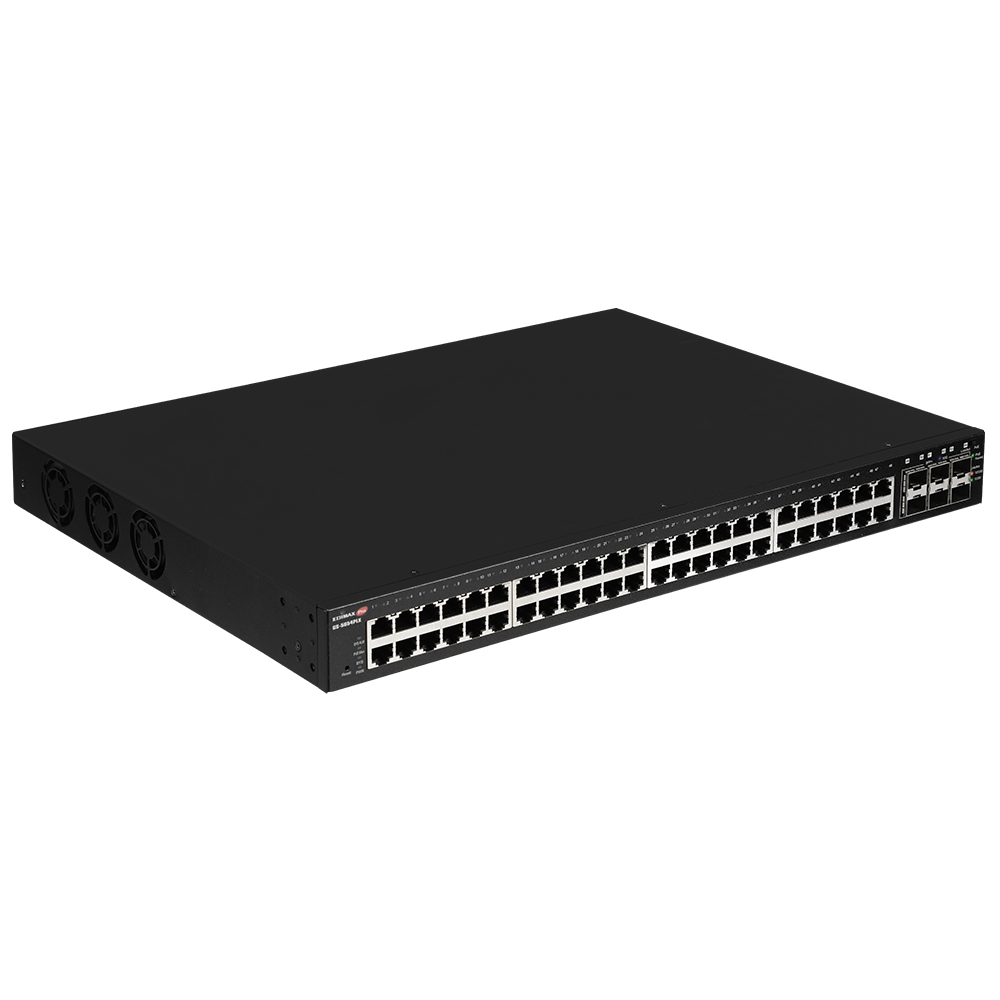

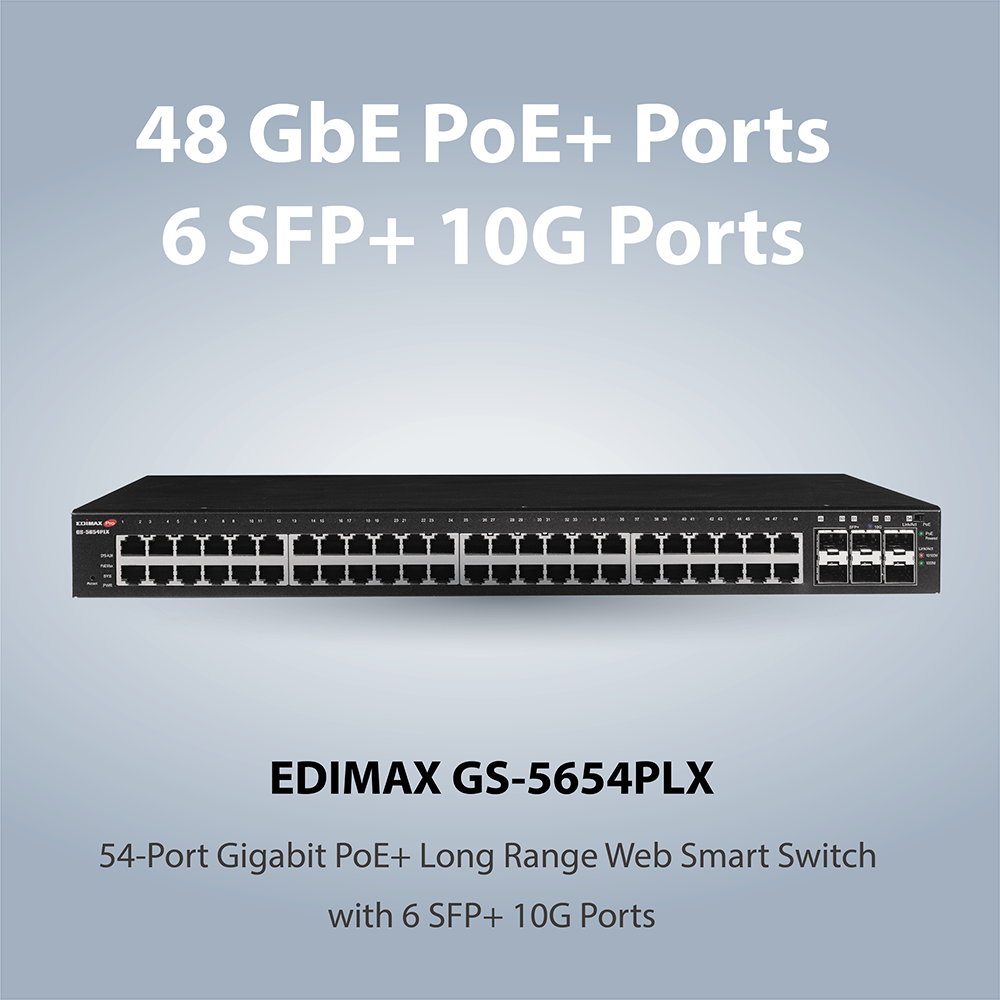

54-Port Gigabit PoE+ Long Range Web Smart Switch with 6 SFP+ 10G Ports

GS-5654PLX

Edimax Pro Logo
  • 48 Gigabit Ethernet PoE+ ports and 6 SFP+ 10 Gigabit uplink ports
  • IEEE 802.3af/at PoE/PoE+ compliant
  • Up to 30W per port (total power budget: 400W) for powering PoE-enabled devices
  • Power saving and noise reduction by Intelligent Thermal Controller to control speeds of each fan or turn on/off
  • Dual-firmware image for robust failover mechanisms
  • Guaranteed PoE long distance to 200 meters
  • Auto-detection of powered devices (PD) and power consumption levels
  • PoE powered devices (PD) alive check to enhance the reliability of the network
  • Power backfeed protection to avoid damaging the PoE ports.
  • DHCP snooping to protect the integrity of legitimate DHCP server and its operations
  • 216 Gbps Backplane bandwidth
  • 160.7Mpps (64-byte package size) Forwarding rate
  • 32K MAC address table and 12KB Jumbo frame
  • Supports SNMP v1/v2/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.


Empower your Enterprise with EDIMAX Intelligent Network Switches

The EDIMAX Pro GS-5654PLX long-range web-smart switch comes with a web-based user interface, 48 Gigabit PoE+ ports, and 6 SFP+ ports for 10 Gigabit uplinks. The Gigabit connectivity fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, IP surveillance, high volume transaction processing, large file transferring, and more.

Powerful 10GbE | 6 x 10GbE SFP+ Uplink

48 GbE ports for high-speed connections and up to 60 Gbps of fiber-optic uplinking capability allowing the GS-5654PLX to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environment for larger network access.

Let Safety be Known

The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.

Strong Ability to Proceed Data

With 216Gbps backplane bandwidth and a forwarding rate of 160.7Mpps, the GS-5654PLX provides maximum available bandwidth without delay.

Robust Failover Mechanisms

The GS-5654PLX has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.

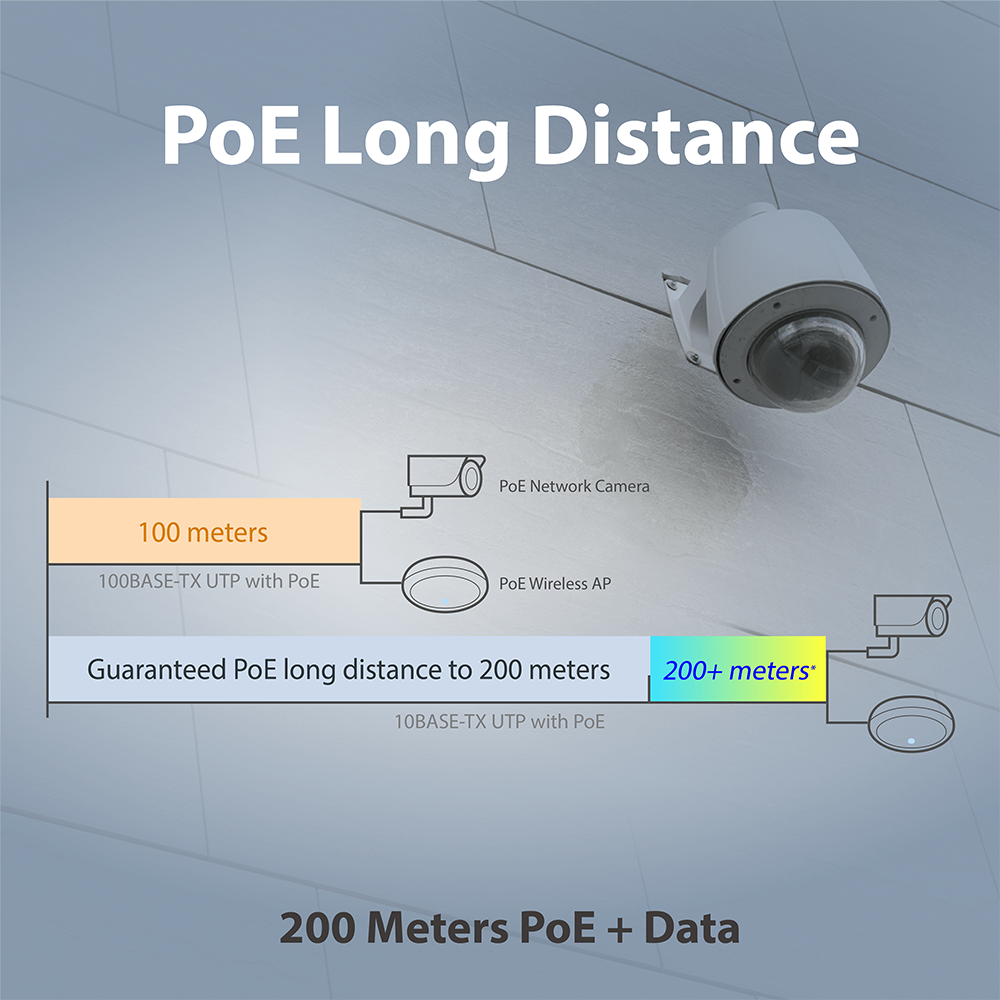

Guaranteed 200 Meters | Going the Distance

While general Ethernet switches have a distance restriction of 100 meters, the GS-5654PLX long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.




Intelligent Thermal Control | Power Saving Implementation

With a dedicated and intelligent microchip for system cooling control, the GS-5654PLX can measure and control fan speeds, also turn on/off each fan for power saving and noise reduction.

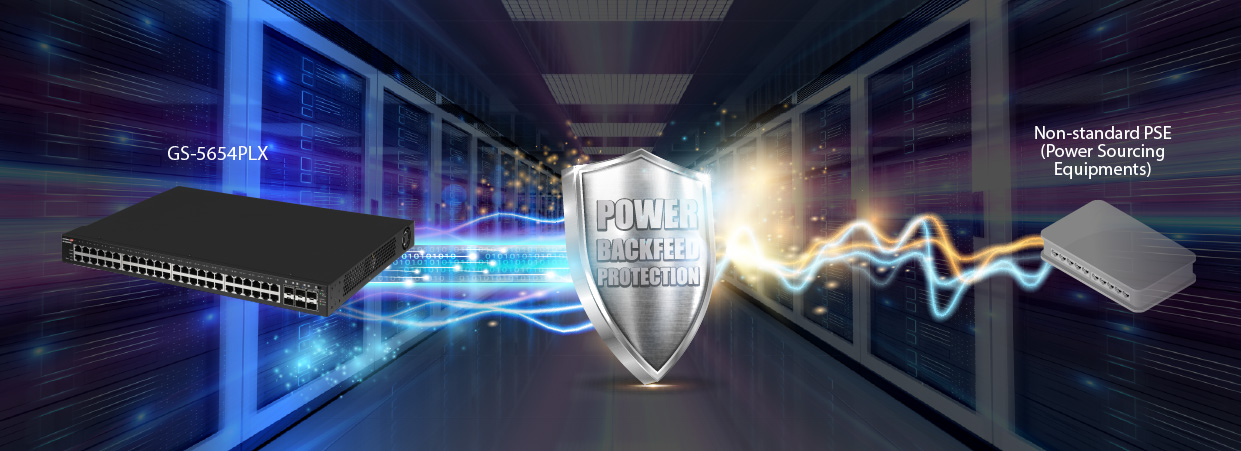

Safe Power Backfeed Protection

Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.

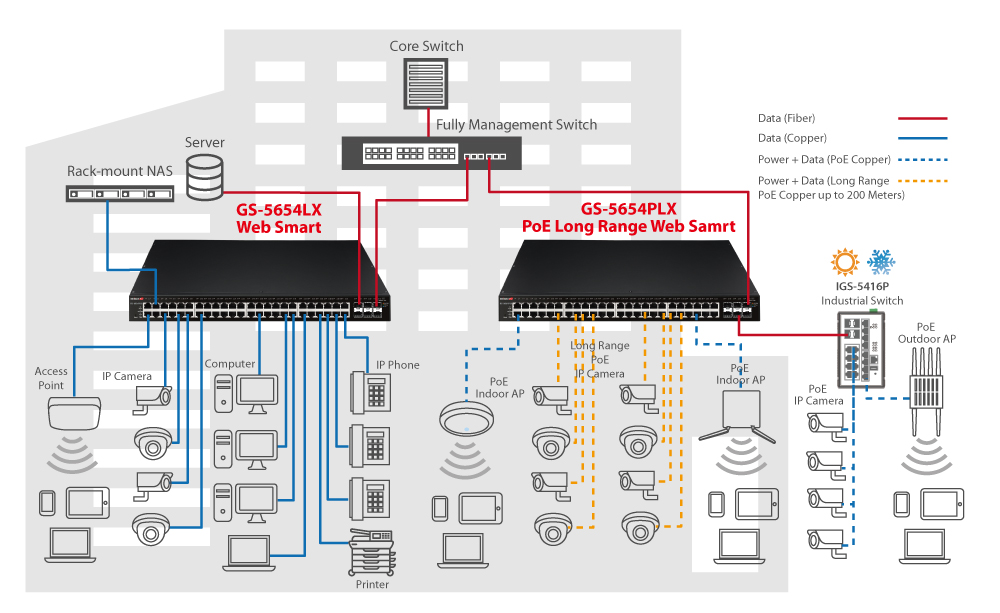

Networking Scenarios

Related Products



GS-5654PLX

54-Port Gigabit PoE+ Long Range Web Smart Switch with 6 SFP+ 10G Ports

GS-5654LX

54-Port Gigabit Long Range Web Smart Switch with 6 SFP+ 10G Ports

EA1-005D / EA1-020D

10GbE SFP+ DAC Direct Attach Cable



SPECIFICATIONS

HARDWARE
Ports 48 x RJ45 10/100/1000Base-T Gigabit ports
6 x SFP+ 10GBase-X 10 Gigabit uplinks ports

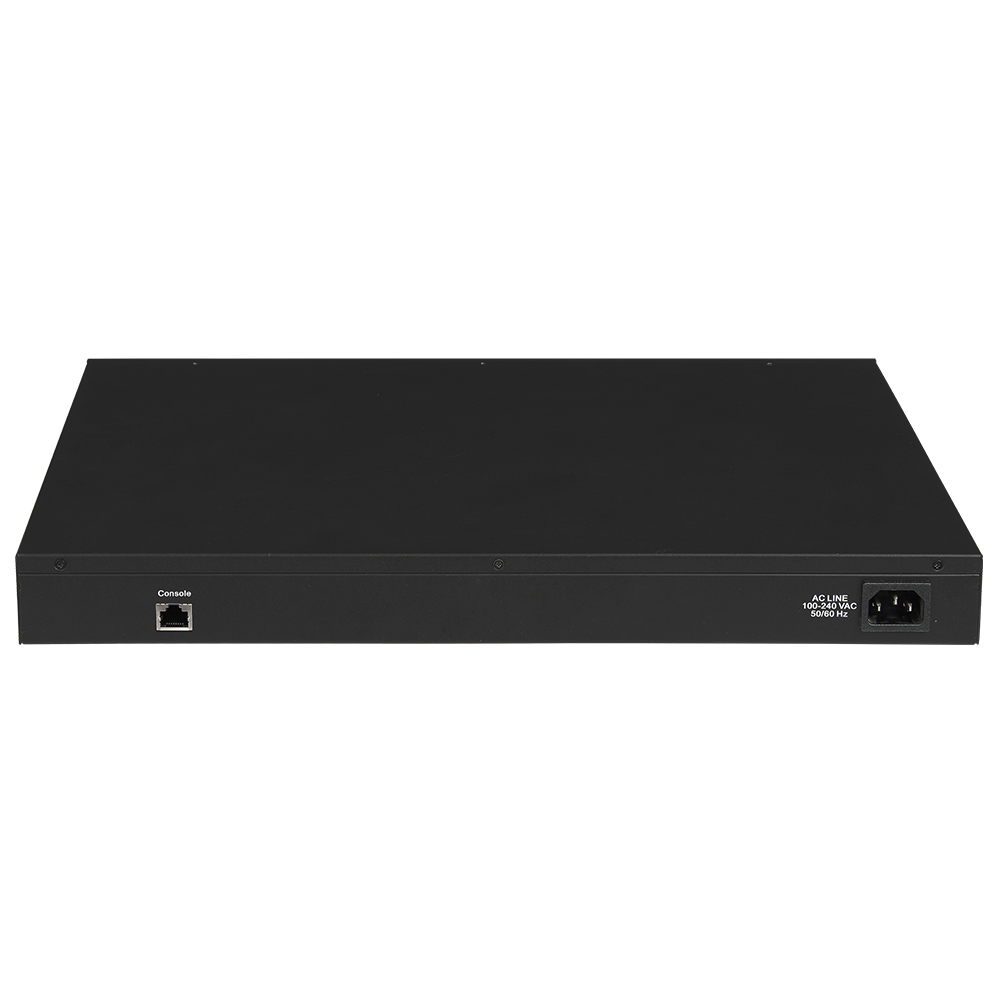

1 x RJ45 Console port
Buttons Reset button
LED Indicators Per Port: Link/Act,    PoE: ALM (Alarm), PoE/Max,  Per Unit: SYS (System), PWR (Power),  Slide Switch: Link/Act or PoE
Power Input 100-240V AC, 50-60 Hz, internal power supply
Total Power Budget 400W
Mounting Desktop / Rack-mount  (Rack-mount kit included)
Fan 4 x fan with Intelligent Thermal Controller
Dimensions (L x W x H) 441(W) x 330(D) x 45(H) mm
Weight 5.6kg
PERFORMANCE
Switching Capacity 216Gbps
MAC Address 32K
Jumbo Frames 12K Bytes
Buffer Memory 16Mb
Filtering / Forwarding Rates Max. 160.7Mpps (64-byte package size)
10000Mbps port - 14,880,000pps
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
POWER OVER ETHERNET
Standard IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output Up to 30W per port
Pin Assignment 1/2(+), 3/6(-) End-Span (mode A)
Management PoE status, PoE scheduling on/off, PoE PD alive check, per port priority setting
PoE Long Range Guaranteed PoE long distance to 200 meters at 10Mbps
Power Backfeed Protection Built-in
SMART FEATURES
Quality of Service (QoS) Rate limiting on packets sent and received by an interface
Eight queues on each port
WRR, SP, WRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Rate limiting in each queue and traffic shaping on ports
Class of Service (CoS) IEEE 802.1p class of service (SPQ, WRR)
Port-based CoS
IP TOS precedence
802.1p VLAN Information based CoS
DSCP based CoS
TCP/UDP Based CoS
Spanning Tree IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
VLAN Up to 256 VLANs and 4096 VLAN IDs
802.1Q tag-based VLAN
Port-based VLAN
Surveillance VLAN
Voice VLAN
MAC VLAN
GVRP
IPV6 IPv6 over Ethernet (RFC 2464)
Dual-stack (RFC 4213)
ICMPv6 (RFC 4884)
Neighbor discovery (RFC 4861)
Auto configuration
Static IPv6 address and prefix length
Static IPv6 default gateway
IPv6 duplicate address detection
Port Trunking IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groups
IGMP Snooping IGMP v1/v2/v3 snooping
Block unknown multicast traffic
Port Mirroring Port mirroring both on ingress and egress traffic
Security RADIUS
AAA
Management Access
Authentication Manager
Port Security
Protected Port
Storm Control
DoS
Dynamic ARP Inspection
DHCP Snooping
IP Source Guard
Management User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Syslog: Support event log, alarm log and security log
Dual-firmware image for robust failover mechanisms
ENVIRONMENT
Temperature Operating Temperature: 0~50°C (32~122°F)
Storage Temperature: -40~70°C (-40~158°F)
Humidity (Non-condensing) Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 10~90% (NonCondensing)
STANDARDS COMPLIANCE
Standards IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE802.3ae 10GBase-X 10 Gigabit Ethernet
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3x Full-duplex and flow control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1x Port-based Network Access Control (PNAC)
IEEE 802.1Q Virtual LANs VLANs
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet
Certifications FCC, CE
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
