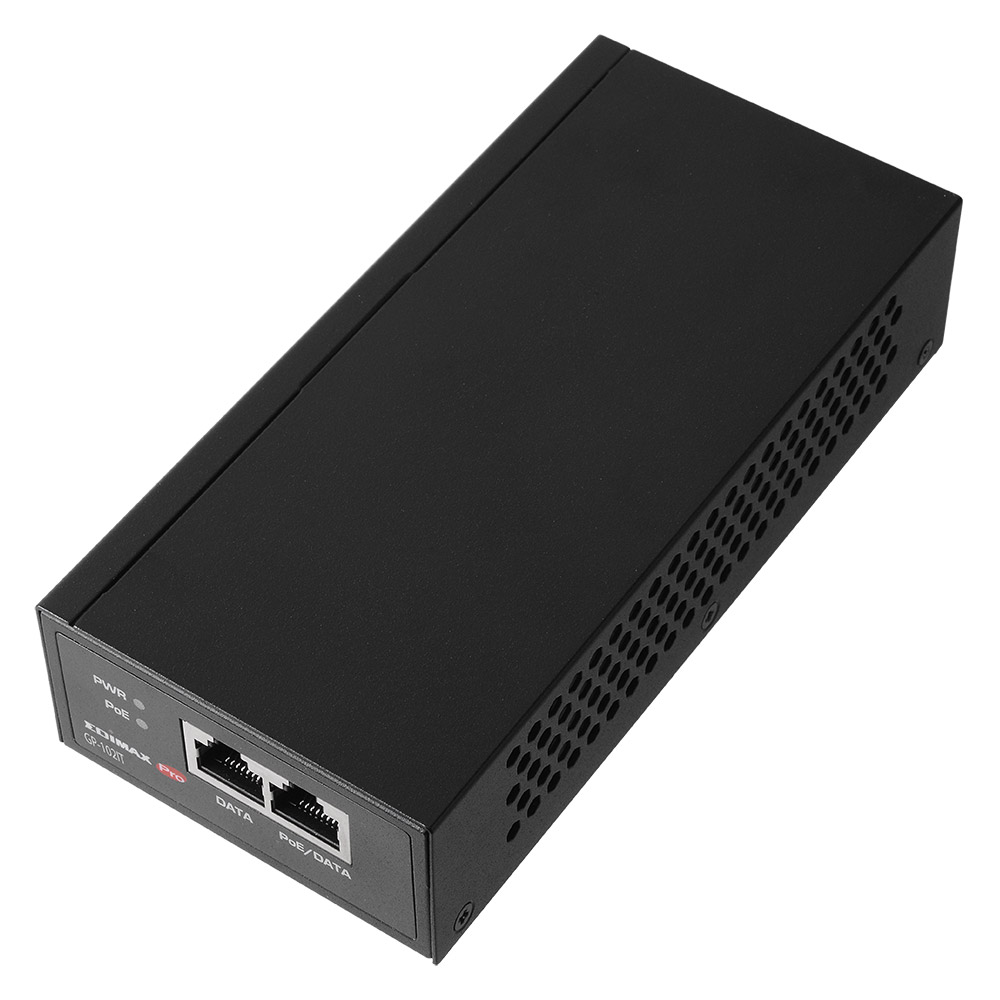

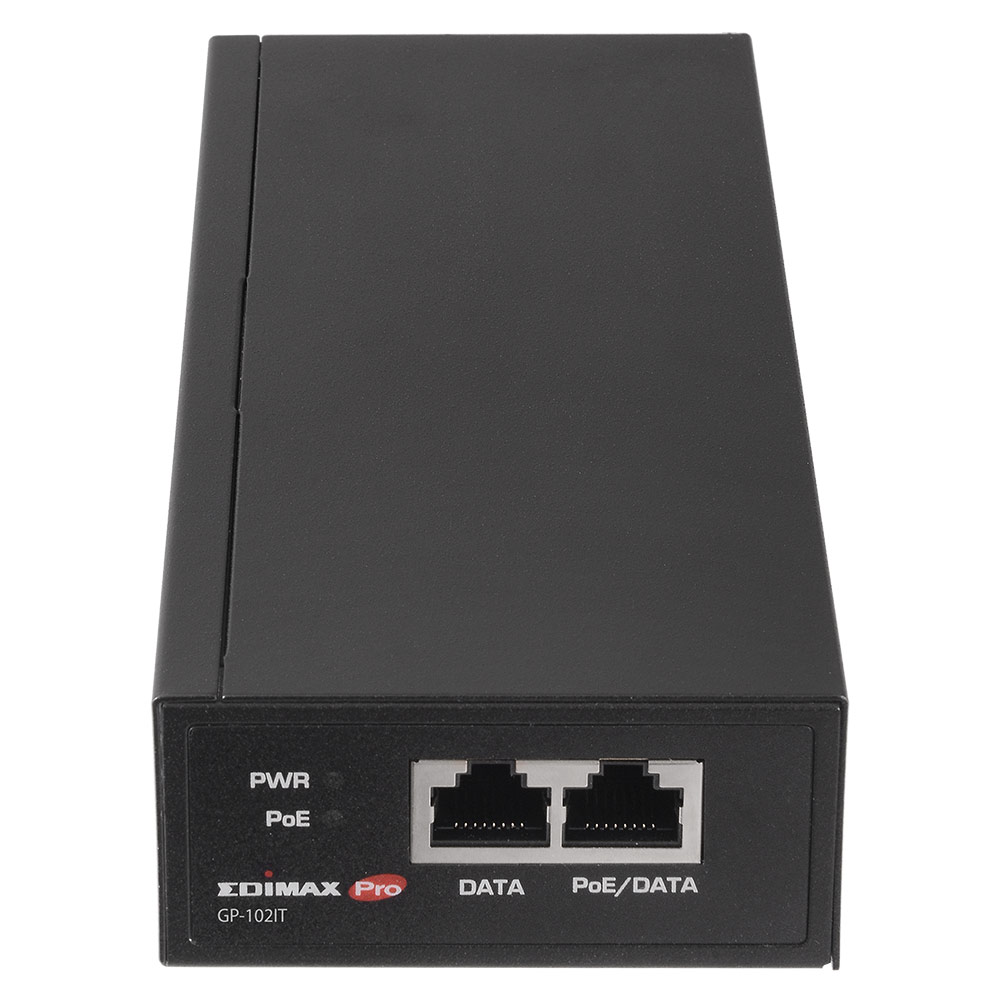

IEEE 802.3bt Gigabit 60W PoE++ Injector

GP-102IT

  • Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt Power over Ethernet (PoE) Standards.
  • Adds PoE capability to a non-PoE Ethernet switch or router.
  • Gigabit LAN ports provide high-speed connectivity.
  • Supports PoE Powered Device (PD) up to 60W.
  • PoE short circuit protection to safeguard network devices.
  • Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable.
  • Reduces installation and equipment costs.
  • Easy plug-and-play desktop or wall-mounted installation.


Convert Non-PoE Gigabit to PoE++

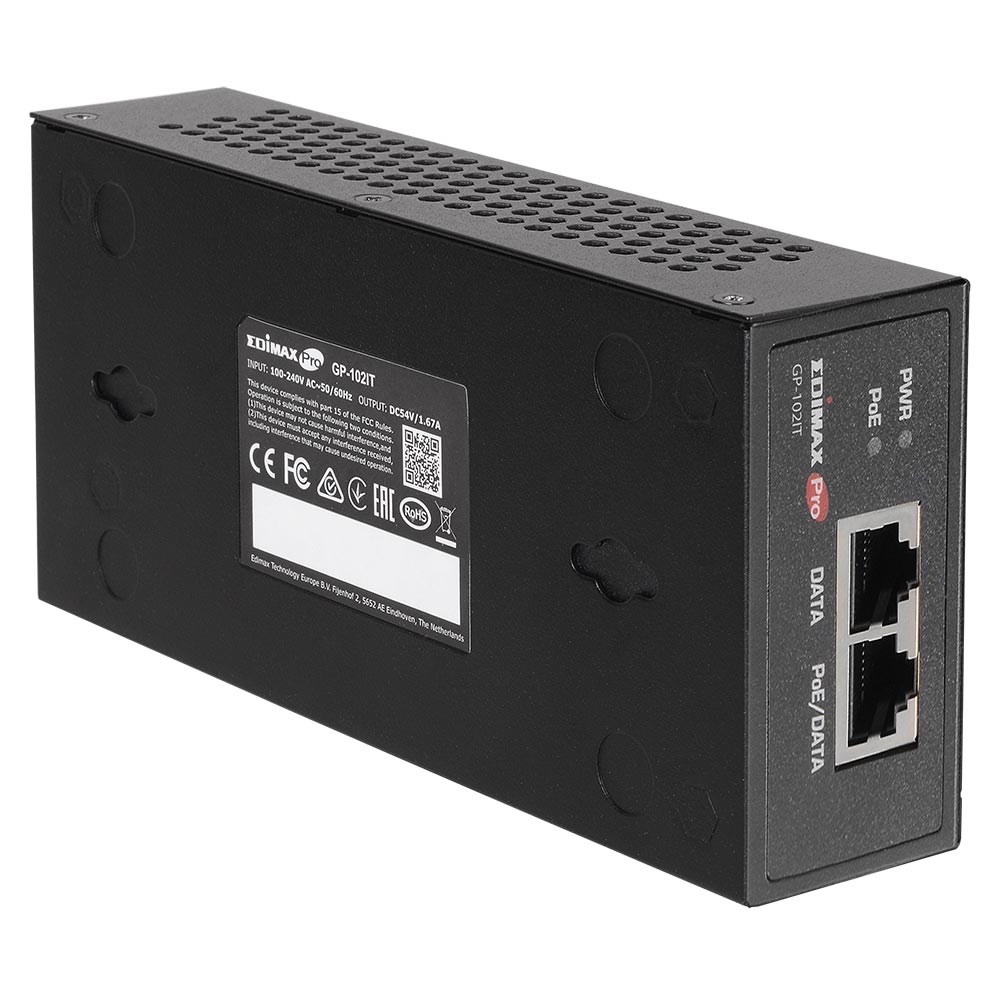

Plug-and-Play, Flexible Wall-Mount Installation

IEEE 802.3bt Gigabit 60W PoE++ Injector GP-102IT

Cost Efficiency with PoE++ Supported up to 60W

Adding the capability of IEEE 802.3af/at/bt Power over Ethernet to a non-PoE Ethernet switch or router to supply the transmission both power up to 60W and data at the same time to the PoE-enabled devices where power outlet is unavailable.

Easy Plug & Play, Flexible Wall-Mount

Just plug the Ethernet enabled device into the injector. No additional cables, software setup or configuration required.

Reliable Power Supply

Featuring PoE short circuit protection and over circuit protection to safeguard network devices and protect against damage.

PoE Application Scenario

With the PoE++ Injector, the data and power are transmitted to the remote IEEE 802.3af/at/bt compliant products located without power outlet through the Ethernet cabling.

Edimax Pro GP-102IT IEEE 802.3bt Gigabit 60W PoE++ Injector for IP Surveillance, PoE IP Camera

IP Surveillance

IP surveillance camera is now ubiquitous PoE supported with only one LAN cable which enables fast deployment and easy repositioning for home, office and business.

Edimax Pro GP-102IT IEEE 802.3bt Gigabit 60W PoE++ Injector for Wi-Fi coverage, PoE Access Point

Wi-Fi Coverage

Access points, installed on a wall or ceiling where AC outlets are unreachable, are commonly PoE compatible to allow flexible deployment for best Wi-Fi coverage.

Edimax Pro GP-102IT IEEE 802.3bt Gigabit 60W PoE++ Injector for  VoIP conference, VoIP phone

VoIP Conference

For the VoIP phones, there’s no need to support desktop phones with additional power supply as power is transmitted along with data through PoE technology.

Edimax Pro GP-102IT IEEE 802.3bt Gigabit 60W PoE++ Injector for other PoE devices, RFID readers, access controls, thin clients, alarms or sensors

Other PoE Devices

Other PoE-enabled devices such as RFID readers, access controls, thin clients, alarms or sensors, benefits with easy and cost saving installation even when it is away from AC outlets.

Power Your PoE Devices

Complies with IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) Standards and supports PoE PD (Power Device) up to 60W.

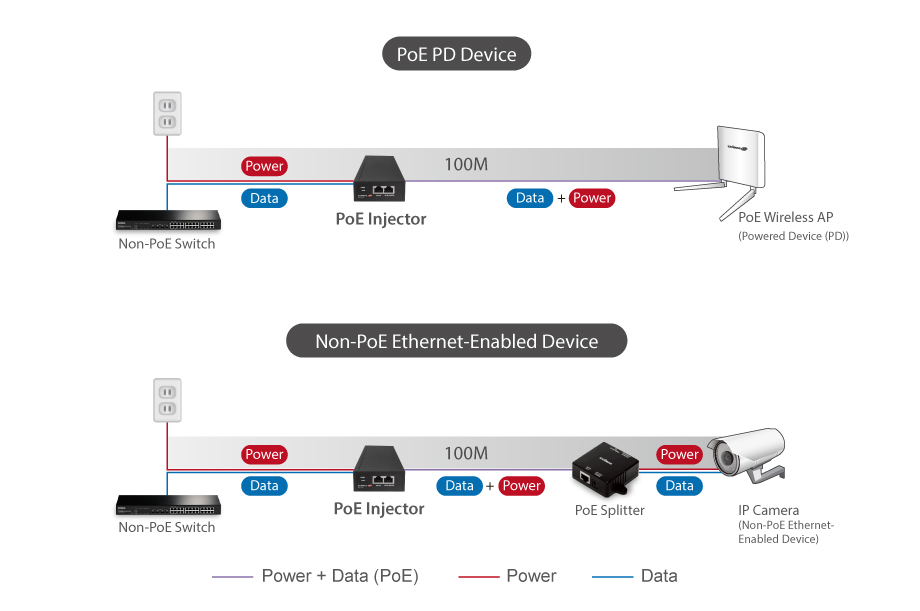

APPLICATION DIAGRAM





SPECIFICATIONS

HARDWARE ​
Ports 1 x RJ-45 10/100/1000Base-T input ports
1 x RJ-45 10/100/1000Base-T PoE output ports
LED Indicators AC Power (PWR)
PoE Power
Power Input  100-240V AC, 50-60Hz, 1.5A
Mounting Desktop/Wall
Housing Metal
Fan  Fanless
Dimension   73(W) x 154(D) x 36(H)mm
Weight  568g
POWER OVER ETHERNET
Standard IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
IEEE 802.3bt (PoE++)
Power Output DC 54V/1.67A, up to 60W
Pin Assignment Pins 1,2, 4, 5 (+),  Pins 3, 6, 7,8 (-)
Output Power Voltage: 54V DC
Short Circuit Protection Yes
Over Circuit Protection Yes
PoE PD Auto Detection Yes
OTHERS
Standard IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3af Power Over Ethernet (PoE)
IEEE 802.3at Power Over Ethernet Plus (PoE+)
IEEE 802.3bt 4-Pair Power Over Ethernet Type 3
Certification CE, FCC
Environmental Condition Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -4~158°F (-20~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
Package Content Injector
Quick Installation Guide
Power Cord
Rubbert Pads
​Screws
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
