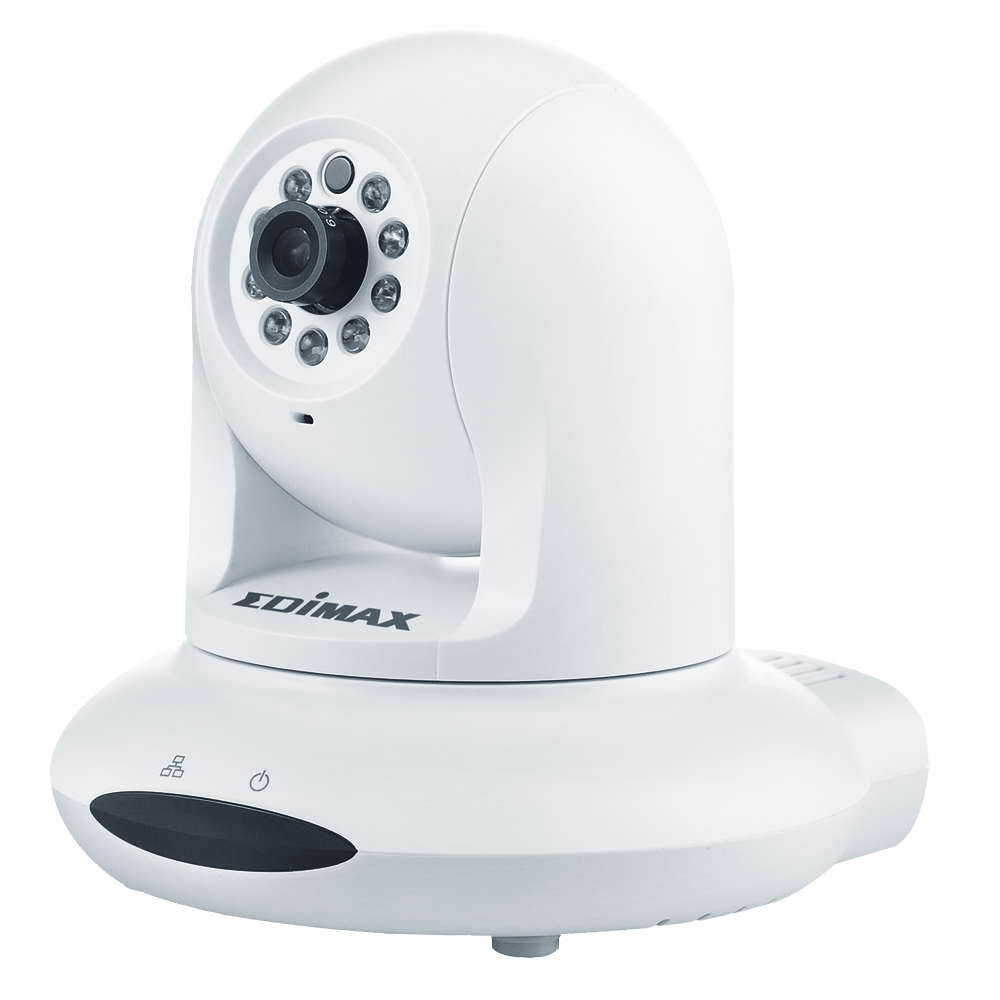

3Mpx PoE Day & Night PT Network Camera

PT-31E

  • 5 megapixel CMOS sensor
  • Motorized pan and tilt
  • Night vision with built-in IR LED (up to 10 meters)
  • QXGA resolution at 20fps, 1080p resolution (full HD) at real-time 30fps
  • H.264, MPEG-4 & M-JPEG multi-stream output
  • Simultaneous live monitoring and high resolution recording
  • Multi-area motion detection
  • Support IEEE802.3af Power-over-Ethernet (PoE) standard
  • SD/SDHC memory card slot for local storage
  • 2-way audio support


3Mpx.jpg H.264.jpg MPEG-4.jpg M-JPEG.jpg 2-Way_Audio.jpg 32CH-Viewer.jpg PoE.jpg P&T.jpg


The Edimax PT‐31E is the world’s first 3 megapixel pan & tilt network camera. Its ability to pan 350 degrees, tilt 120 degrees, and record 2048 x 1536 videos at 20 frames per second allow the user to capture detailed videos in an area many times larger than conventional network cameras.

With Edimax’s superior H.264 video compression technology, the PT‐31E can create high quality videos with small file sizes, allowing for optimized network bandwidth efficiency. Its features night vision for crisp and clear videos images in low light situations, and its PoE Ethernet port allows power and network data to be transmitted over the same Ethernet cable.

The PT-31E comes with EdiView32 software - a 32-channel viewing, recording and management program that allows for simultaneous live monitoring and high-resolution video recording. Additionally, with the Edisecurity Smartphone Viewer application users will be able to see images from the PT-31E from any Internet connection, anywhere in the world.

3 Megapixel Video
The Edimax PT‐31E is built to produce high quality 3 megapixel videos that capture every detail in the monitored area. Users can set the camera to record Full HD 1080p (1920 x 1080) videos at 30 frames per second, or even QXGA (2048 x 1536) videos at 20 frames per second. Edimax’s superior H.264 video compression technology allows the PT‐31E to create high quality videos with small file sizes, allowing for optimized network bandwidth efficiency.

Motorized Pan & Tilt
With motorized pan & tilt, the Edimax PT‐31E gives you a wider viewing angle than the average network camera. The PT‐31E can pan 350 degrees and tilt 120 degrees, allowing you to monitor a large area with a single camera.










APPLICATION DIAGRAM



IP_Surveillance_Application.jpg​​



SPECIFICATIONS

Image Sensor

Type

1/2.5" CMOS

Lens

Focal Length / F-Number

Fixed Lens, f = 6.0, F1.8

Day Night Operation / IR Distance

IR 10 Meters

Min. Illumination

1 Lux at F1.2

Video Compression

H.264 / MPEG-4 / M-JPEG

Max Resolution

QXGA (2048 x1536) @ 20 FPS

Special Features

Event Trigger

Motion Detection, Alarm, Schedule

Digital In / Out Points

2 In / 1 Out

Digital Zoom

10x

RS-485 Support

Yes

Smartphone Monitoring

Free iPhone, Android App

WDR Support

-

Storage

1 SD/SDHC Card Slot, up to 32GB

Audio Interface

1 Built-In Microphone / 1 In / 1 Out

Network

10BASE-T / 100BASE-TX

Power Supply

DC 12V / PoE (IEEE 802.3af)

Operating Temperature

0°C - 50°C

Dimensions (mm)

122.6(H) x 116.4(W) x 108(L)

Weigh (g)

305

Weather-proof

-

Vandal-proof

-

Certification (EMI, IP, RoHS)

CE / FCC / RoHS

ONVIF Support

v 1.02




PACKAGE CONTENTS
  • Network camera (1 pcs)
  • Power adapter (1 pcs)
  • Ethernet cable (1 pcs)
  • Mounting kit (1 pcs)
  • CD with utility software and user manual (1 pcs)
  • Quick installation guide (1 pcs)
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
