1MP Indoor Mini Dome Network Camera

MD-111E

  • Palm-sized and stylish design with unique interior IR performance and excellent reliability
  • Take apart the cover with only one finger
  • Manually pan/tilt range:  pan 200° tilt 70°
  • H.264/MPEG4/M-JPEG codec
  • WXGA (1280 x 800) @30FPS
  • Supports IEEE802.3af Power over Ethernet (PoE) standard
  • 19 IR LEDs with mechanical ICR and auto light sensor for day and night monitoring


The palm-sized Edimax 1MP Indoor Mini Dome is the smallest dome network camera on the market. It is specifically designed for commercial shopping boutiques and business offices. With a φ92mm x 63mm classic white housing it blends into the surroundings without any sense of threat to customers or employees provides comprehensive protection and recording coverage.



Mini Palm-Size Design
Stylish, mini palm-sized with a φ92mm x 63mm classic white housing it blends into the surroundings without any sense of threat to customers or employees.


Edimax MD-111E 1MP Indoor Mini Dome Network Camera, Mimi Palm-Size















Day & Night Monitoring
19 infrared LEDs with mechanical ICR and auto light sensor for day and night monitoring.




Edimax MD-111E 1MP Indoor Mini Dome Network Camera, Day & Nigh Monitoring.png












Power over Ethernet
Designed for professional indoor surveillance and security applications and compliant with 802.3af PoE for power and data transmission over a single Ethernet cable.




Edimax PMD-111E 1MP Indoor Mini Dome Network Camera, Power over Ethernet












Free 32-Channel Viewer Software
The Edimax network camera comes with EdiView32 software, a 32-channel viewing, recording and management program that allows for simultaneous live monitoring and high-resolution video recording.


Edimax MD-111E 1MP Indoor Mini Dome Network Camera, Free 32-Channel Viewer Software

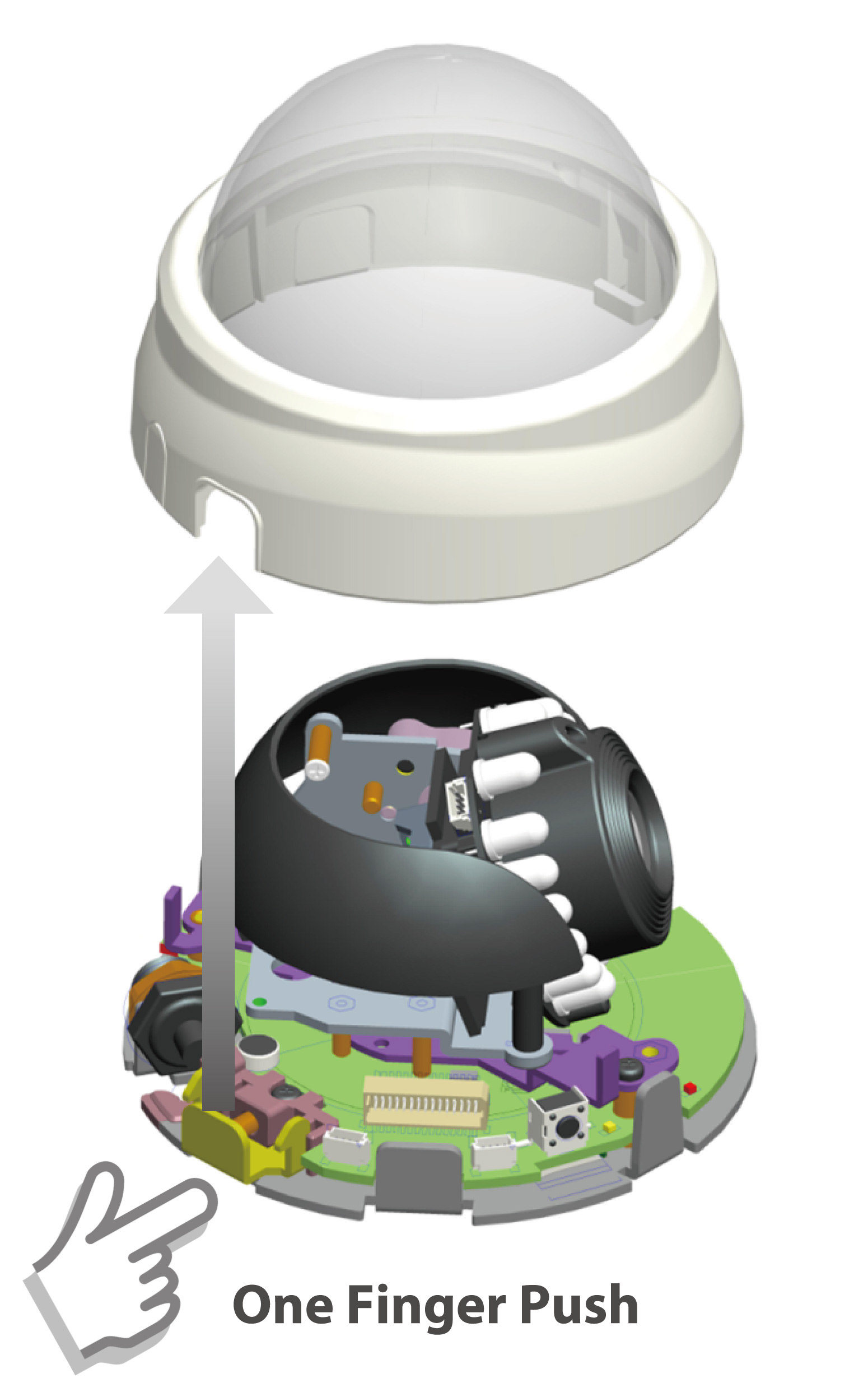

Easy Installation
Designed can be opened by removing the cover with one finger.


Edimax MD-111E 1MP Indoor Mini Dome Network Camera, Mini_dome_Easy_Installation.jpg











APPLICATION DIAGRAM



Edimax MD-111E 1MP Indoor Mini Dome Network Camera, IP Surveillance Application










DIMENSIONS



Edimax MD-111E 1MP Indoor Mini Dome Network Camera, Mini dome Dimensions





SPECIFICATIONS

System

RAM: 2GB DDR
ROM: 16MB Flash ROM

Image Sensor

1/4" CMOS

Lens

Focal Length / F-Number

Fixed 4.0mm(F2.0)

View Angle

62°

Day Night Operation / IR Distance

Mechanical ICR/10~12M

Min. Illumination

1.3 Lux at F2.0

Pan / Tilt / Rotate

Manually Pan : 200°, Tilt : 70°

Video Compression

H.264 / MPEG-4 / M-JPEG

Max Resolution

WXGA (1280 x 800) @ 30 FPS

Special Features

Event Trigger

Motion Detection

Digital In / Out Points

-

Digital Zoom

Yes

WDR

-

Smartphone Monitoring

-

Storage

Micro SD Card slot

Audio Interface

Built-in Mic

Network

10BASE-T / 100BASE-TX

Power Supply

PoE (IEEE 802.3af)

Operating Temperature

0°C - 40°C

Dimensions (mm)

ø 92(D) x 63(H)

Weigh (g)

276

Weather-proof

-

Vandal-proof

-

Certification (EMI, IP, RoHS)

CE / FCC / RoHS

ONVIF Support

Yes




PACKAGE CONTENTS

  • Network Camera (Wired or PoE)
  • Software CD
  • Power adapter
  • Quick installation guide
  • Screws
  • RJ45 Female




DIMENSIONS



Edimax MD-111E 1MP Indoor Mini Dome Network Camera, Mini dome Dimensions
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
