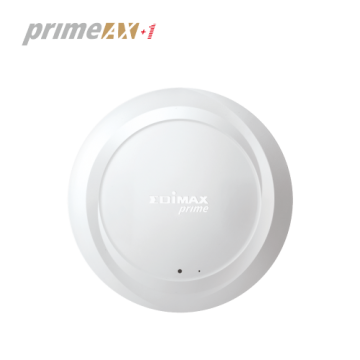

Add-on Access Point for PrimeAX 1-2-3 Wi-Fi 6 Smart Managed Wi-Fi System

PrimeAX +1

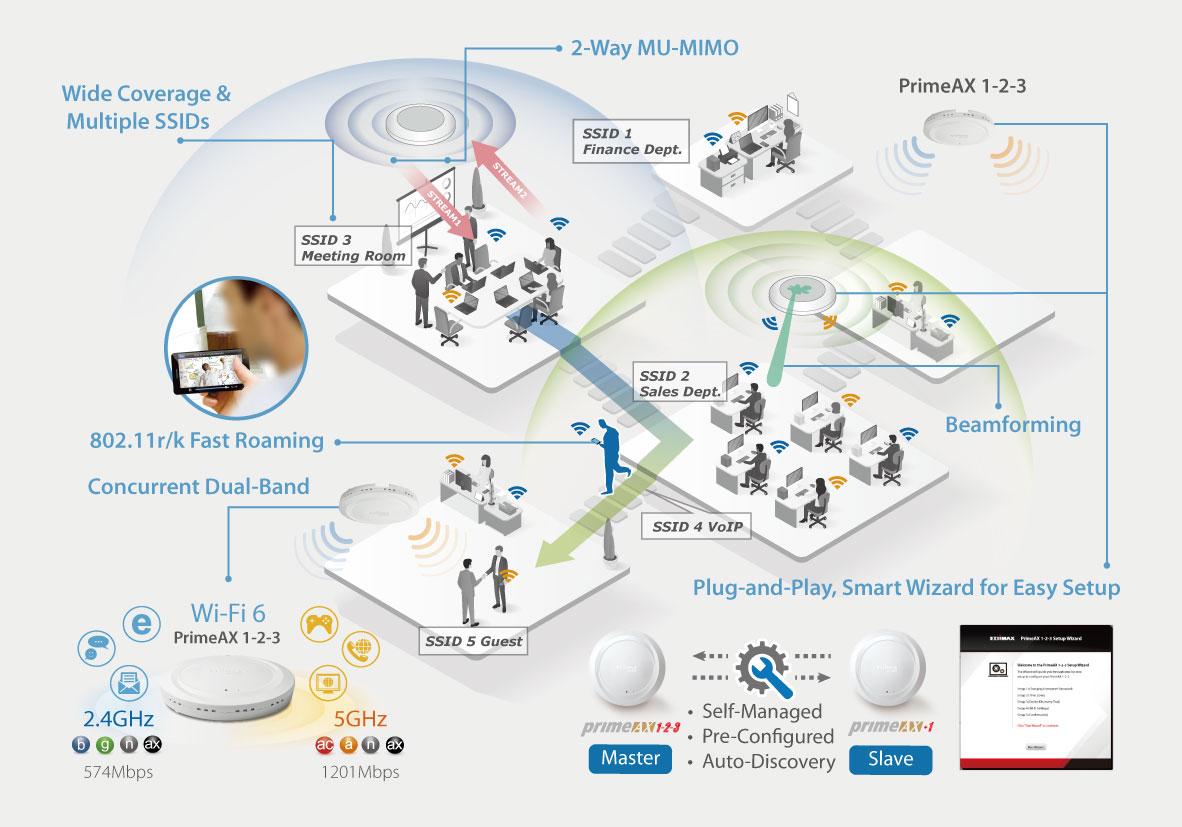

  • Plug-and-Play, Self-Managed, Pre-Configured Wi-Fi System: Pre-configured AP with self-managed functions for easy play-and-play
  • Smart Wizard, Easy to Setup: Follow the smart wizard that provides you with step-by-step guide, setting up your new network as easy as 5 steps
  • AX Technology: BSS coloring, DL/UL OFDMA, DL/UL MU-MIMO, TWT
  • AX1800 Wi-Fi 6 High-Speed: Max Wi-Fi speed up to 1800Mbps (2.4GHz at 574Mbps and 5GHz at 1201Mbps)
  • High-Performance Wi-Fi: Beamforming, AirTime Fairness, Band Steering and 802.11r/k Fast Roaming for the best Wi-Fi performance
  • Expandable Wi-Fi System: Expandable with PrimeAX +1 Add-on AP, up to a total of 16 APs
  • Business Environments: Suitable for a wide range of commercial applications such as offices, hotels, meeting rooms, schools, campuses, resorts, retail and more


The Latest and Greatest Wi-Fi 6​

Reap the benefits of the latest Wi-Fi 6 technology that covers high-density areas with steady performance. In addition, the specially designed PrimeAX +1, you will find the setup and management a walk in the park.



Easy Setup and Management Like Nothing Else

Setting up and managing the master and slave AP’s has never been this easy. The PrimeAX +1 is designed from the beginning for users who want to get things done with minimal hassle.



OFDMA and MU-MIMO Technology

Pack your data smartly and send them out to multiple devices at the same time. Have this in your home or office and cut down the complaints about receiving data across the board.

The AX Wi-Fi 6 Speed That Everyone Wants

Want to catch up with the trend? A lot of devices are equipped with the latest AX Wi-Fi technology, enjoy the speed performance boost by upgrading your Wi-Fi with PrimeAX 1-2-3 & PrimeAX +1.

The Latest Tech for a Smooth Connectivity

Device power saving, upgraded security, smart data management and more. All the latest technology sure makes your Wi-Fi environment a high-performance and stable place to be.



It is OK to Move Around

Experience seamless connectivity while you move around places. Having the PrimeAX +1 gives you the ability to expand and cover every inch of area that you desire, with the addition of providing you data with just a single network.

Keep it Clean and Tidy

With the ability to mount onto the ceiling makes it that much easier to install and expand. Furthermore, not having things in the way of weakening the signal is always a plus.

Expand by Purpose

The PrimeAX +1 is designed to expand and meet different demanding environments. Suitable for an array of purposes with a robust connection setup.

Healthcare

Reliable for demanding situations

Restaurant

Small Spaces with high-density connections

Shopping Mall

Large areas with multiple devices

Office

Suitable connections for wireless high-speed

Expandable Wi-Fi System

PrimeAX +1 includes 1 AP and is an add-on to PrimeAX 1-2-3, up to a total of 16 APs.

PrimeAX 1-2-3 Series

PrimeAX 1-2-3

AX1800 Wi-Fi 6 Smart Managed Wi-Fi System

PrimeAX +1

Add-on Access Point for PrimeAX 1-2-3



SPECIFICATIONS

HARDWARE
Interface 1 x RJ45 10/100/1000Mbps Ethernet Port (PoE in)
Button Reset button
LED Indicator Power LED
Diag LED
Antenna Type: 2 x Built-In PIFA (2 dual-band antenna)
Gain: 2.2dBi (2.4GHz), 2.9dBi (5GHz) Max.
Power DC: 12V / 1A
802.3at (PoE Injector Optional)
Power Consumption 12W (Full Loading)
Power Saving 802.3az
Mounting Ceiling
Housing UL94-5VB Flammability Rating
Dimensions 176.29 (D) x 32.75 (H) mm
Weight 372g
WIRELESS
Standard 802.11 a/ b/ g/ n/ ac/ ax Concurrent Dual-Band
Frequency Band •Radio Ⅰ: 802.11b/g/n/ax 2.412~2.484(GHz)
•Radio Ⅱ: 802.11a/n/ac/ax 5.15~5.25(GHz), 5.25~5.35(GHz), 5.470~5.725(GHz)
(The supported frequency band is restricted by local regulations.)
Maximum Data Speed 2.4GHz: 574Mbps
5GHz: 1201Mbps
Operation Channels •2.4GHz :
US/Canada 1-11; 2.412 ~ 2.462GHz
Europe 1-13; 2.412 ~ 2.472GHz

•5GHz : Country dependent for the following ranges:
US/Canada:
Band 1: 36, 40, 44, 48; 5.180 ~ 5.240GHz
Band 4:149, 153, 157, 161, 165; 5.745 ~ 5.825GHz
Europe:
Band 1: 36, 40, 44, 48; 5.180 ~ 5.240GHz
Maximum Transmit Power •802.11b
   17dBm@1Mbps,
   17dBm@11Mbps
•802.11g

   17dBm@6Mbps,
   15
dBm@54Mbps
•802.11n (2.4G)
   17dBm@MCS0(HT20),
   15dBm@MCS7(HT20),
   12dBm@MCS9(HT40)
•802.11ax (2.4G)
   9dBm@MCS11 (HT40),
   15dBm@MCS4/12,
   15dBm@MCS5/13,
   14dBm@MCS6/14,
   14dBm@MCS7/15
•802.11a
   17dBm@6Mbps,
   16dBm@54Mbps
•802.11n(5G)
   17dBm@MCS0 (HT20),
   15dBm@MCS7 (HT20)
•802.11ac
   17dBm@MCS0 (VHT80),
   15dBm@MCS7 (VHT80),
​   14dBm@MCS9 (VHT80)
•802.11ax (5G)
   10dBm@MCS11 (HT80)
(CE: 20dBm or lower, FCC: 23dBm or lower)
Receiver Sensitivity •802.11b :
≤-88dBm@1Mbps ,
≤-86dBm@11Mbps
•802.11g :
≤-88dBm@6Mbps ,
≤-71dBm@54Mbps
•802.11gn (2.4G) :
≤-88dBm@MCS0 ,
≤-68dBm@MCS7m ,
≤-60dBm@MCS9
•802.11ax (2.4G) :
≤-53dBm@MCS11
•802.11a:
≤-87dBm@6Mbp ,
≤-68dBm@54Mbps
•802.11n(5G) :
≤-87dBm@MCS0 ,
≤-68dBm@MCS7
•802.11ac :
≤ -56dBm@MCS9
•802.11a (5G) :
≤ -50dBm@MCS11
Concurrent Clients Up to 128 Per Radio
No. of SSIDs 2 Default SSIDs (2.4GHz and 5GHz), Total: 16 (2.4GHz) + 16 (5GHz)
802.11 r/k Fast Roaming Y
Band Steering Y
AirTime Fariness Y
Beamforming Y
SOFTWARE
Wireless Mode AP / WDS AP / WDS Bridge
802.1q VLAN Y (VID = 1-4095)
Spanning Tree RSTP
QoS WMM (802.11e)
Max associated station number
Pass-Through IPv6 and VPN (PPTP, L2TP/IPsec)
DSCP (802.1p) Y
Multicast Rate up to 54Mbps Y
SECURITY
Encryption WEP / WPA2-AES / WPA3
Wireless L2 Isolation Y
Station Isolation Y
IEEE 802.1x Authenticator Y
EAP Authentication PEAP
Hidden SSID Y
MAC Address Filter Y
Wireless STA Y
Rogue AP Detection (w/ NMS) Y
MANAGEMENT
Deployment Slave (Managed AP mode): Managed by EDIMAX PrimeAX 1-2-3 Master AP and APC500
Configuration HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH)
RADIUS Server Built-In
Auto-Channel Y
Private MIB Y
OTHERS
Certification CE, FCC
Environmental Condition Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 90% or Less
Package Content 1 x PrimeAX +1 AX1800 Ceiling Mount PoE Access Point (Slave)
1 x Ceiling-Mount & T-rail Mount Bracket Kit
1 x Ethernet Cable
Quick Installation Guide
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
