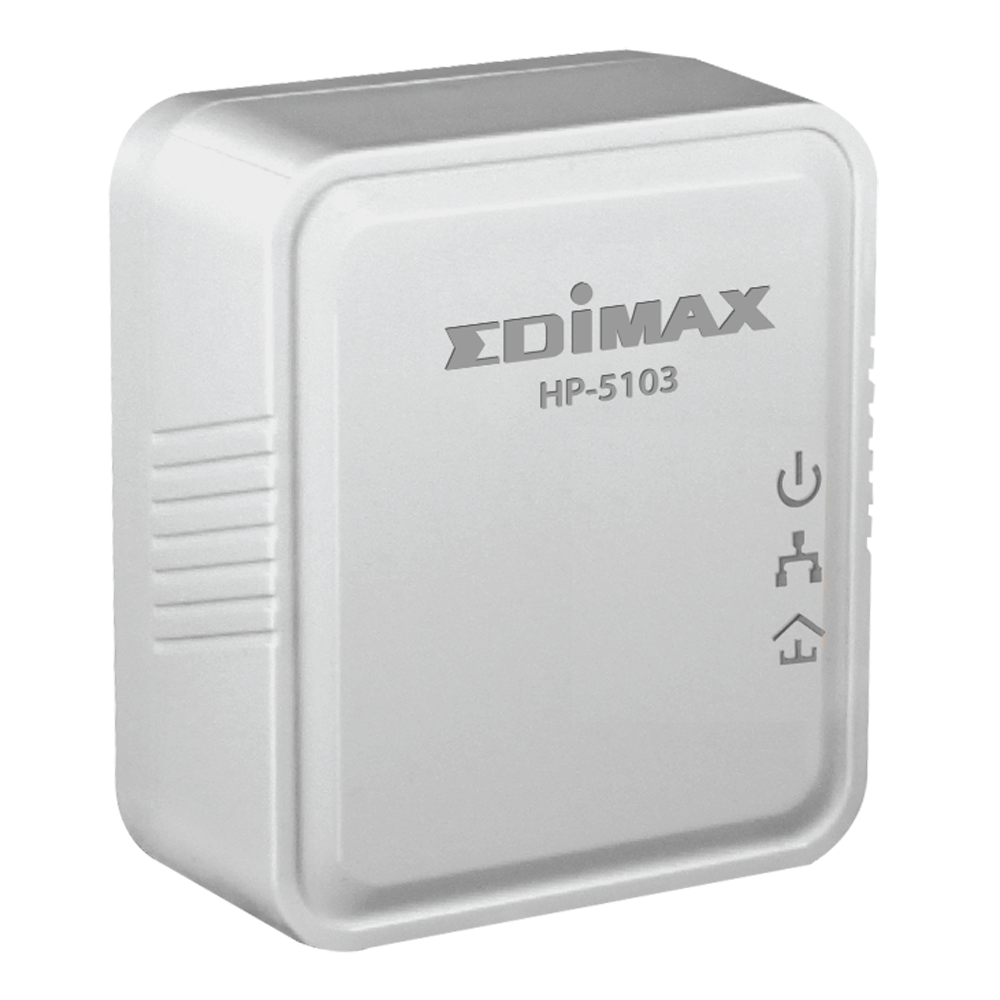

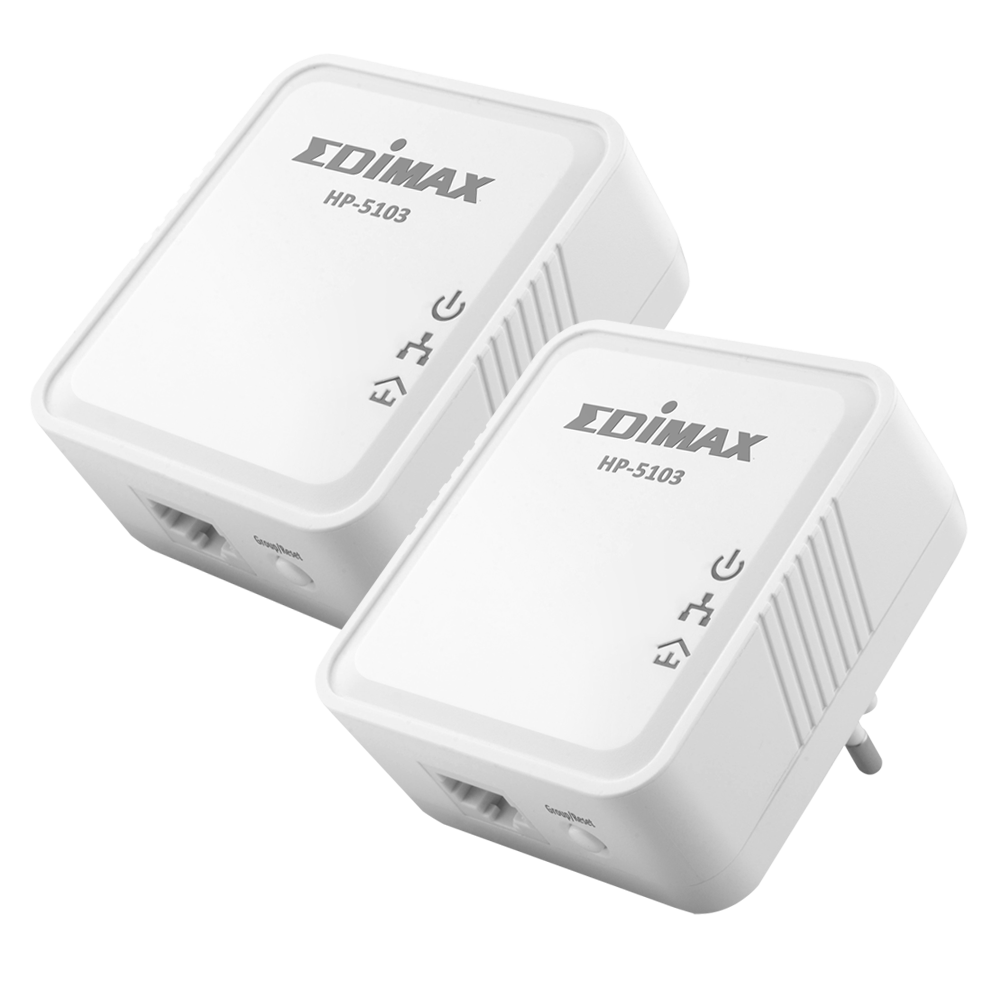

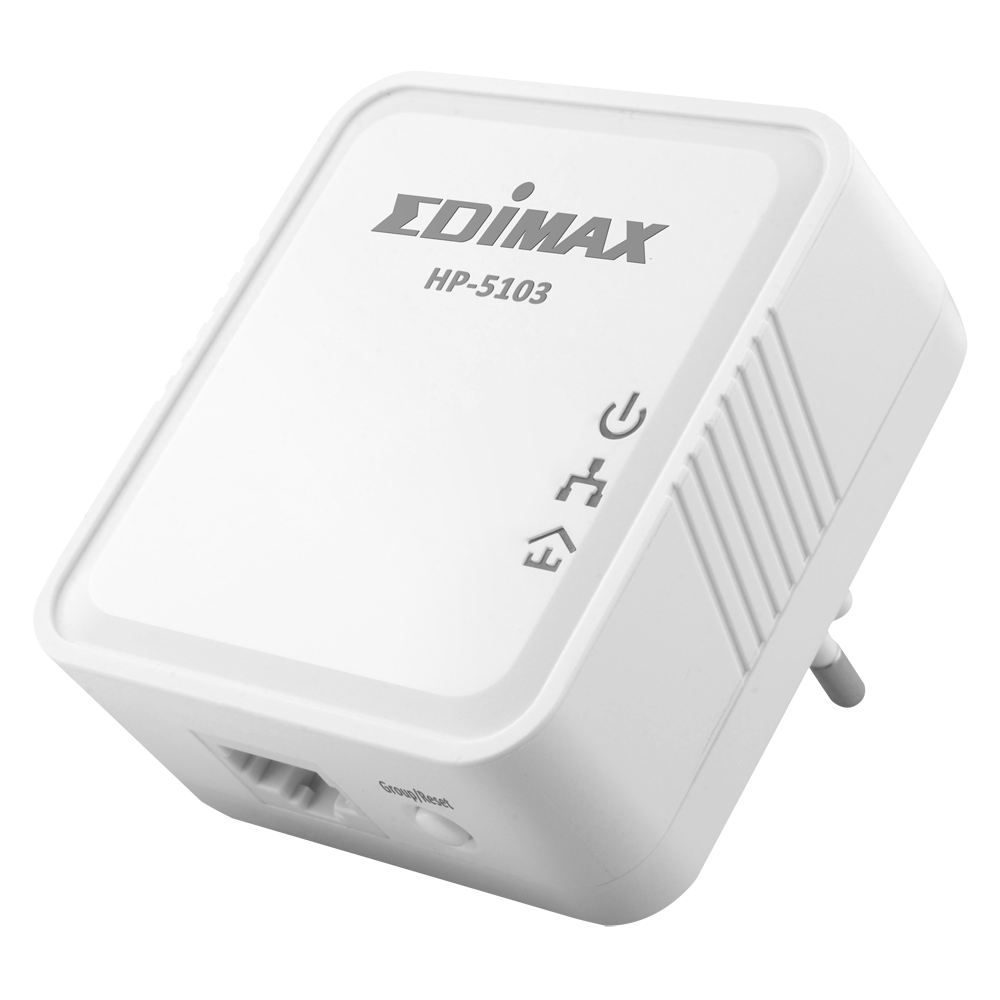

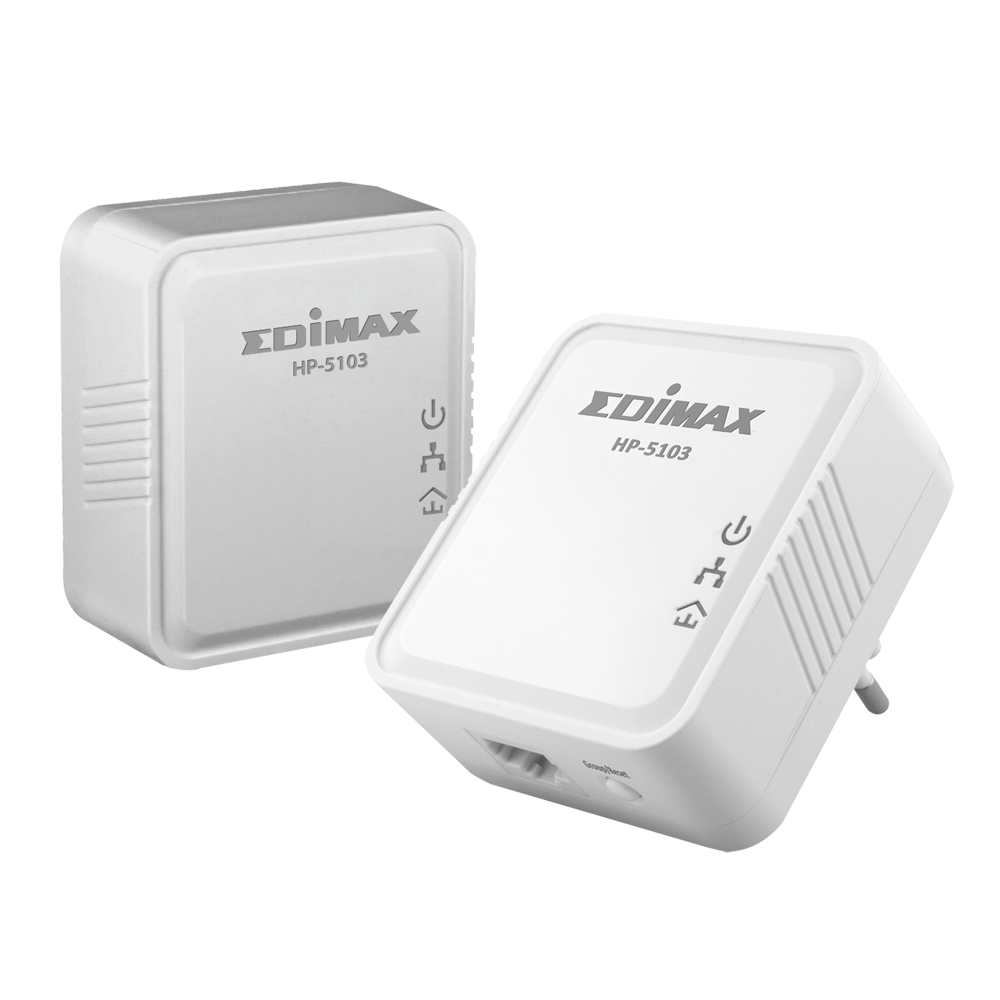

AV500 Nano PowerLine Adapter Kit


  • Easy plug-n-play setup and 128 bit AES security
  • Maximum Powerline speed up to 500Mbps
  • Backward compatible with 200Mbps Powerline adapters
  • Features energy saving mode to reduce power consumption
  • Utilizes existing electrical wires to transmit network data
  • Powerline transmission range up to 300 meters

Unsatisfied that your wireless can’t reach certain areas in your house? Powerline is an ideal and simple solution to your problem. Edimax’s HP-5103 AV500 Nano Powerline Adapter extends your internet access with standard power outlets to create a 500 Mbps high-speed network to any room without internet dead spot and no more messy wires running through your house.

Unlike Wi-Fi devices with limited bandwidth, HP-5103 is perfect for high-bandwidth applications like HD video and audio streaming, and it's compatible with any networking device with an Ethernet port.  HP-5103 Powerline adapters can reach locations wireless cannot, so they are ideal for computers, home theater, smart TVs and gaming devices.  It provides you an expandable and easy to set up network at home.


Plug & Play, Easy to Create or Extend Network via Existing Electrical Wires

The Edimax HP-5103 transforms the existing electrical wires in your home or office into a high-speed network. Complicated, disruptive and unsightly cabling is no longer necessary - if your home or office doesn’t have an existing Ethernet cable infrastructure, the HP-5103 enables you to create a network environment easily and cost-effectively.

Edimax AV500 Nano PowerLine Adapter HP-5103_PowerLine_plug-n-play.png



Up to 500Mbps, 300 Meters

The Edimax HP-5103 supports IGMP managed multicast streams, used for online gaming and video streaming applications and allows for more efficient use of network resources. The HP-5103 can provide users with a stable high-speed data transmission rates of up to 500Mbps over the existing electrical wires and has a transmission range of up to 300 meters. With the HP-5103, you can transfer high-definition video and digital audio quickly and easily.

Edimax AV500 Nano PowerLine Adapter HP-5103_AV500_high-speed_HD_video_streaming.png



Energy Saving

The HP-5103 supports the energy saving mode to reduce power consumption.  If no data transmission or reception occurs over a certain period of time, the adapter will automatically go into standby mode to save power up to 87.5%.

Edimax AV500 Nano PowerLine Adapter HP-5103_energy_saving.jpg

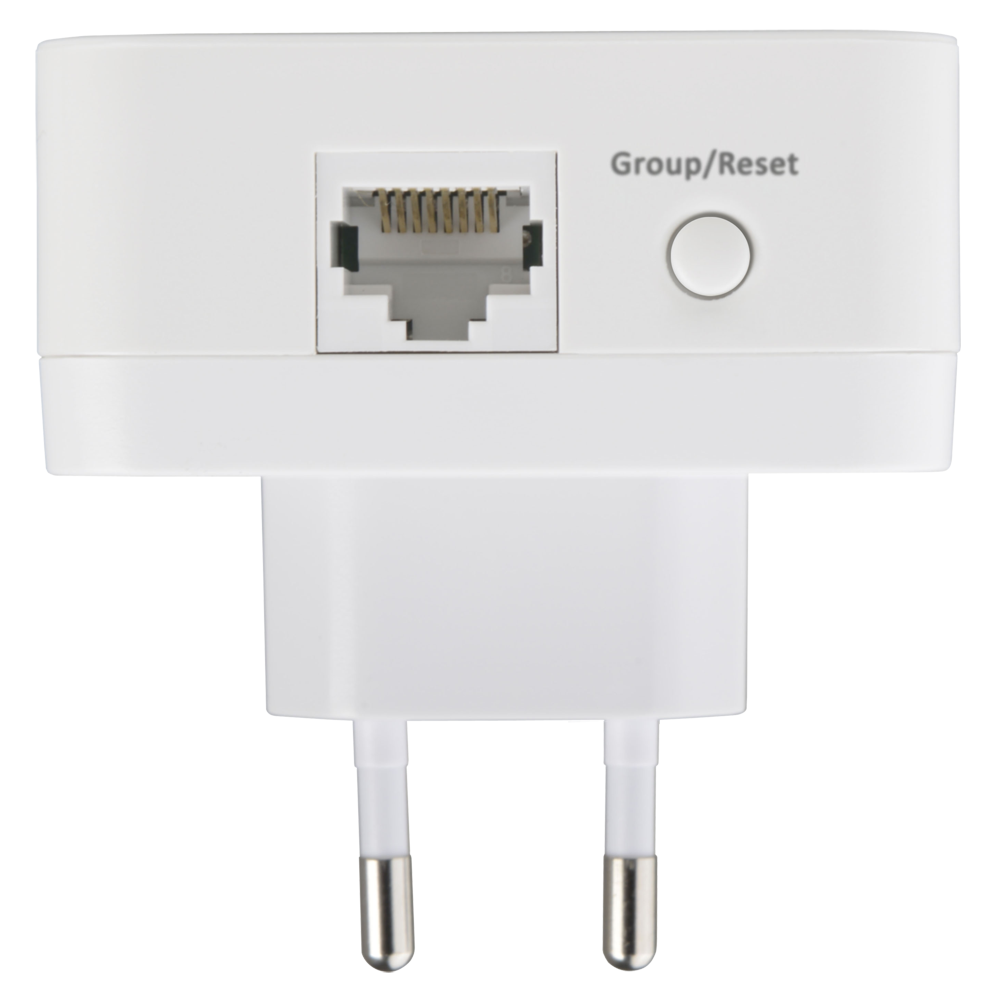

Hardware Combo Group/Reset Button

The Edimax HP-5103 has a combo group/reset button for simplified group and reset configurations. Press the group/reset button and the HP-5103 will help you set up a password for your network automatically, or reset the device to factory defaults.

Edimax AV500 Nano PowerLine Adapter HP-5103_Group_Reset.jpg




Edimax AV500 Nano PowerLine Adapter HP-5103_Application_Diagram.jpg

*Powerline adapters must be deployed in sets of two or more.

*500Mbps is the maximum theoretical communication speed at the physical layer via electric power lines based on the IEEE 1901 standard.

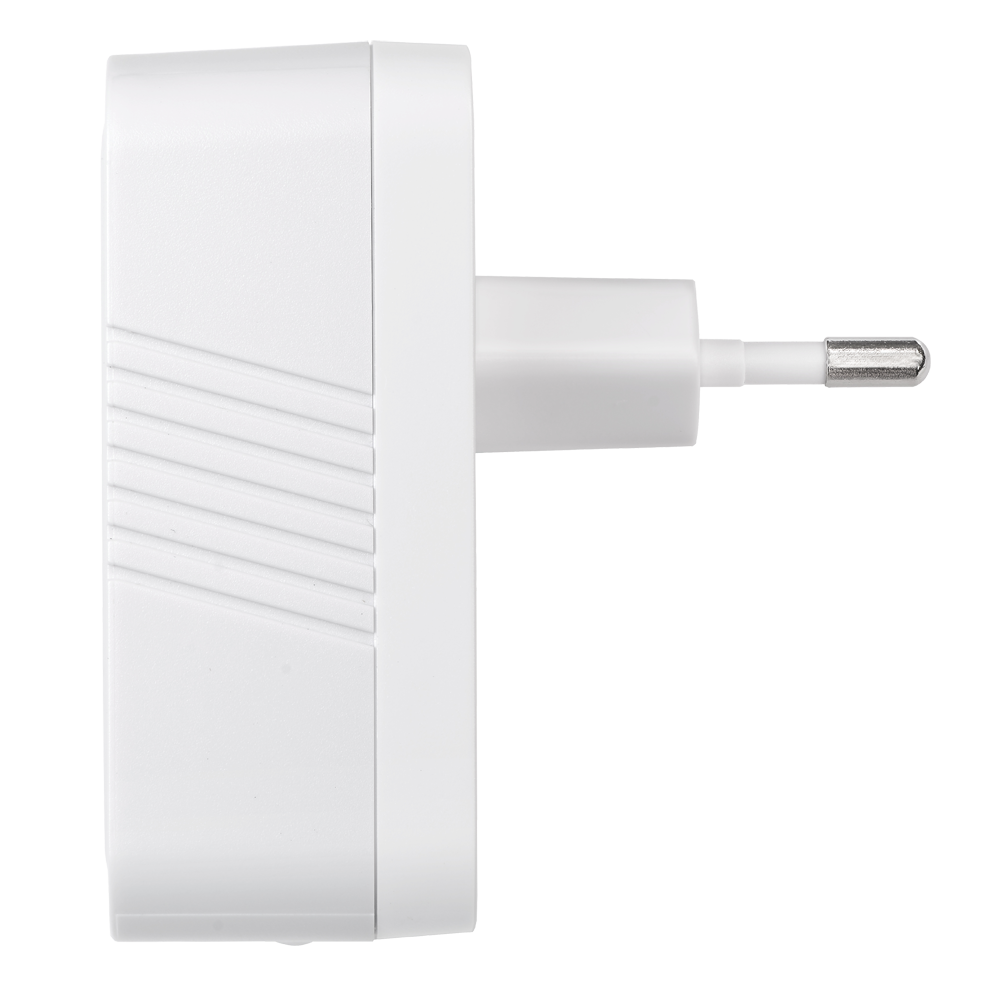

Interface 1 x AC plug (EU, UK, US or AU)
1 x RJ45 10/100Mbps LAN port

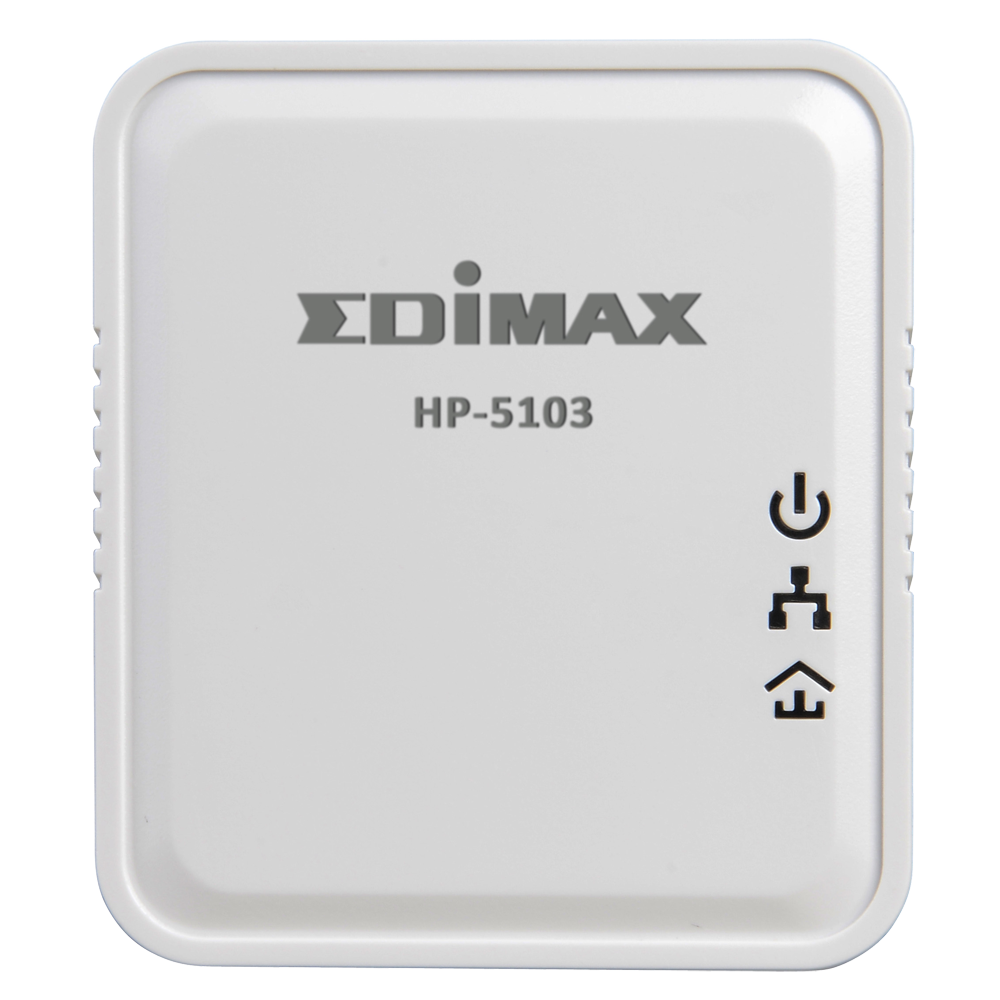

LED Indicator Power, Ethernet,  Powerline
Button 1 x Group/ Reset button
Memory 1MB Flash
Power Source 100-240V AC, 50-60Hz
EU: 16A/230VAC
UK: 13A/240VAC
AU: 10A/240VAC
US: 15A/120VAC
Power Consumption 4W
Dimensions 68 x 60 x 28mm
Weight 84g
Standards IEEE 1901
IEEE 802.3
IEEE 802.3u
Frequency 2MHz~68MHz (with Mask)
Modulation Schemes OFDM symbol modulation on line synchronization 1024/ 256/ 64/ 16/ 8-QAM, QPSK, BPSK, ROBO modulation schemes
Data Rate TCP: Up to 95 Mbps effective throughput
UDP: Up to 95 Mbps effective throughput
Powerline: 500Mbps (PHY rate)
Operating Range Up to 300 meters over a home's electrical circuit
QoS 4 levels priority based contention access, and multi segment bursting
8 levels VLAN priority field, TOS field
QoS classification by destination MAC address and IP port
Nodes Up to 15 slaves with 1 master, 16 total devices
Max 8 bridged devices per station
IGMP Support for IPv4/IGMPv1,v2,v3 snooping
Support for IPv6 and MLDv1, v2 snooping
Max 16 source addresses and group members
Security 128-bit AES link encryption with key management
Certification CE, FCC, LVD
Environmental Condition Operating temperature: 0°C - 45°C
Operating humidity: 10 - 90% (non-condensing)

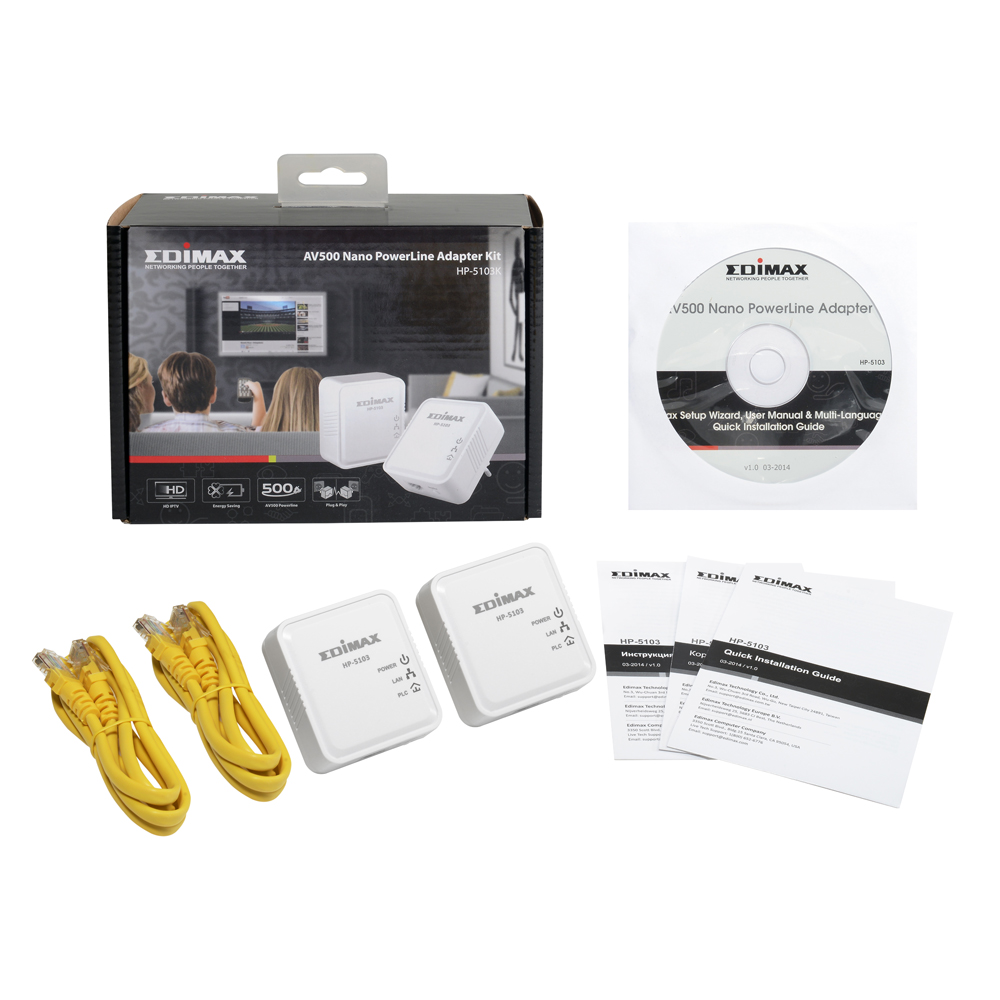

Package Content 2 x Powerline Adapter
2 x RJ45 Ethernet Cable
1 x Quick Installation Guide
1 x CD with setup wizard, user manual & multi-language QIG

*500Mbps is the maximum theoretical communication speed at the physical layer via electric power lines.
**Powerline adapters must be deployed in sets of two or more.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
