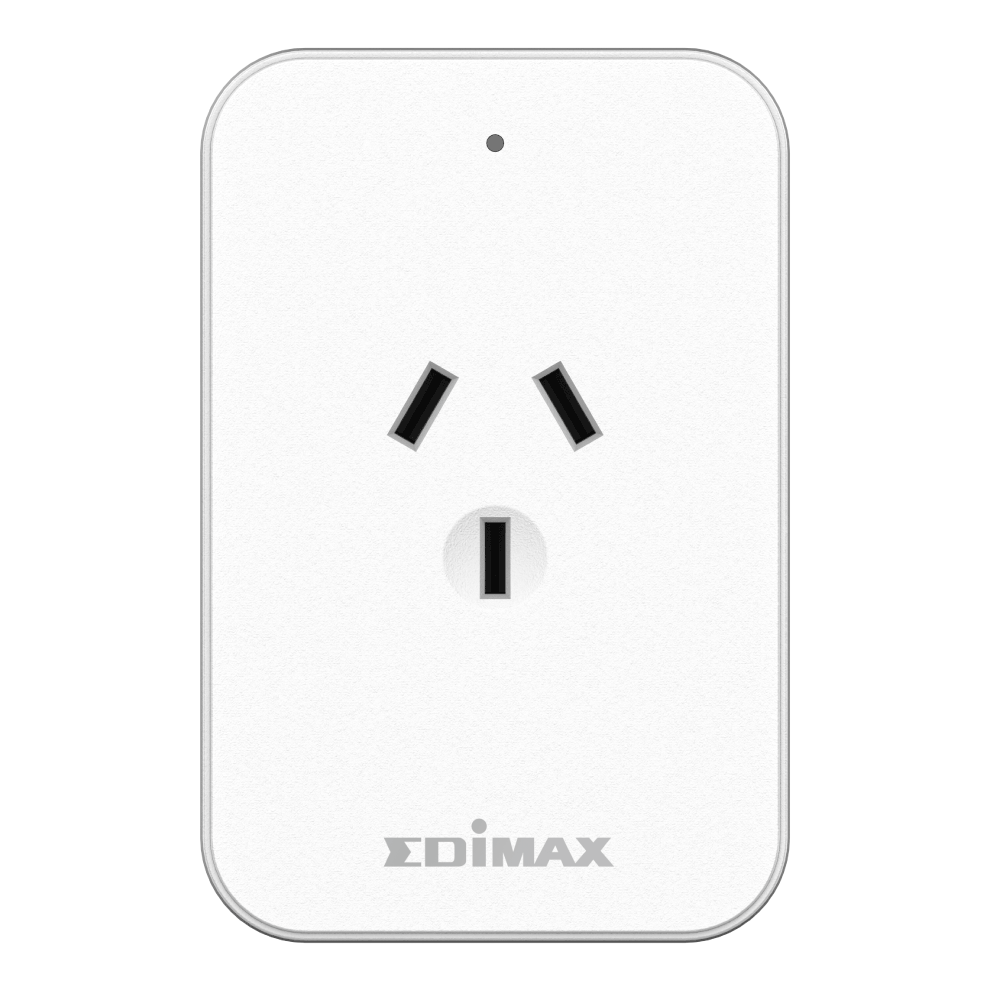

Smart Plug with Power Meter Intelligent Home Energy Management

SP-2101W V4

  • ​Real-time power meter: Monitor current usage effortlessly with the intuitive EdiSmart App on your mobile device.
  • Easy setup: Simply plug into the wall socket, connect to your home network and you‘re good to go.
  • Compact, sleek design: built from the ground up. Control appliances remotely via the free EdiSmart App anytime, anywhere.
  • Voice command compatibility: Work seamlessly with Siri, Amazon Alexa, and Google Assistant.
  • Safety features: Cases made of UL 94 Classification and Flame-Retardant Thermoplastics.
  • Advanced scheduling & timer: Effortlessly schedule the on/off cycles for your home electronics.

Get EdiSmart app from:

EdiSmart from App Store   EdiSmart from Google Play

Smartify your home with Alexa

Control your lamps, kettles, fans, Christmas tree lights, and more with just your voice. Plug any device into the Smart Plug Meter and experience the convenience it brings to your home.

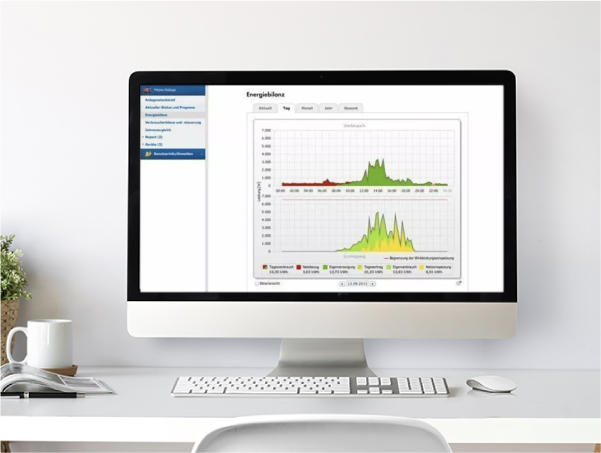

Stay Informed with Real-Time Power Meter

Curious about your current power usage? Check the current kWh to know exactly what the plugged in device is costing you or if the device is functioning properly as it should. Compare different devices easily to understand where your money goes—all through the user-friendly app.

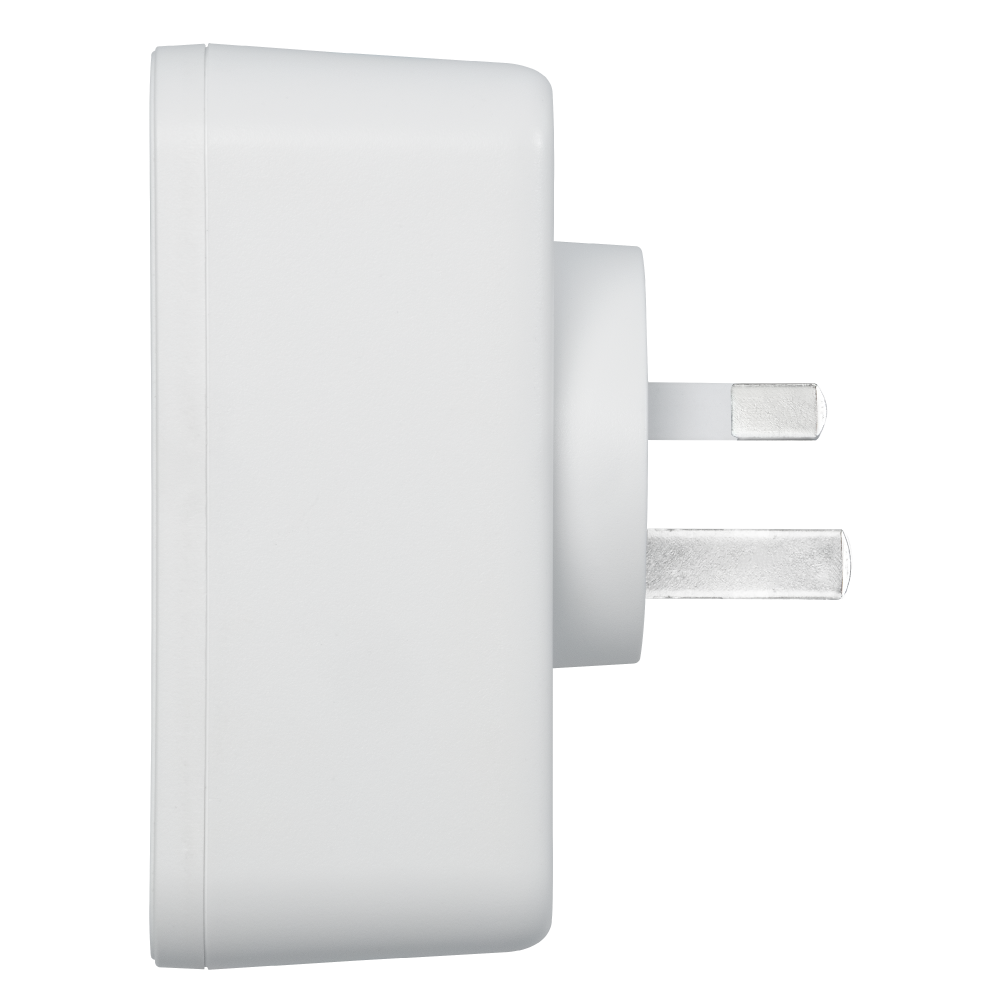

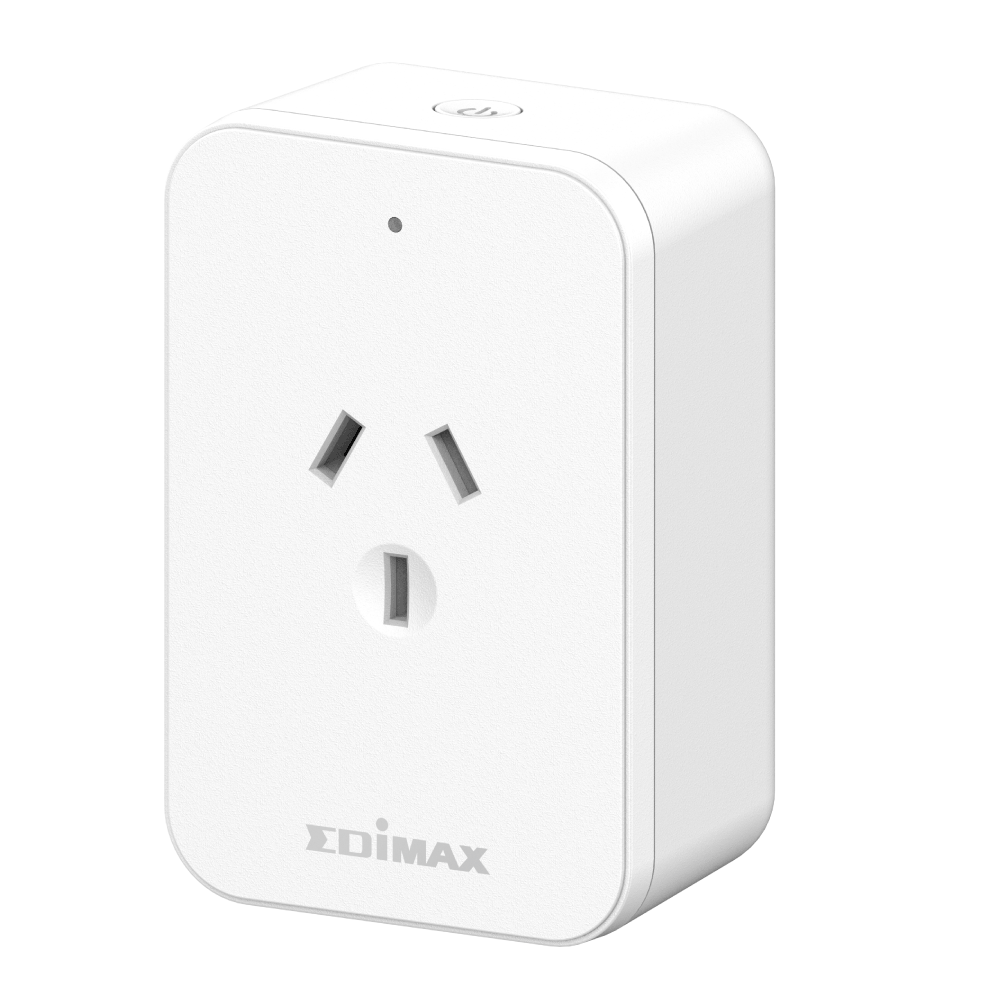

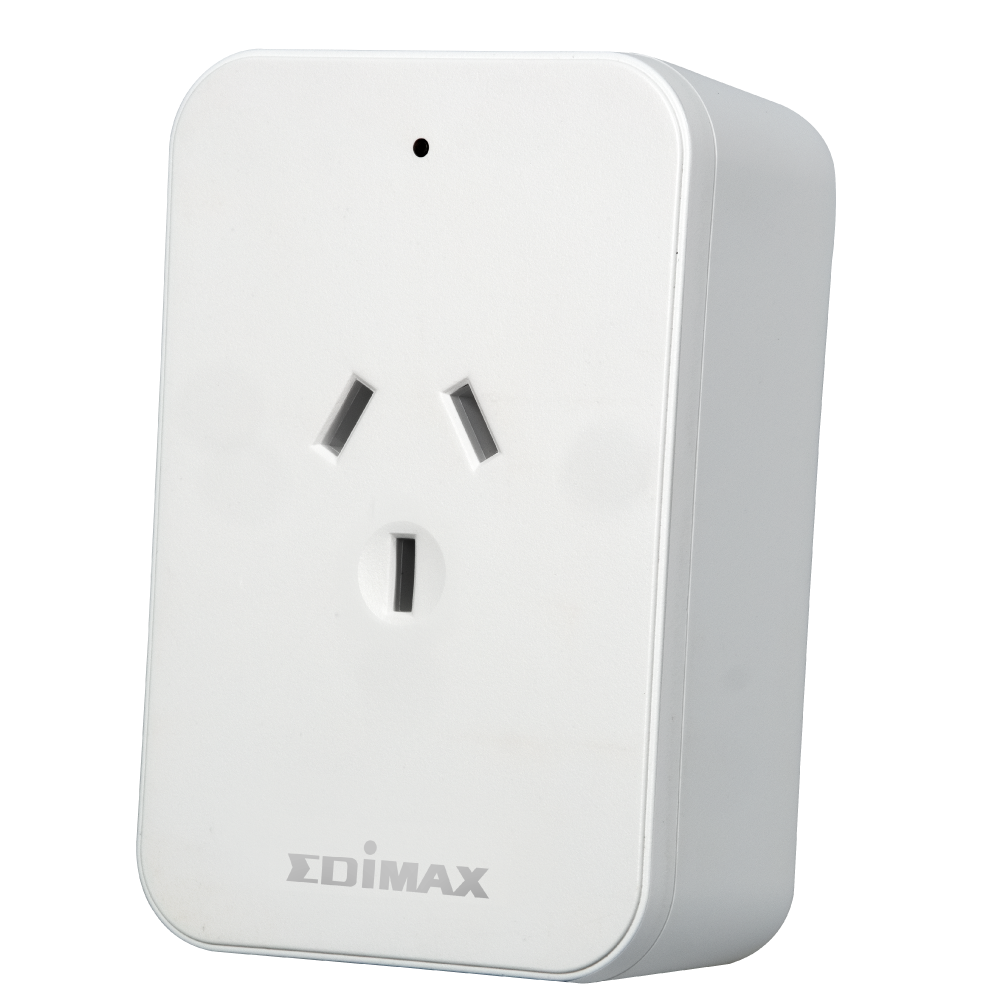

Ultra-compact and Sleek Design

EDIMAX has created a very sleek, modern, and compact plug. Effortlessly Integrate it into your home. Just plug it in, and let it handle the rest.


UL 94 Flame Standard Compliant Safety Design

Cases made of UL 94 classified and flame-retardant thermoplastic. Experience peace of mind with style and protection.


Tailor-Made Scheduling & Timer

Effortlessly schedule the on/off cycles for your home electronics.

Advanced scheduling & timer

Custom Scheduling

Make your life easier by using EdiSmart App to create your routines.

Advanced scheduling & timer

Count Down Timer

Set a timer for your connected device to shut off automatically when the time runs out.

Setup Can’t Be Any Easier

Installing the smart plug is quick and safe—just plug it into the wall socket, connect it to your home network, and control all your EDIMAX smart plugs with the user-friendly EdiSmart App on your mobile device.

Free EdiSmart App

Find EdiSmart app on Google Play or App Store.

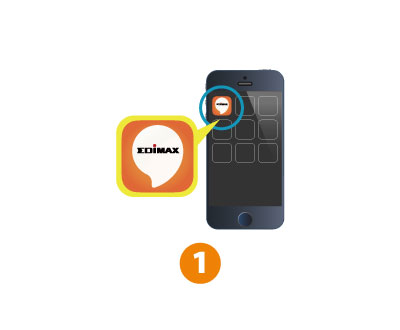

Step 1

Download the EdiSmart app.

Smart Plug Installation

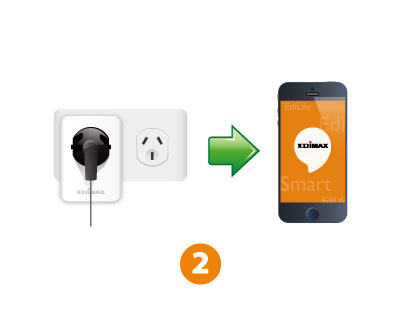

Step 2

Plug the SP-2101W V4 into an outlet and connect it to your smartphone.

Smart Plug Installation

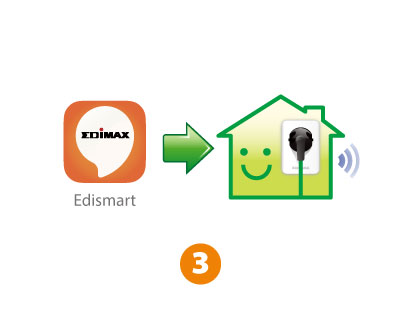

Step 3

Open the EdiSmart app and complete the installation process.


Interface 1 x Power Socket (AS/NZS 3112 Socket)
Button Power On/Off or Factory Reset Button
LED Multi–function LED for System and Wi-Fi Connectivity Status
Power Input 100~240VAC (from Main Power)
Power Output 100~240VAC
Maximum Load Current: 10A, 2300W
Dimensions 45(L) x 55(W) x 85(H) mm
(1.77(L) x 2.17(W) x 3.35(H) inches)
Weight 102g (3.60 ounces)
Standard Wi-Fi 4 2.4GHz: IEEE 802.11 b/g/n
Frequency Band 2.4GHz: 2.4000~2.4835GHz
​*Subject to local regulations.
Security WPA3-SAE (Personal), WPA2, WPA, WEP, 802.1x
  • Switch your electronics and appliances on or off via Amazon Alexa or EdiSmart App over iPhone, iPad & Android devices.
  • Overcurrent protection( OCP)
  • Automated scheduling to control, monitor & manage your power.
  • Real time power data and history with daily, weekly & monthly statistics.
  • Quick setup using iPhone, iPad & Android devices.
  • Upgradable Firmware
  • Email notifications
  • Schedule control
  • Budget control
Supported System Android 17 or higher, iOS 11 or higher
*Additional version information may be announced on the EDIMAX website.
Environmental Condition
  • Indoor Use Only
  • Temperature:
    • Operating: -20~40°C (-4~104°F)
    • Storage: -40~70℃ (-40~158°F)
  • Humidity:
    • Operating: 10~90% (NonCondensing)
    •  Storage: 10~90% (NonCondensing)
Certifications RCM​
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
