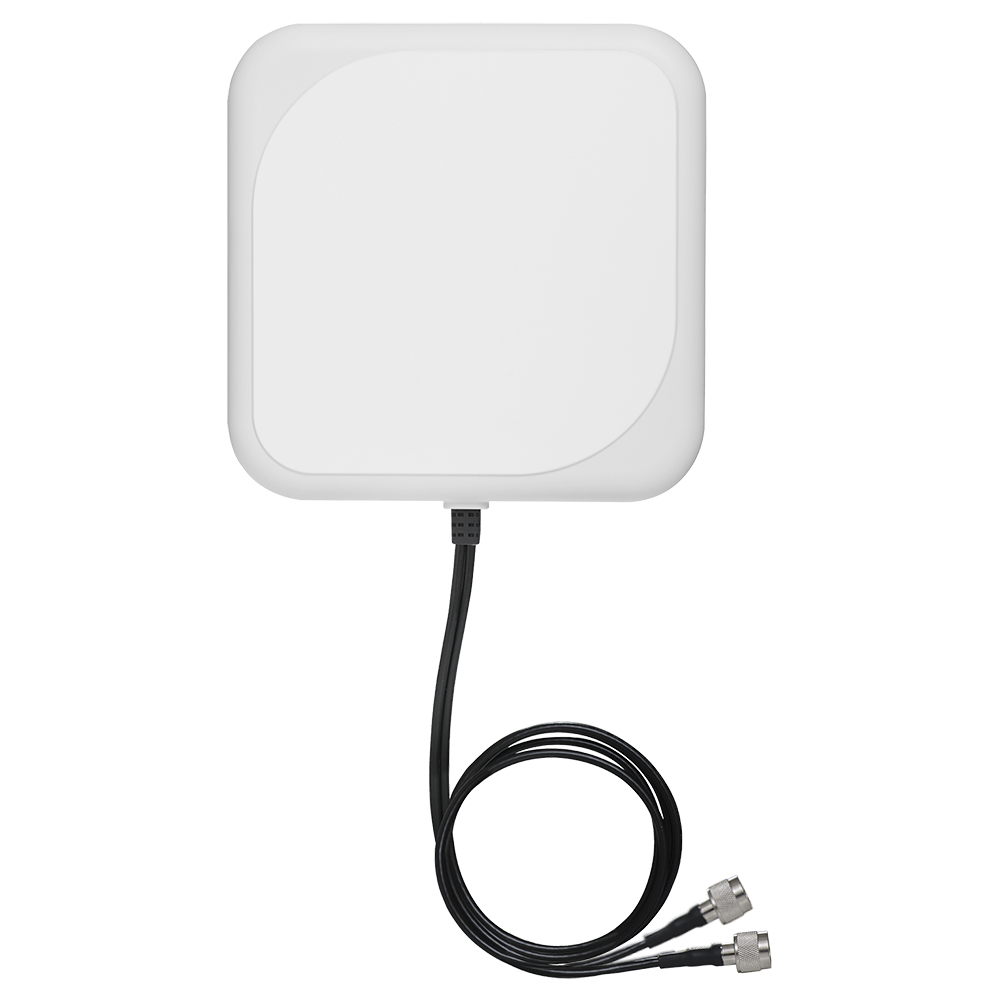

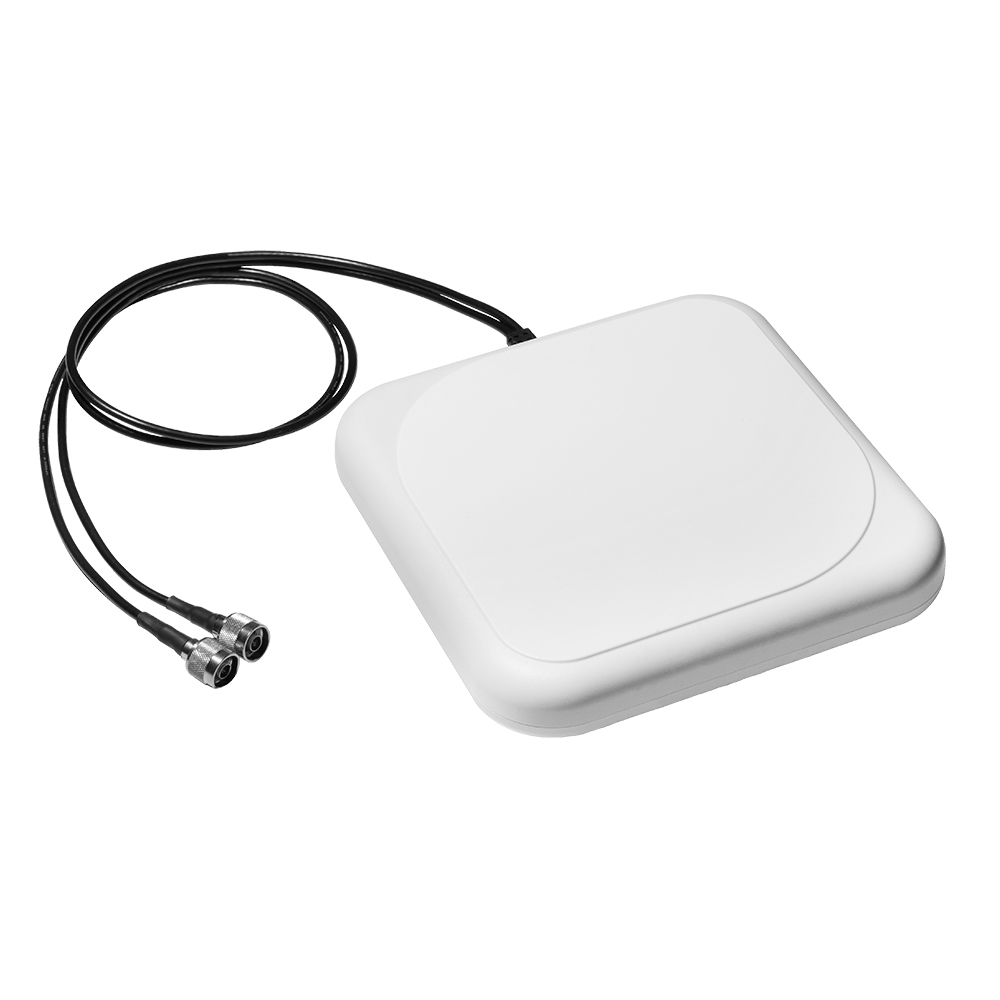

5GHz 15dBi High Gain Dual Polarization Directional Antenna

ANT-5815D2

  • Supports 802.11a/b/g/n 5GHz wireless.
  • Provides 15dBi directional operation for point-to-point, high performance and long range connections.
  • Works with N Type female connector.
  • Dual-Polarization to avoid interference.
  • Easy installation mounting kit.
  • Features IP55-rated housing.
Share


SPECIFICATIONS

ELECTRICAL SPECIFICATIONS
Frequency Range 5.150 ~ 5.825GHz
Max. Gain 15dBi
Antenna Type Uni-directional, Flat Panel
V.S.W.R. 2.0:1 (Max.)
Polarization Linear, ±90°
HPBW / Horizontal 16°
HPBW / Vertical 16°
Front to Back Ratio -20dB (Max.)
Isolation 20dB
Input Impedance 50Ω
Cable CFD200, 1000mm
Connector N-Type x2
Power Handling 6W
Lightning Protection DC Ground
ENVIRONMENTAL & MECHANICAL CHARACTERISTICS
Temperature -20 ~ 70 °C
Humidity 95% RH
Radome Color Gray-white
Radome Material ABS
Dimension (L x W x H) 240 x 240 x 40mm
Weight 652g
Weatherproof IP55
Mount Type Pole Mount or Wall Mount
ACCESSORIES
Mounting Brackets Wall-Mount & Pole-Mount Bracket Kit
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
