AX3000 Wi-Fi 6 Dual Band 802.11ax & Bluetooth 5.0 PCI Express Adapter


  • Next-Gen WiFi 6 Standard: 802.11ax WiFi standard for better efficiency and throughput.
  • Ultrafast WiFi Speed: 3000Mbps WiFi speed to handle even the busiest network with ease.
  • Comply with IEEE 802.11abgn/ac/ax standards.
  • OFDMA and MU-MIMO Technology: Full Speed Wi-Fi on Multiple Devices Simultaneously.
  • Bluetooth 5.0: Faster Speeds and Greater Range.
  • Different Mounts: Magnetic base antenna or compact.
  • Secure Wi-Fi: High level Wi-Fi security supported with WPA3-SAE (Personal), WPA2, WPA, WEP and 802.1X
  • PCI Express x1 interface.
  • Support low profile bracket.

Upgrade to 11ax Wi-Fi | The Next-gen Standard

The EW-7833AXP optimizes your Wi-Fi connectivity speed by operating both 2.4GHz and 5GHz that ensures an interference-free performance. While you’re enjoying HD video streaming or playing online games over the 5GHz band, other tasks, such as emailing, online chatting, or web surfing can be well handled by the 2.4GHz simultaneously.

OFDMA and MU-MIMO Technology

This is a whole new way of delivering data packages. No longer wait for single packages to be delivered one after the other to your devices, now you can experience fast and effective data transfer to multiple devices at the same time.

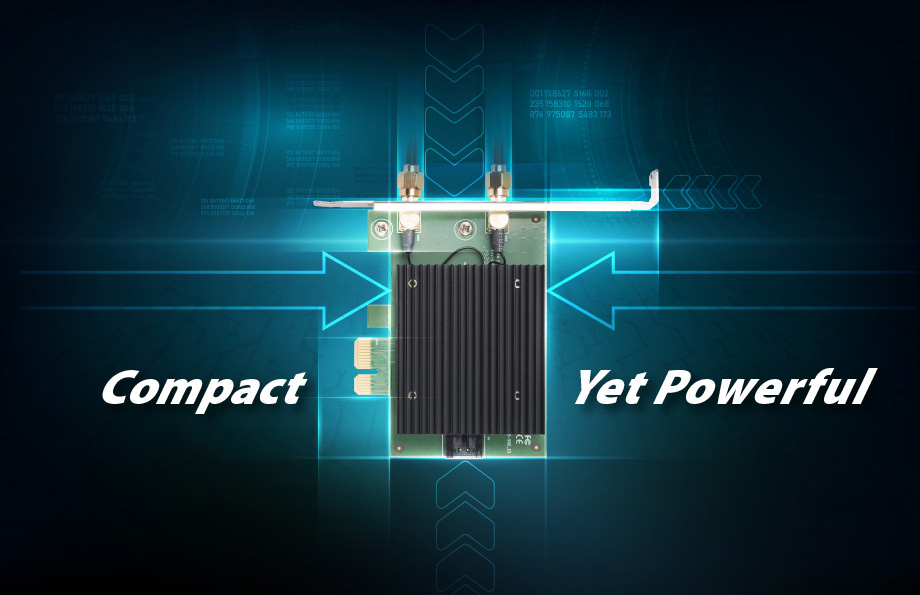

Latest 11ax Wi-Fi 6 | In One Small PCI-E Card

The EDIMAX EW-7833AXP packs the all-new latest 11 ax Wi-Fi 6 technology into a small package that fully extends the performance and usability of your desktop PC.

The Addition | Bluetooth 5.0

Not only the EW-7833AXP comes with the all-new Wi-Fi 6 standard technology, it also comes with Bluetooth 5, which has extended range, speed and stability compared to the previous Bluetooth 4.2 standard.

​Antenna Customization | External or Compact

Chose your flavor, connect the antennas directly onto the PCI-E card for a compact fit or connect it to the external antenna connector to extend the reach. The magnetized external base can be mounted easily on magnetic surfaces.

​Move Your PC | Wireless PC for Work and Play

Held down by a cable? Move your PC to wherever you desire with the PCI-E Wi-Fi Adapter. You no longer need to place your pc near a wired internet socket.

​WPA3 Security

This is another level of security over the older WPA2 generation technology. By using 128-bit encryption key, the new WPA3 security can protect user passwords from attacks and more.

​Gold Plated | For Performance

Gold plated connection makes it more stable when it comes to performance.

​The All-new 11AX Wi-Fi 6 Family

Click For More Info

BR-6473AX Router

EW-7833AXP PCI-E Adapter


Interface PCI Express x1
Antenna 2 x SMA Antenna
97(W) x 68mm(D) without bracket
97(W) x 120mm(D) with bracket
Accessory 1 x Magnetized external antenna base
1 x Low profile bracket
1 x USB Bluetooth header connector cable (9 pin to 4 pin)
Weight 86.7g Without antenna base
Data Rate 802.11 b/g/n/ax : Up to 573Mbps (2.4GHz)
802.11 a/n/ac/ax : Up to 2402Mps (5GHz)
Operating Frequency Wi-Fi 2.4 GHz (2400 ~ 2500 MHz) / 5 GHz (5150 ~ 5850 MHz) (subject to local regulations)
Bluetooth 5.0
Transmit Power 2.4GHz
11b (11Mbps):
      15.5dBm (CE)
      18.75dBm (FCC)
11g (54Mbps):
       16dBm (CE)
       16.5dBm (FCC)
11n (20MHz, MCS7):
       16dBm (CE)
       16.5dBm (FCC)
11ax (40MHz, MCS11):
        14.75dBm (CE & FCC)
11a (54Mbps):
       16dBm (CE)
       18dBm (FCC)
11n (20MHz, MCS7):
       16dBm (CE)
       18dBm (FCC)
11ac (80MHz, MCS9):
         14.5dBm (CE)
         14dBm (FCC)
11ax (60MHz, MCS11):
         12dBm (CE & FCC)
Security WPA3-SAE (Personal), WPA2, WPA, WEP and 802.1X
Standards IEEE 802.11abgn/ac/ax,
802.11d/ 802.11e/ 802.11h/ 802.11i/ 802.11w/ 802.11r/ 802.11k/ 802.11v pending OS support/ Fine Time Measurement base on 802.11REVmc.
Certification CE(Europe)
Supported Operating System
  • Windows 10/11
  • Linux: Kernel 5.1.0 ~ 5.2.3
​*256MB RAM / 100MB Hard Disk Space (at least)
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -20℃~65℃ (-4℉ ~149℉)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: Max 95% (NonCondensing)
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
