24 10/100TX + 2 10/100/1000T /Mini-GBIC Combo Web Smart Switch


  • Complies with IEEE802.3/802.3u/802.3z standards
  • Supports IEEE802.3x Flow Control
  • Supports Port based priority and 802.1p priority tag
  • Supports Port based VLAN and 802.1q Tag VLAN
  • Supports Auto MDI/MDIX and N-way Auto-Negotiation
  • High Switch Fabric up to 8.8Gbps
  • Store-and-Forwarding switching and Non-Blocking full wire speed architecture

The EW-5226RS is a multi-port Switch that can be used to build high-performance switched workgroup networks. This switch is a store-and-forward device that offers low latency for high-speed networking. The switch is targeted at workgroup, department or backbone computing environment.
The EW-5226RS has 24 auto-sensing 10/100Base-TX RJ-45 ports and 2 auto-detect Gigabit combo ports for higher connection speed. This switch features a store-and-forward switching scheme. This allows the switch to auto-learn and store source address in a 4K-entry MAC address table.

This section provides you a few samples of network topology in which the switch is used. In general, the EW-5226RS is designed as a segment switch which with its large address table (4k MAC address) and high performance, it is ideal for interconnecting networking segments.

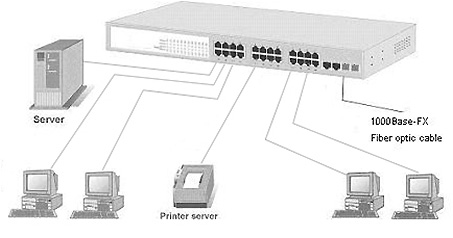

PC, workstations, and servers can communicate each other by directly connecting with EW-5226RS. The switch automatically learns nodes address, which are subsequently used to filter and forward all traffic based on the destination address.
By using Uplink port, the switch can connect with another switch or hub to interconnect other small-switched workgroups to form a larger switched network. Meanwhile, the user can also use fiber ports to connect switches. The distance between two switches by connecting with fiber cable can be up to 550 m (multi-mode fiber) or 10 kilometer (single-mode fiber).

ES-5226RS has configure QoS policy priority mode and CoS (Class of Service) configuration. QoS (Quality of Service) refers to mechanisms in the network software that make the actual determination of which packets have priority. CoS refers to feature sets, or groups of services, that are assigned to users based on company policy. If a feature set includes priority transmission, then CoS winds up being implemented in QoS functions within the routers and switches in the network. In an enterprise network, class of service (CoS) differentiates high-priority traffic from lower-priority traffic. Tags may be added to the packets to identify such classes, but they do not guarantee delivery as do quality of service (QoS) functions, which are implemented in the network devices.


Key feature:


Conforms to IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T,IEEE802.3z Gigabit fiber,IEEE802.3x Flow control and Back pressure, IEEE 802.3ad Port Trunk, IEEE 802.1p Class of Service.
24 10/100 TX plus 2 10/100/1000/Mini-GBIC Combo
Automatic MDI/MDIX supported
High Switch Fabric up to 8.8Gbps
N-way Auto-Negotiation supported
Store-and-Forwarding Switching Architecture
4K-entry MAC address table
Non-Blocking full wire speed architecture
IEEE 802.3x Flow control:
Pause-frame for full duplex mode
Back-pressure for half duplex mode
Fan free design

IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3z Gigabit fiber
IEEE802.3x Flow control and Back pressure
IEEE802.3ad Port Trunk
IEEE802.1p Class of service
10/100TX: 24 x RJ-45 with Auto MDI/MDI-X function
10/100/1000T/ Mini-GBIC Combo: 2 x RJ-45 with Auto MDI/MDI-X function + 2 x 1000 SFP sockets
Transfer Rate
14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port
Switch architecture
Store and forward architecture.
8.8Gbps with full wire speed.
MAC address
4K MAC with Auto learning
Flash ROM
Per unit: System power (Green)
10/100TX Port: Activity/ Duplex (Green), Speed (Amber)
10/100/1000T/ Mini-GBIC Combo: Activity/ Duplex (Green), Speed (Green)
Power Supply
100~240VAC 50/60Hz
Power Consumption
15.4watts (imum)
Operation Temp.
0℃ to 45℃ (32℉ to 113℉)
Operation Humidity
10% to 90% (Non-condensing)
Storage Temp.
-40℃ to 70℃
440mm(W) x 120mm(D) x 44mm(H)
19 “EIA /TIA Rack design,
FCC Class A, CE
UL, cUL, CE/EN60950-1

Software Feature

Web management
Port configuration
Link speed, k mode, Port disable/Enable, Port Flow control disable/Enable, Port Auto negotiation
Port Trunk
Trunk groups up to 3. Maximum trunk port members up to 4.
Support LACP
Port Based VLAN, 802.1Q Tag VLAN
VLAN entry up to 32.
1) Port based priority. 2) 802.1p priority tag
Class of Service
System provides 2 queues for High and Low priority.
Support priority weighted ration (H /L): 1:0(always high priority), 4:1(4 High priority then 1 Low priority packet), 8:1(8 High priority then 1 Low priority packet)
Bandwidth control
Each port's bandwidth is configurable on both ingress and egress traffic independently. Rate limit from32Kbps to 256Kbps
Provide DHCP Client functions
Broadcast Storm filter
Disable or Enable.
Port Mirror
Global System support 3 mirroring type RX, TX and both packet. The maximum of mirror entries up to 26.
MAC Address Filtering
Allow a network administrator permit and deny network access to hosts associated with the MAC address..
Firmware Upgrade
Support Web firmware update, backup and restore.

Application Diagram

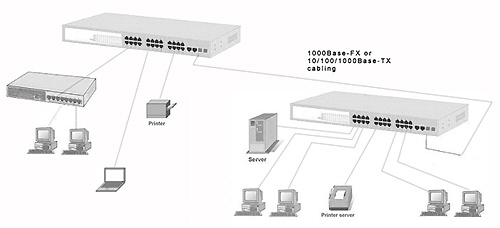

Small Group

Segment Uplink
