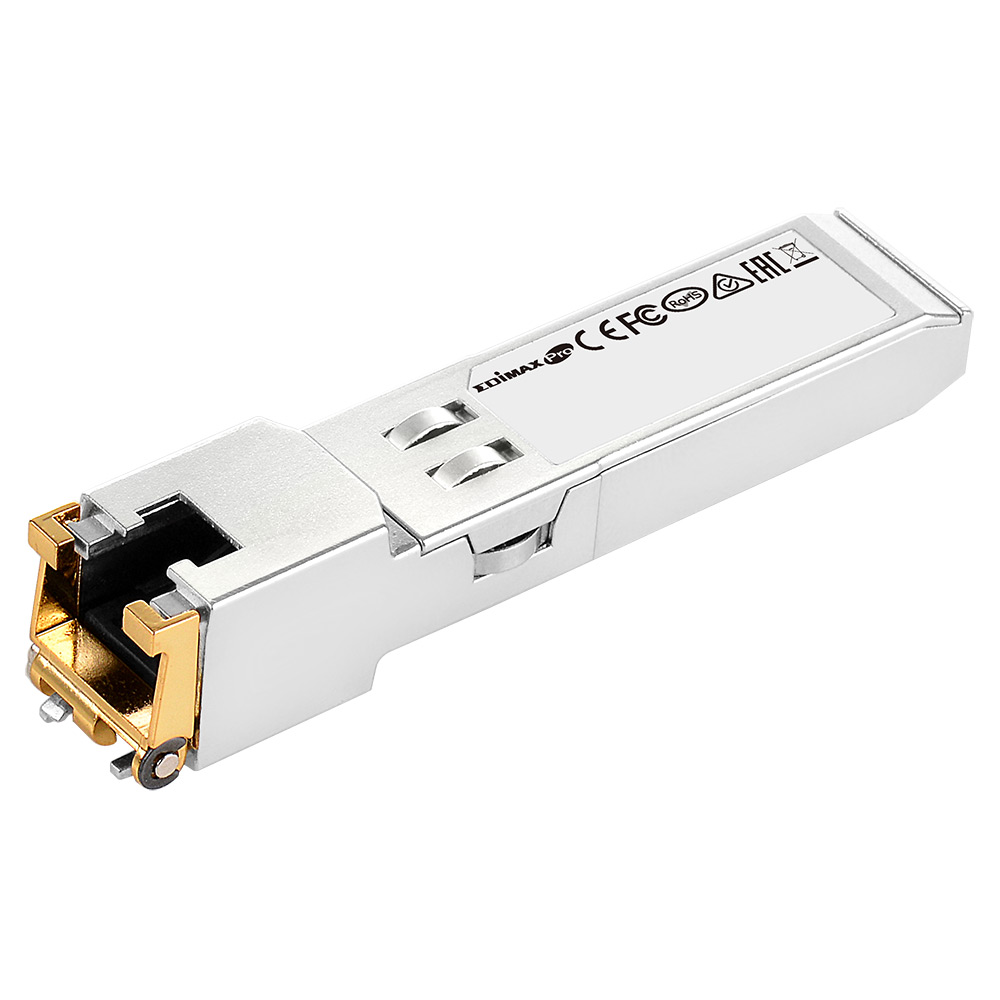

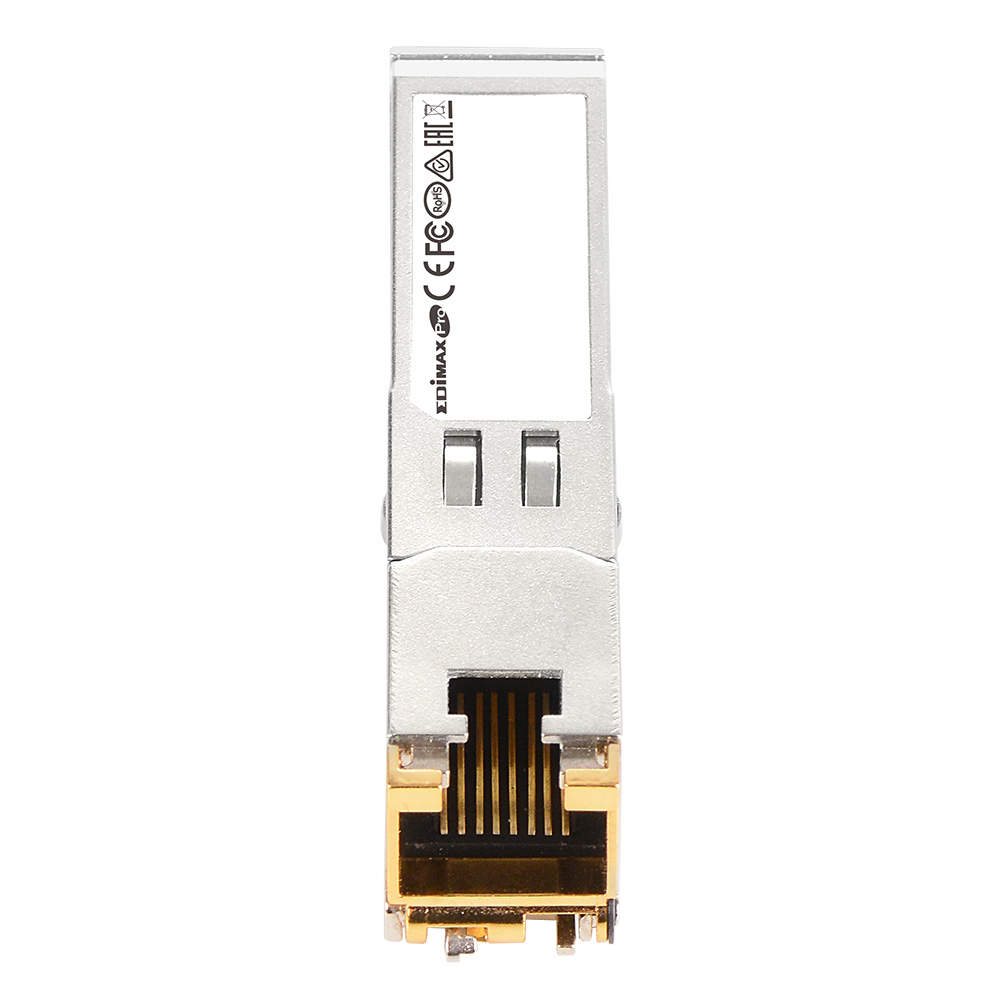

1000Base-T Copper SFP Modules

MG-1000AT Series

  • Compliant with IEEE 802.3ab Gigabit Ethernet Standard
  • Supports full-duplex
  • Plug-and-Play & Hot Pluggable
  • Supports Pull-or-Plug with power on switches
  • Power: Internal power from switches
  • Compliant with Small Form Factor Pluggable MSA


The MG-1000AT series are Gigabit Copper Small Form-Factor Pluggable (SFP) Modules that plug into any standard SFP interface and work with any Edimax switch SFP slots for 1000Base-T Gigabit transmission over standard Cat. 5 twisted-pair copper. They are compatible with Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3ab. The MG-1000AT series copper SFP modules can be utilized in a wide range of Gigabit Ethernet connectivity options for enterprise, data center and service provider applications.



PRODUCT INFORMATION
Model Number Wavelength
MG-1000AT 1000Base-T Copper SFP Modules
MG-1000ATI* 1000Base-T Copper SFP Modules, Industrial Grade
*Industrial Grade SFP, supports robust design for enhanced reliability in industrial grade, operating temperature: -40℃~85℃

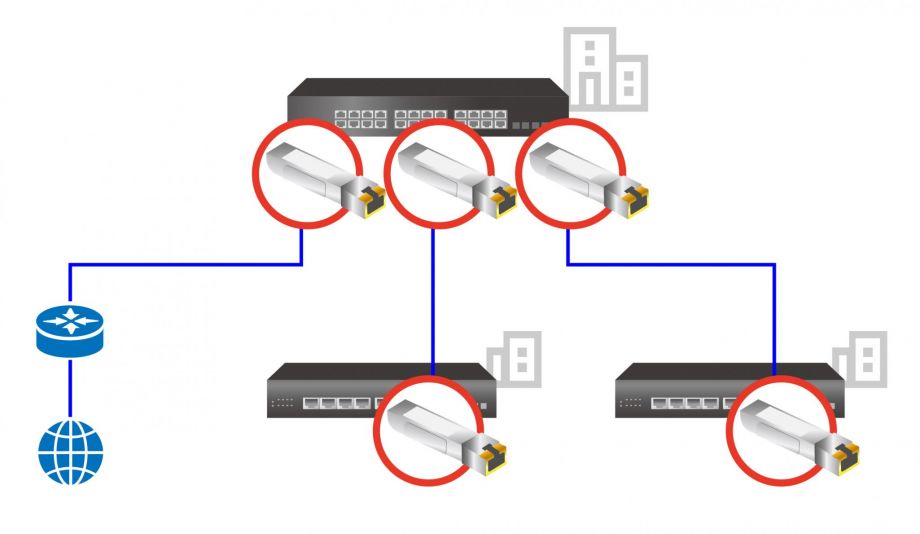

APPLICATION DIAGRAM
Edimax Pro MG-1000AT, MG-1000ATI 1000Base-T Copper SFP Modules


SPECIFICATIONS

HARDWARE
Transceiver Type SFP (Small Form-Factor Pluggable)
Connector RJ-45
Data Rate
•1,000 Mbps (IEEE 802.3 compatible)
•10/100/1000 BASE-T Operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only.
Cable Type Cat. 5 Twisted-pair
Max. Cable Length 100m (328 ft)
Supply Current
•350mA (typical); 400mA (maximum)
•1.3W Max. power over full range of voltage and temperature.
Input Voltage 3.3V
ENVIRONMENT
Temperature Commercial Operation Temperature: 0 ~70℃
Industrial Operation Temperature: -40 ~ 85 ℃
Storage: -40 ~ 85℃
Humidity (Non-condensing) Operating: 10 ~ 90%
Storage: 5 ~ 90%
STANDARDS COMPLIANCE
Standards
IEEE 802.3ab 1000Base-T Gigabit Ethernet
CSMA/CD
TCP/IP
Certifications FCC, CE
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
