AV500 Nano PowerLine Adapter Kit

HP-5102K

  • 500Mbps high speed ideal for HD video streaming
  • Utilizes existing electrical wires to transmit network data
  • Easy plug-n-play setup and 128 bit AES security
  • Powerline transmission range up to 300 meters
  • Backward compatible with 200Mbps powerline adapters
  • Features energy saving mode to reduce power consumption

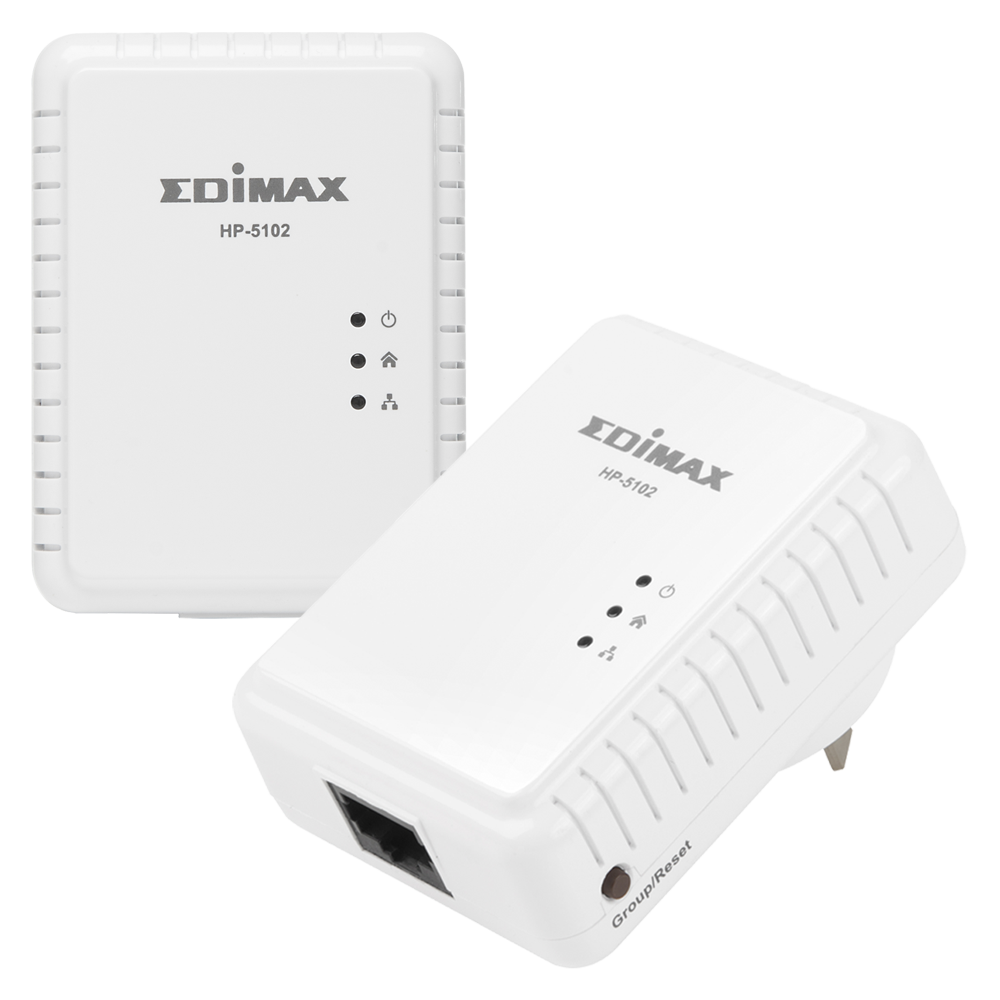

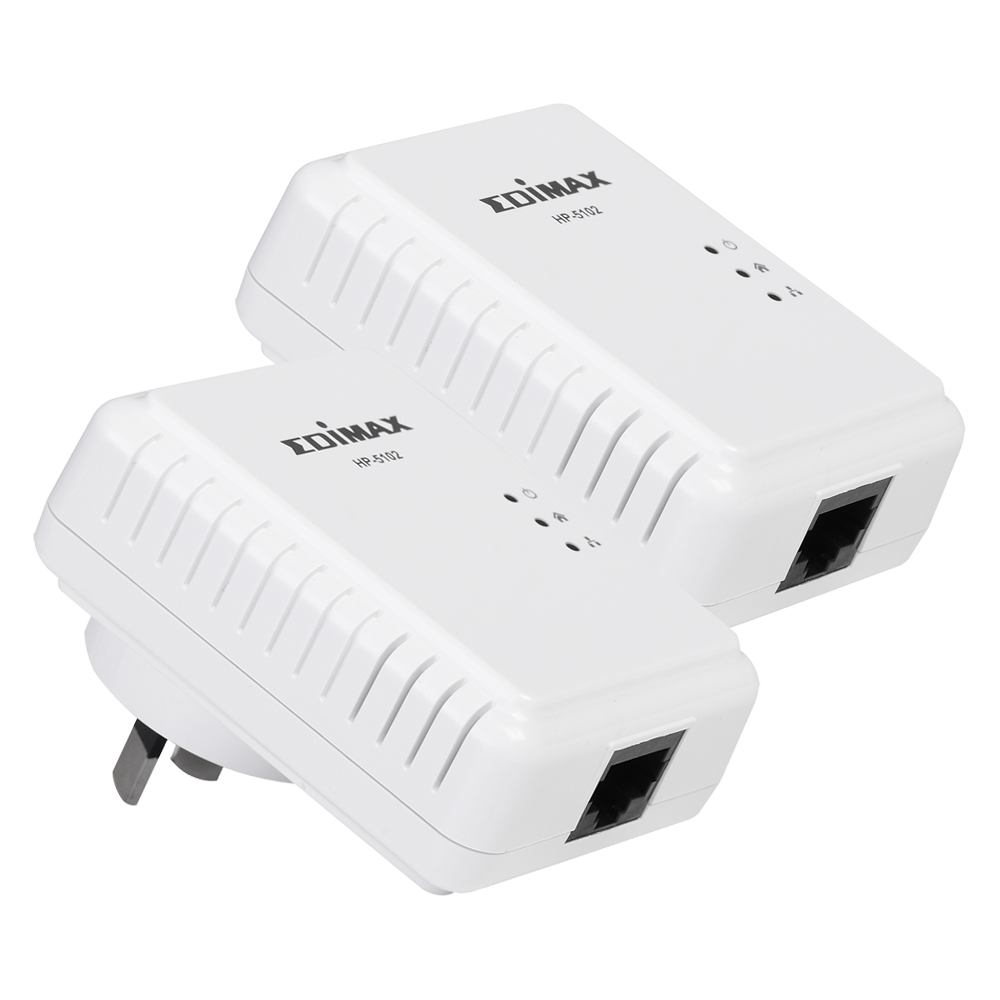

  • HP-5102K Adapter Kit includes 2 x HP-5102
Share


Transmit Network Data via Existing Electrical Wires
The Edimax HP-5102 transforms the existing electrical wires in your home or office into a high-speed network. Complicated, disruptive and unsightly cabling is no longer necessary - if your home or office doesn’t have an existing Ethernet cable infrastructure, the HP-5102 enables you to create a network environment easily and cost-effectively.

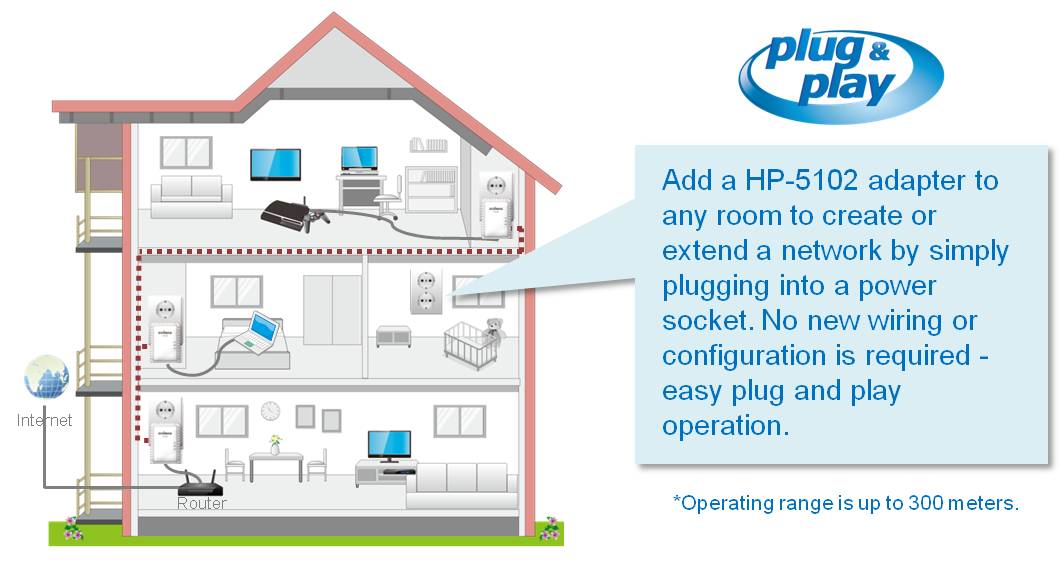

Edimax HP-5102 Easy Create and Extend Network via Existing Electrical Wires










500Mbps AV200 Standard & IGMP Support
The Edimax HP-5102 supports IGMP managed multicast streams. The HP-5102 can transmit network data over existing electrical wires at speeds of up to 500Mbps. It is also backward compatible with the 200Mbps AV200 standard and has a transmission range of up to 300 meters. IGMP can be used for online gaming and video streaming applications, and allows for more efficient use of network resources. With the HP-5102, you can transfer high-definition video and digital audio quickly and easily.



Edimax 500Mbps Nano PowerLine Adapter HP-5102_HP-5102AC up to 500Mbps

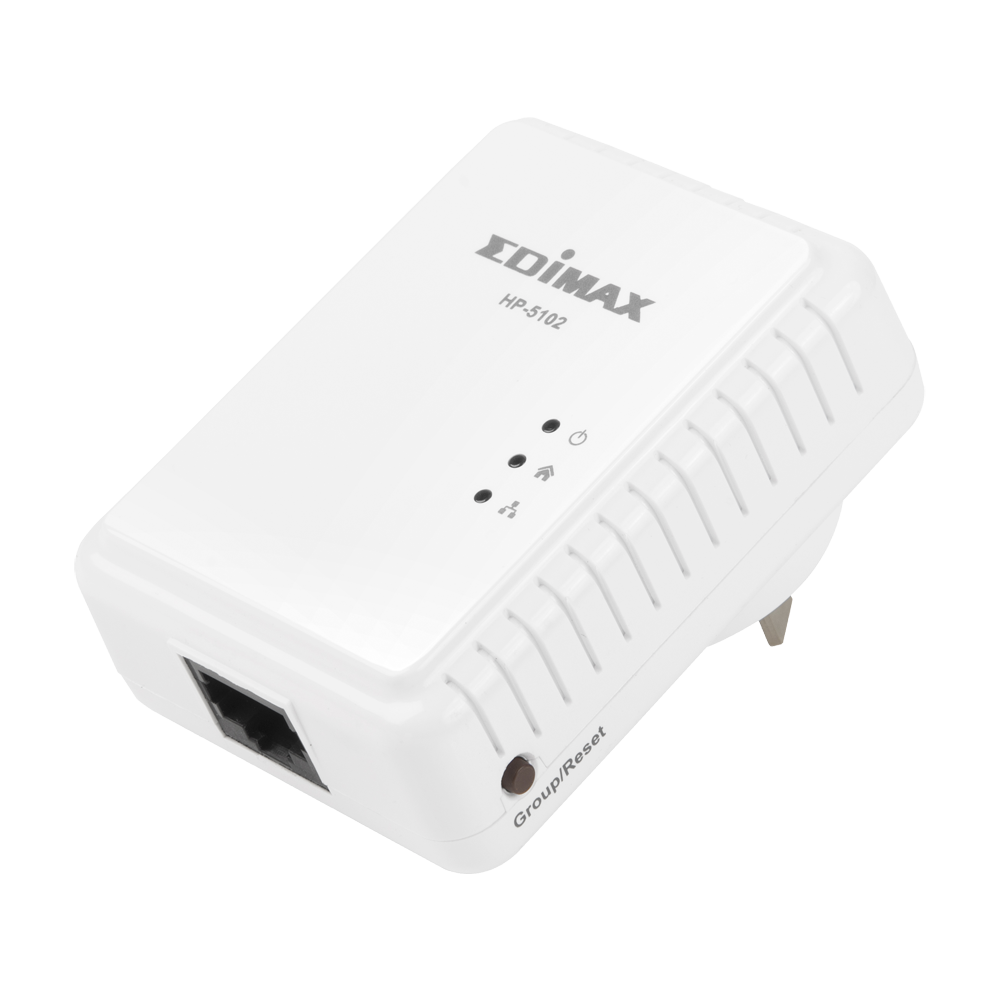

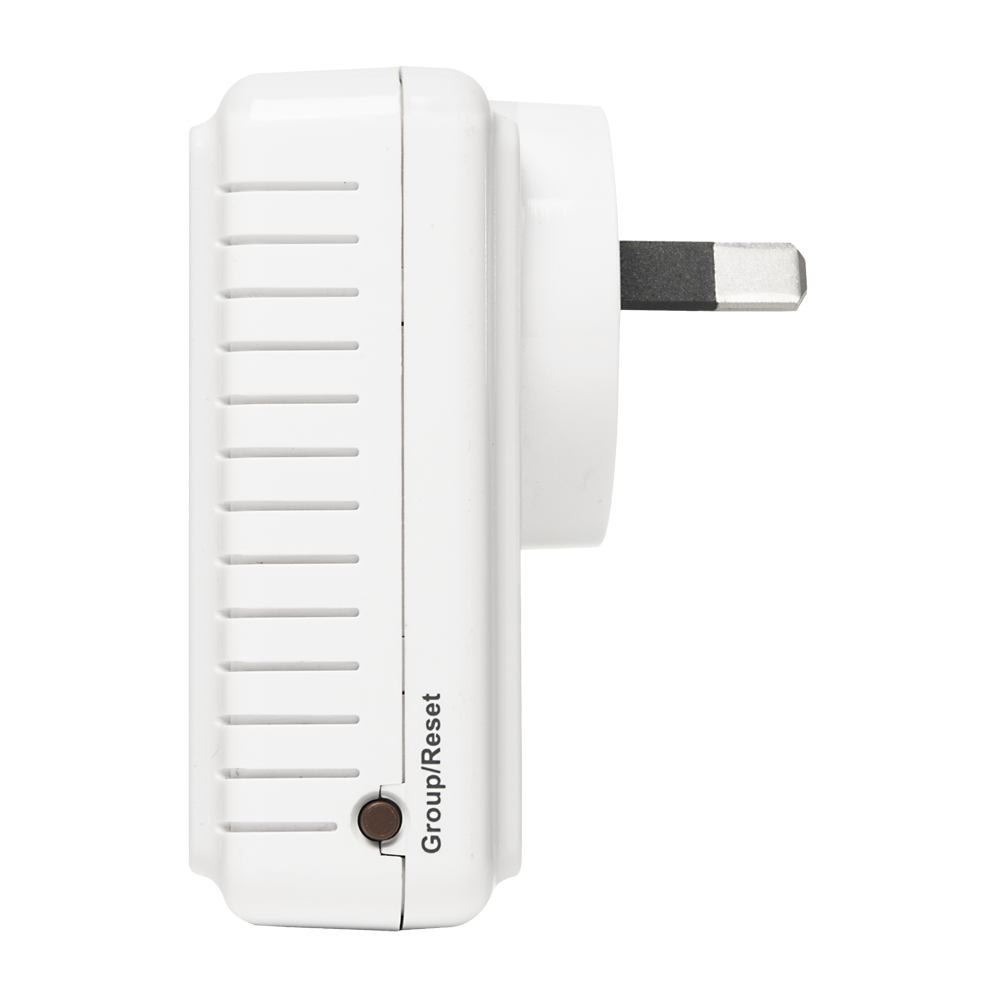

Hardware Combo Group/Reset Button
The Edimax HP-5102 has a combo group/reset button for simplified group and reset configurations. Press the group/reset button and the HP-5102 will help you set up a password for your network automatically, or reset the device to factory defaults.



Edimax HP-5102 500Mbps Nano PowerLine Adapter with Compact Size and Group Setting Button










APPLICATION DIAGRAM

  • Plug a HP-5102 into a power outlet and connect it to a broadband router.
  • Plug another HP-5102 into a power outlet and connect it to a computer's Ethernet port to establish a powerline connection.



Edimax HP-5102 500Mbps Nano PowerLine Adapter Application Diagram
​*Powerline adapters must be deployed in sets of two or more.

500/200Mbps is the maximum theoretical communication speed at the physical layer via electric power lines based on the IEEE 1901 standard.

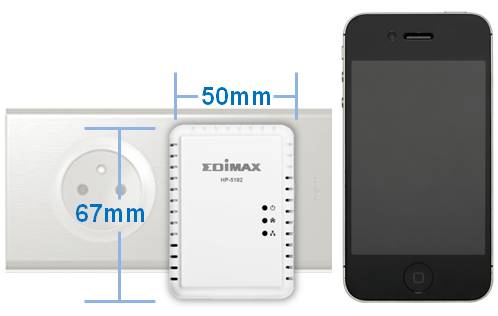

A compact, space-saving and stylish design won’t interfere with neighboring power sockets.

Edimax HP-5102 500Mbps Nano PowerLine Adapter with Compact Size, compare to iphone

Share


SPECIFICATIONS
​

Hardware

Standards

Effect Data Rate

•1 x Power jack
•1 x 10/100Mbps Ethernet LAN port
•1 x Group/Reset button
•LED indicators: power, Ethernet, powerline

•IEEE 1901
•IEEE 802.3
•IEEE 802.3u

•TCP: Up to 95 Mbps effective throughput
•UDP: Up to 95 Mbps effective throughput

Frequency Band

Modulation Schemes

Operating Range

•2-68MHz (with Mask)

•OFDM symbol modulation on line synchronization 1024/256/64/16/8-QAM, QPSK, BPSK, ROBO modulation

•Up to 300 meters

QoS

Nodes

IGMP

•4 levels priority based contention access, and multi segment bursting
•8 levels VLAN priority field, TOS field
•QoS classification by destination MAC address and IP port

•Up to 15 slaves with 1 master, 16 total devices
•Max 8 bridged devices per station

•Support for IPv4/IGMPv1,v2,v3 snooping
•Support for IPv6 and MLDv1, v2 snooping
•Max 16 source addresses and group members

IC / Memory

Security

 Temperature & Humidity

•AR7420+1540
•1MB Flash
•8MB SDRAM

•128-bit AES link encryption with key management

•0-45 degrees Celsius
•10-90% (non-condensing)

Power Source / Power Consumption

Dimensions & Weight

 Certification

•100-240V AC, 50-60Hz
•4W

•67 x 50 x 32mm
•109g

•CE, FCC, LVD



​

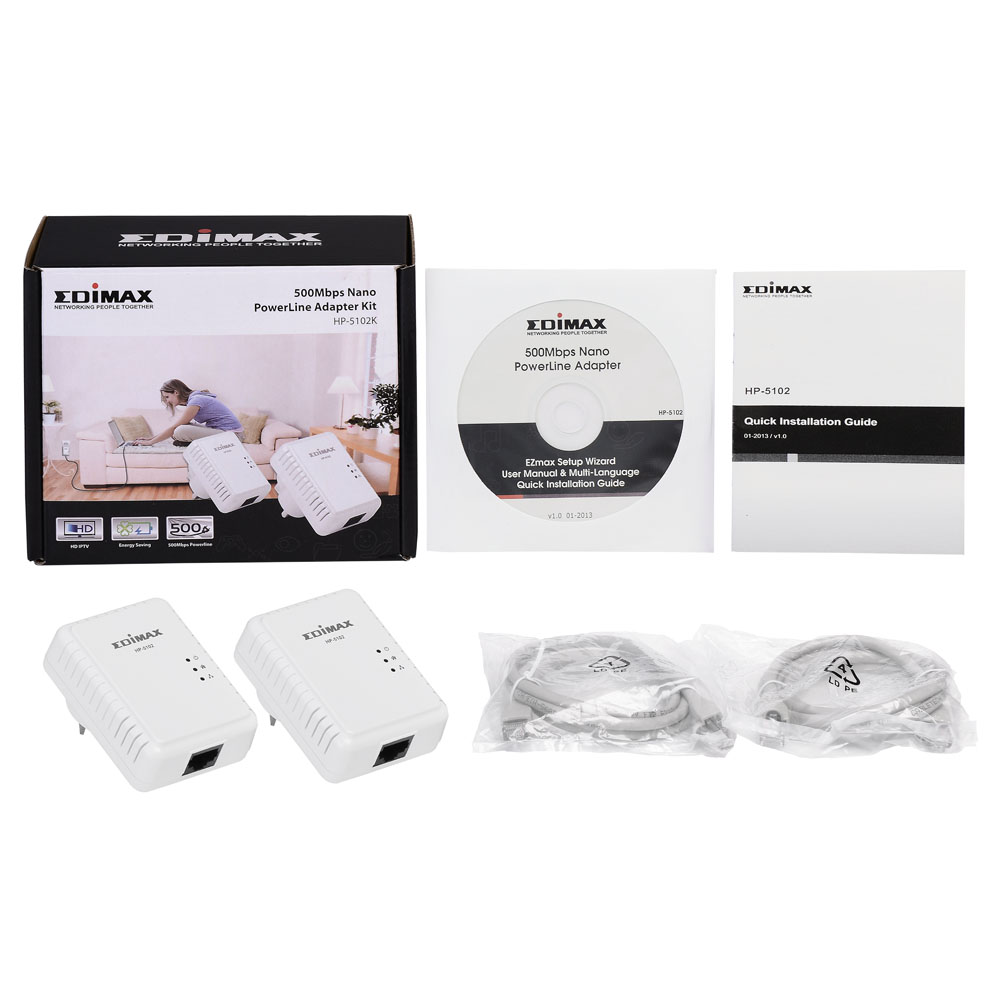

PACKAGE CONTENTS

  • Powerline adapter x 2
  • Quick installation guide x 1
  • CD with setup wizard, user manual & multi-language QIG x 1
  • Ethernet cable x 2

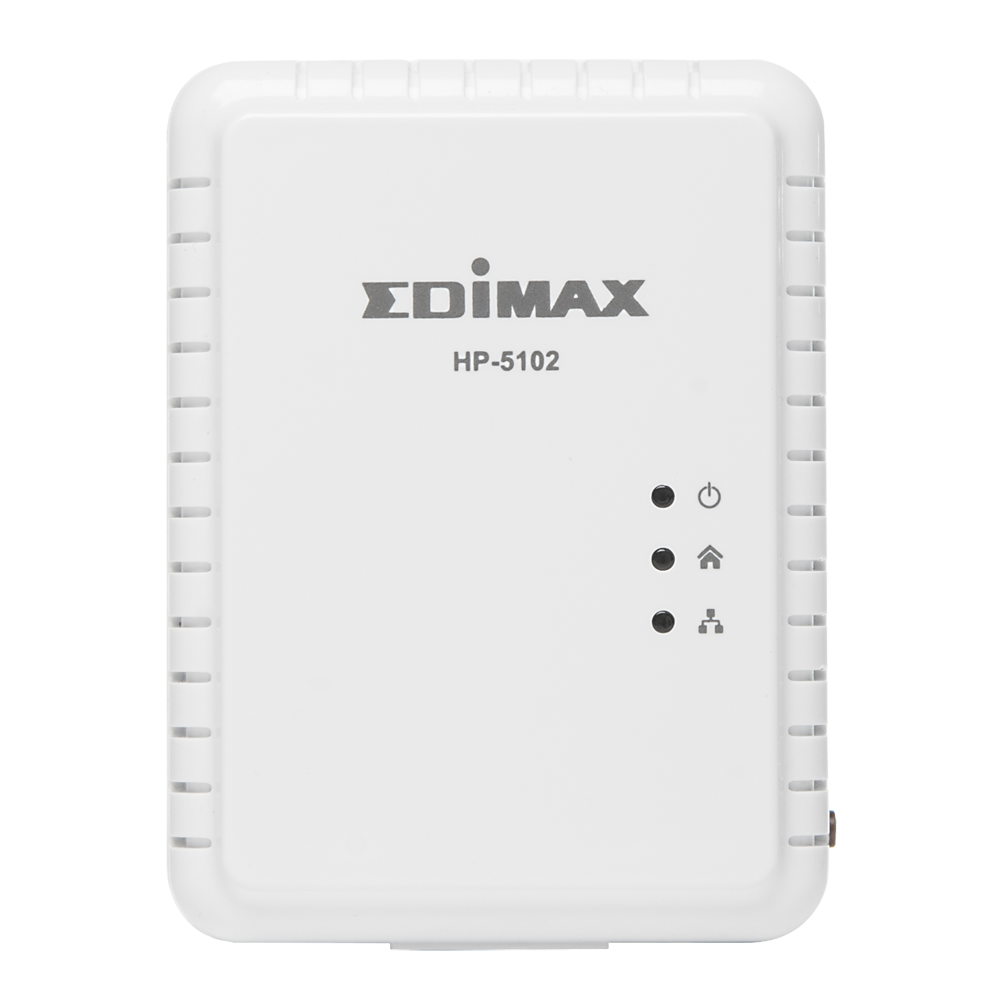

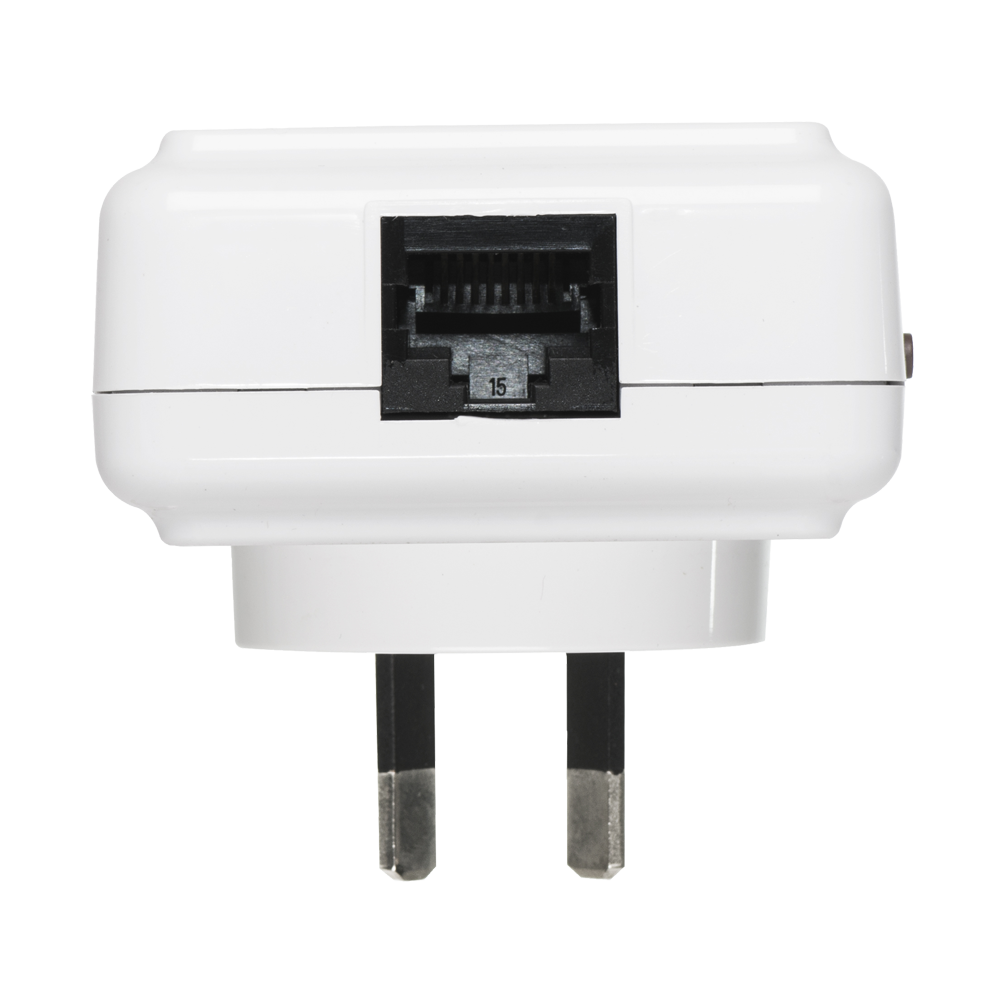

HARDWARE INTERFACE

Edimax HP-5102 500Mbps Nano PowerLine Adapter with Compact Size and Group Setting Button
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
