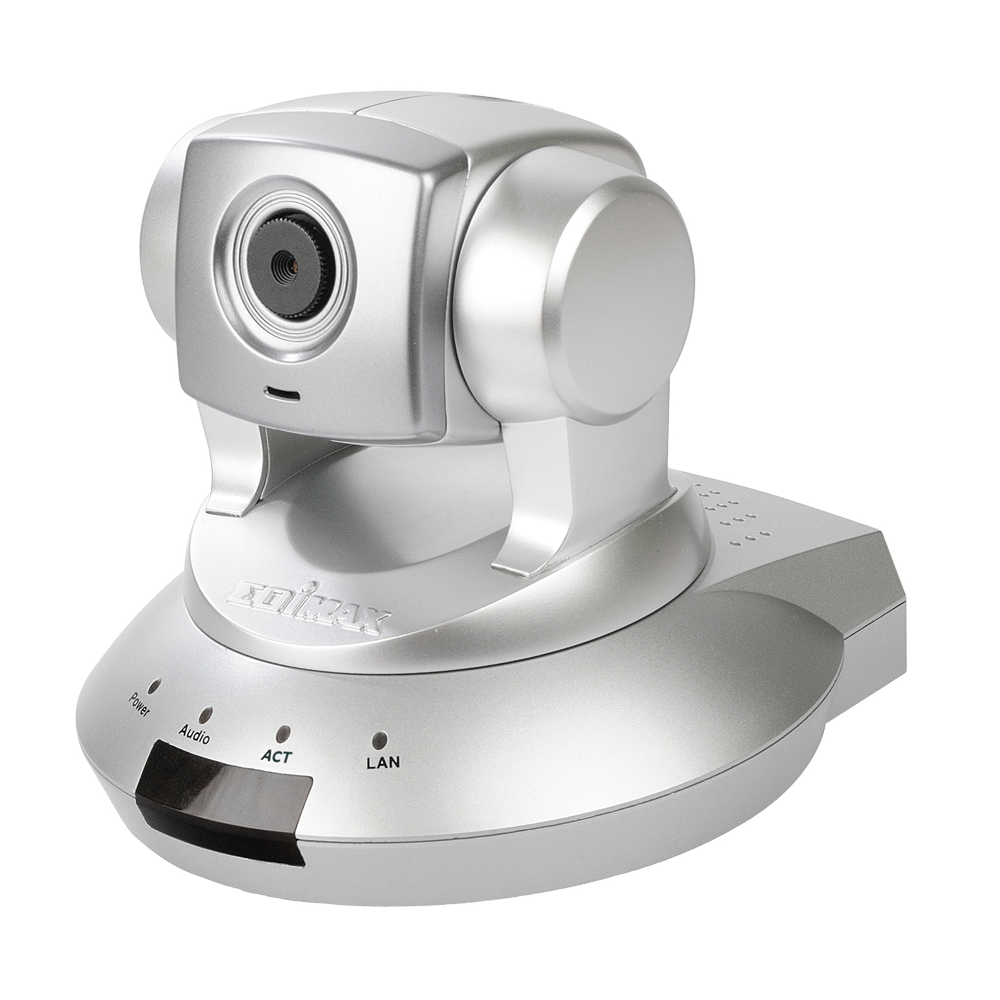

Fast Ethernet Dual Mode

IC-7000PT V2

  • Supports MPEG4 and M-JPEG video streaming
  • Supports motorized Pan/Tilt with a viewing angle (±355° horizontally and ±120 ° vertically)
  • Supports multiple profile to output MPEG4 and M-JPEG at the same time
  • Supports multi areas motion detection and snapshot to email and FTP
  • Supports pre-recording + post-recording up to 5 seconds for the triggered event
  • Includes 16-channel view and record utility to views up to 16 cameras simultaneously
  • Manual/Schedule/Cycle recording and Playback/Forward/Pause/Stop video with the utility
  • Supports 2-way audio
  • Built-in SDHC/SD card slot to store snapshots and recorded video locally to a SDHC/SD memory card
  • Supports 4 additional user login accounts
  • High speed hardware based compression
  • Supports Windows 2000/XP/Vista
  • Firmware upgradable




Get Smart iCatch
View IP cameras from your iPhone or HTC Magic anytime and anywhere



Supports motorized Pan/Tilt
The IC-7000PT(n) V2 features motorized Pan and Tilt with a viewing angle ±355 ° horizontally and ±120° vertically. You can view and control remotely via a browser or Edimax utility to monitor a wider range than normal Internet camera. It can be preset a specific angle to make the camera focus on this point accurately and quickly.

Allows multi users login simultaneously
This Internet Camera (IP Camera) allows multi users login to view the live video streaming simultaneously. The advanced video compression (M-JPEG:SXGA, VGA, QVGA and MPEG4:SVGA, VGA, QVGA) produces a high quality and high frame rate video streaming.

Supports M-JPEG and MPEG4 dual modes
Supports dual-mode video compression. You can choose M-JPEG mode or MPEG4 mode according to your network settings in order to achieve the highest video quality or faster video transmission.

Supports multi areas motion detection, pre-recording and post-recording
The IC-7000PT(n) V2 is a powerful mobile surveillance system. With the intelligent multi-area motion detection function, it monitors your home, pets or business effectively. You can pre-determine 3 trigger areas in the viewing area. Whenever motion is detected in these areas, the camera takes a snapshot / recording automatically and sends the image / video clipping of the events to email or ftp server. Besides, with pre-recording + post-recording function, the IC-7000PT(n) V2 can capture additional image frames prior to the event that provides securer home surveillance.

Supports 2-way audio
Includes an audio output for speaker connection and microphone, you can speak to remote site through web browser and listen the sound from the remote site.

Built in SDHC/SD card slot to store recording files locally
You can save the snapshot photos and the recorded video files locally to a SDHC or SD memory card. It gives the double secure once the Internet is disconnected so the snapshot cannot be sent to email or FTP.

Supports DDNS* and UPnP
The DDNS feature allows you to view IC-7000PT(n) V2 by typing a memorable URL (like www.edimax.com ) to a browser, rather than an IP address. It gives users less effort to remember the numeric IP address and DDNS is the solution for whom not having a fixed public IP address. UPnP allows Windows XP/Vista users access the Internet camera with a mouse click, no IP address needed.
*Users need to register with a DDNS server



Model NO.

IC-7000PT(n)V2

CPU+DSP

Prolific PL-1029 + 802.11n

Flash

4MB Flash

RAM

64MB SDRAM

Image Sensor

Micron MI-1320 1.3M Pixels CMOS Sensor

Lens

5 mm, Manual Focus, F=2.8

LAN Port

10/100M UTP Port x 1

Power

12V DC, 1A Power Adaptor

Dimension

108mm x 112mm x 108mm

Temperature

0~45 o C

Humidity

10~90% (Non-Condensing)

Certification

FCC Class B, CE Mark



*Beta version viewer for Win 7 is available. Please download it from “Driver” in Download Area.

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
