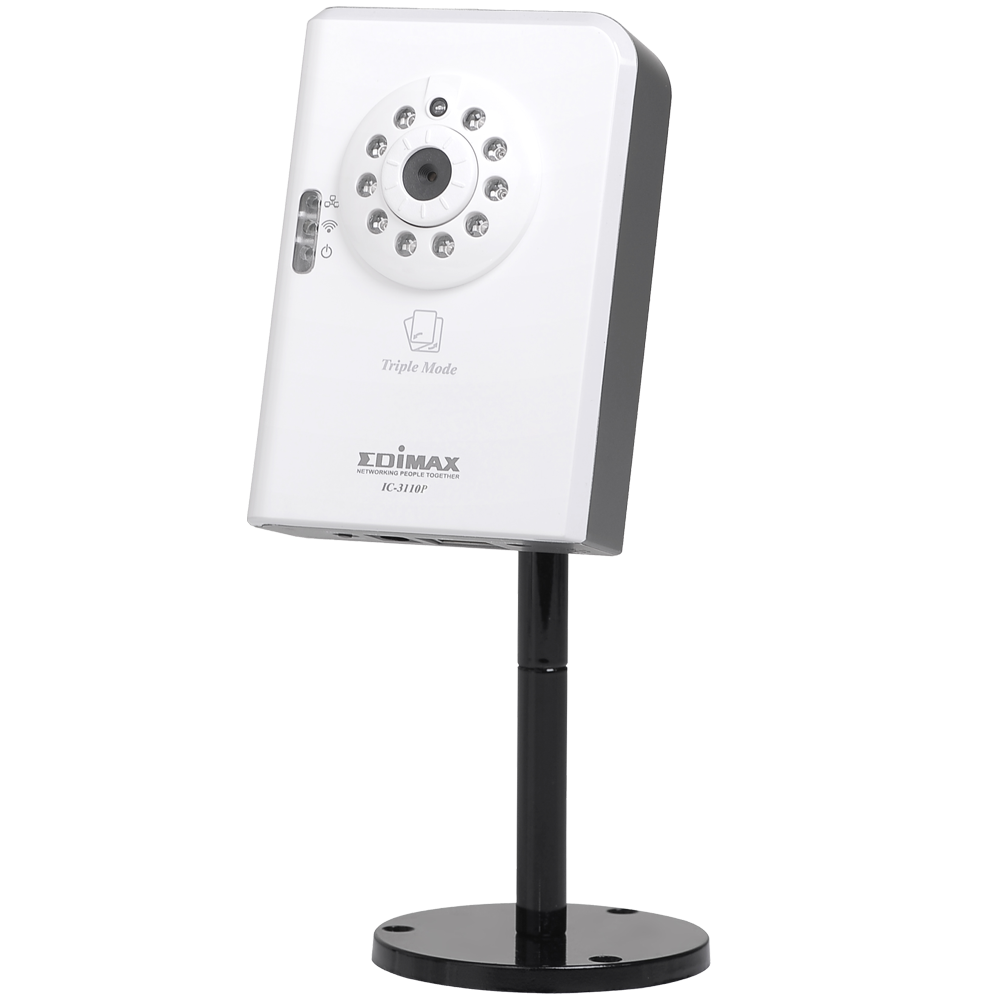

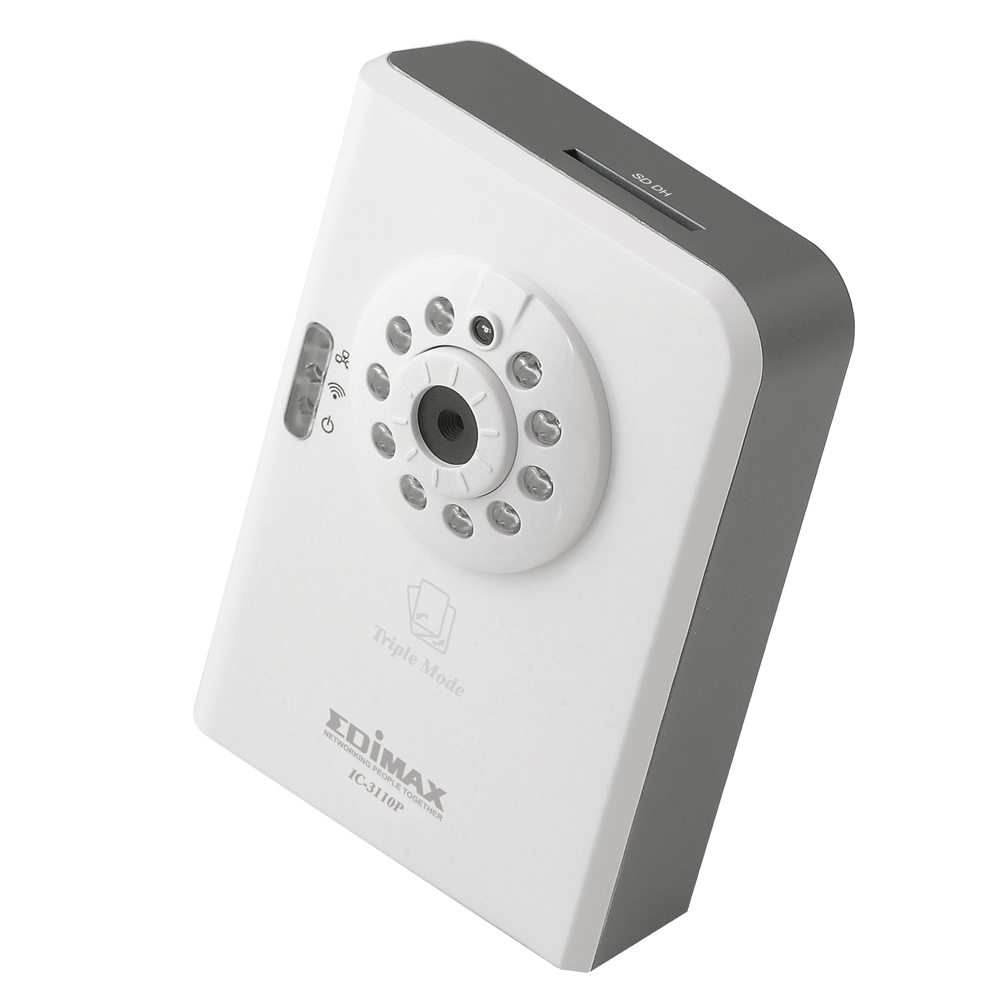

The Edimax IC-3110P network camera is a versatile monitoring device ideal for monitoring your home in daylight and at night. With Edimax’s innovative Plug-n-View technology, the camera connects to the cloud automatically, so you can monitor your home with a smartphone, tablet, or laptop computer no matter where you are. Its motion-triggered snapshot and recording feature ensures that you capture every criminal event. Its Power over Ethernet feature allows installation of the camera in places without a power outlet, or where a power outlet is too far away.

Edimax Plug-n-View
Edimax Plug-n-View technology makes it easy for you to keep an eye on the safety of your home, family, pets, and assets wherever you go. With Plug-n-View technology, you can set up your Edimax network camera in a few simple steps. The camera also connects to the cloud automatically, so you can access it remotely with a smartphone, tablet, or computer no matter where you are.

Night Vision
The built-in IR (infrared) LEDs and light sensor make this Edimax network camera perfect for capturing crisp and clear videos in low light conditions. It automatically switches to night vision mode and turns on the IR LEDs to illuminate the monitored area when it gets dark, ensuring that you get video footage of critical moments both in daylight and at night.

Motion-Triggered Snapshots & Recording
The powerful multi-area motion detection system built into this network camera ensures that you have evidence of a criminal event as soon as it occurs. You can pre-define multiple areas in the monitored range for motion detection; and when motion is detected in the specified areas, this network camera will produce snapshots or video footage of the criminal event immediately.



---

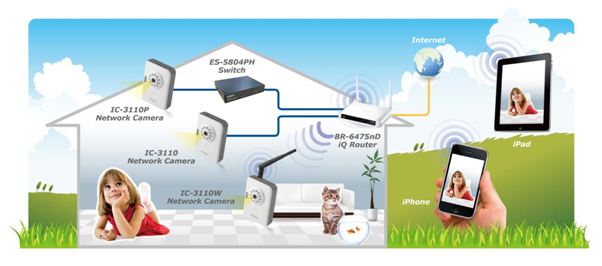

APPLICATION DIAGRAM
​

VIDEO

SPECIFICATIONS
​

Video / Audio	Standards	LED Indicators
1.3 megapixel CMOS sensor 1.0 lux 5mm, f/2.8 Recording format: AVI Video compression: H.264, MPEG‐4 & M‐JPEG 2-way audio	Fast Ethernet IEEE 802.3/802.3u PoE IEEE 802.3af	LAN Power/Cloud
Interface	Management	Memory
1 x Ethernet (RJ-45) port 1 x Power jack 1 x Audio output 1 x Microphone 1 x SDHC/SD card slot (up to 32GB)	EdiView Finder (Windows/Mac) 16-channel viewer Web management interface Firmware upgradable iPhone & iPad viewer app Android phone viewer app	4MB flash 64MB SDRAM
Temperature & Humidity	Power	Dimensions
0-40° Celsius 10-90% (non-condensing)	12V DC	113mm x 80mm x 43mm
Certifications
CE, FCC
