Robust Industrial Managed Switch

Durable, Reliable, Flexible & Smart Network for Harsh Environments

Edimax Pro Durable Industrial Switch, IEC Certified
Edimax Pro Industrial Switch, IGS-5416P, IGS-5408P, IGS-5208



Durable Performance Network
that You Can Rely on

The ruggedized design of Edimax Pro industrial switch series is certified to withstand harsh environment and provides reliable dual redundancy for efficiency.

  • Edimax Pro industrial switch, durable Certified Ruggedized Design

    Certified Ruggedized Design

    Equipped with anti-dust IP30-rated aluminum alloy case, the switch is designed and certified to withstand a high degree of vibration, shock, free-fall protection and against ESD/EMI surge for harsh environments.*

  • Edimax Pro Industrial Switch, durable, rugged, extreme high & low temperature Resistance

    High/Low Temp. Resistance

    The industrial switch operates with a wide temperature range from -40°C to 75°C (-40°F to 167°F) for industrial and outdoor network deployment with capability of withstanding the extreme hot and freezing environments.

  • Edimax Pro industrial switch, durable, rugged, reliable network & power redundancy

    Reliable Dual Redundancy

    Supports network redundancy with RSTP, MSTP, ERPS, LACP and power redundancy with two power inputs to ease the unexpected risk and ensure stable and reliable network service quality.

*The switch also has industrial-grade certification of EMC (Electromagnetic Compatibility) 61000-6-2, 61000-6-4 and EMS (Electromagnetic Sensitivity) IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field).

For Harsh Environments in IIoT and Smart City

Ideal solution for industrial networks such as automotive, factory automation, oil and gas, mining, military, transportation, substation, energy and outdoor applications of railways, roads, tunnels, smart cities, city surveillance and traffic monitoring.

  • Manufactureing, Automotive

    Edimax Pro Industrial Switch solution, manufacturing automotive

  • Energy Plant

    Edimax Pro Industrial Switch solution, Energy Plant

  • Transportation, Smart City

    Edimax Pro Industrial Switch solution, Transportation, Smart City

  • Factory Automation

    Edimax Pro Industrial Switch solution, Factory Automation


Noteworthy Benefits for Your Network

Edimax Pro industrial switch series is designed for easy, flexible deployment and management with ever better cost efficiency by reducing downtime, extending system lifecycle and lowering maintenance costs with more features as below but not last.

  • Edimax Pro Industrial Switch, PoE, PD alive check, IGS-5416P, IGS-5408P, IGS-5208

    PoE PD Alive Check

    PoE Powered Device (PD) alive check to monitor real-time status of connected PDs and enable to reboot fail PDs to enhance the reliability of the network.

  • Edimax Pro Industrial Switch, USB Console Port, IGS-5416P, IGS-5408P, IGS-5208

    USB Console Port

    Designed with the USB console port for convenient system backup, restoration and upgrade to enhance maintenance efficiency and reduce system downtime.

  • Edimax Pro Industrial Switch, Long Range Fiber Link, Gigabit SFP Slot, IGS-5416P, IGS-5408P, IGS-5208

    Long-Range Fiber

    Featuring with dual-speed fiber SFP slots, connects to uplink to backbone core switch and monitoring data center in long distance from 550M to 30KM.*

  • Edimax Pro Industrial Switch, Smart & Secure Management, IGS-5416P, IGS-5408P, IGS-5208

    Smart & Secure

    The industrial switch features smart and simple network monitoring tools that allow for improved network efficiency and security.

*The maximum fiber optic cable distance is subject to the SFP transceiver specification.

High-Availability with Reliable System Redundancy

Supports Ethernet Ring Protection Switching (ERPS V2), the industrial switch enables the network to provide service and operate without interruption with failover and recovery time less than 20ms. Equipped with dual redundant power inputs with overload current protection ensures the network reliable operation.

  • Network Redundancy

    Edimax Pro Industrial Switch, Network Redundancy, ERPS V2, IGS-5416P, IGS-5408P, IGS-5208
  • Power Redundancy

    Edimax Pro Industrial Switch, Power Redundancy, dual redundant power inputs, overload current protection, IGS-5416P, IGS-5408P, IGS-5208

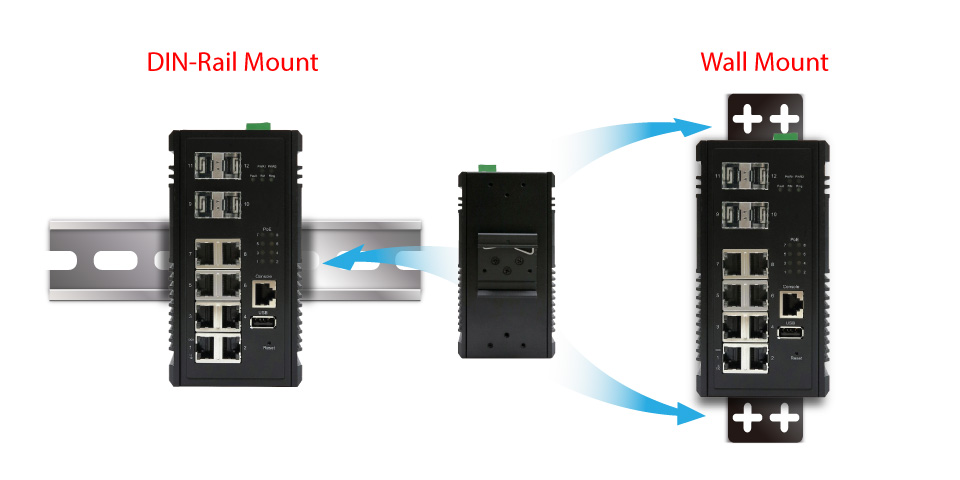

Easy and Flexible Deployment

Edimax Pro industrial switch series is for easy, flexible deployment and cost-saving installation with the DIN-rail mounting and wall mounting enabled design and allows to be deployed in a variety of applications.

  • Edimax Pro Industrial Switch, easy and flexible deployment, DIN-Rail or Wall Mounting

Edimax Pro Industrial Switch, durable, enduring and fanless design, IGS-5208, IGS-5408P, IGS-5416P
Edimax Pro Industrial Switch, durable, enduring and fanless design, IGS-5208, IGS-5408P, IGS-5416P

Enduring and Fanless Design

With dedicated and outstanding electrical and mechanical designs of the component and compact aluminum alloy housing, the industrial switch is optimized for the heat transfer without fan required and ensures excellent performance in the extreme hot and freezing environments.

Edimax Pro Industrial Switch, durable, enduring and fanless design, IGS-5208, IGS-5408P, IGS-5416P

Enhance Your Network to be Ruggedized

Durable, Reliable, Flexible & Smart Network for Harsh Environments.

  • Edimax Pro Industrial Switch, easy and flexible deployment, Gigabit, PoE, DIN-Rail or Wall Mounting, Rugged, Durable, Harsh Environments

Robust Industrial Managed Switch

Enriched, Reliable, Smart Features

  • Supports RSTP, MSTP, ERPS, LACP for network redundancy to ensure the network connection reliability.
  • Equipped with redundant power inputs (both Digital Input (DI) and Digital Output (DO)) and embedded protecting circuit to avoid damaging the switch.
  • Supports Storm Control to suppress a packet storm in a network (Storm Protection).
  • DHCP snooping to protect the integrity of legitimate DHCP server and its operations.
  • Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping and Mirror.
Edimax Pro Industrial Switch, durable, rugged, robust, Gigabit, PoE, SFP, IGS-5416P, IGS-5408P, IGS-5208, IIoT, Smart City, Smart Factory, Automation

Industrial Switch that You Need......

  • Edimax Pro Industrial Switch, Gigabit, SFP, fiber optical, PoE, robust, durable, rugged, ruggedized, IGS-5416P

    IGS-5416P

    • 8 x 100/1000Base T PoE+ Ports,
      8 x 100/1000BaseT Ports,
      4 x 10/1000BaseSX/LX SFP Slots
    • Total 240W PoE Power Budget
    • RJ-45 & USB 2.0 Console Ports
    • Smart and Easy Management Web-Based Tool and Security

    Learn More

  • Edimax Pro Industrial Switch, Gigabit, SFP, fiber optical, PoE, robust, durable, rugged, ruggedized, IGS-5408P

    IGS-5408P

    • 8 x 100/1000Base T PoE+ Ports,
      4 x 10/1000BaseSX/LX SFP Slots
    • Total 240W PoE Power Budget
    • RJ-45 & USB 2.0 Console Ports
    • Smart and Easy Management Web-Based Tool and Security


    Learn More

  • Edimax Pro Industrial Switch, Gigabit, SFP, fiber optical, robust, durable, rugged, ruggedized, IGS-5208

    IGS-5208

    • 8 x 100/1000BaseT Ports,
      2 x 10/1000BaseSX/LX SFP Slots
    • Total 240W PoE Power Budget
    • RJ-45 & USB 2.0 Console Ports
    • Smart and Easy Management Web-Based Tool and Security


    Learn More
