AC600 Wireless Dual-Band Mini USB Adapter
EW-7811UTC
  • Complies with draft IEEE 802.11ac standard and backward compatible with wireless 802.11a/b/g/n standards
  • Dual-band wireless connectivity for 2.4GHz or 5GHz
  • Maximum Wi-Fi speeds of 150Mbps (2.4GHz) or 433Mbps (5GHz)
  • Features a hardware WPS (Wi-Fi Protected Setup) button for easy wireless connections
  • Features easy setup wizard
  • Supports Windows XP/Vista/7/8, Linux and Mac OS X drivers



The next generation 802.11ac wireless standard is set to revolutionize Wi-Fi. Super-speed 802.11ac dual-band routers are already available but wireless devices are still stuck with 802.11n technology. Upgrade your wireless device to dual-band 802.11ac with the fastest possible USB 2.0 connectivity for blistering Wi-Fi speeds on the interference free 5Ghz frequency band.



Next Generation Wi-Fi Standard
The Edimax EW-7811UTC is the next generation of Wi-Fi adapter, compatible with the draft 802.11ac standard and delivering speeds of up to 433Mbps at 5GHz - almost three times as fast as 802.11n. Upgrade PCs and notebooks to super high speed 802.11ac Wi-Fi and enjoy streaming video and data.

Edimax EW-7811UTC AC600 Wireless Dual-Band Mini USB Adapter 3x of 11n












Dual-Band Connectivity
Enjoy better performance and greater flexibility for your Wi-Fi devices, using dual-band connectivity. The EW-7811UTC provides connectivity for the 2.4GHz band at speeds of 150Mbps or 5Ghz band at speeds of 433Mbps. You can surf the internet and check your email on the 2.4GHz band, or select the 5GHz band for online gaming and video streaming.

Edimax EW-7811UTC AC600 Wireless Dual-Band Mini USB Adapter 11ac Dual-Band

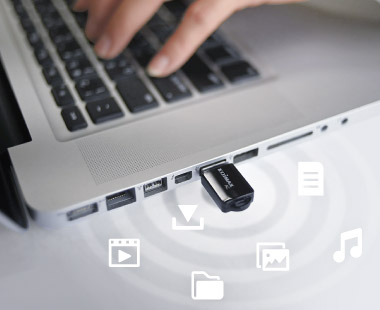

Download and Stream Anywhere
Use the EW-7811UTC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at lightning speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi.

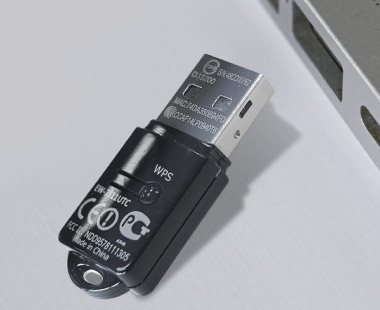

Edimax EW-7811UTC AC600 Wireless Dual-Band Mini USB Adapter Mini-Size












Compact & Convenient
Designed for efficiency and performance, the mini-sized adapter is lightweight, sleek and portable. Incorporating 11ac technology into users’ lifestyles and unlocking a new world of potential Wi-Fi applications, the low-profile mini-adapter sits almost unnoticed in any USB drive and travels with your laptop wherever your lifestyle takes it.



Edimax EW-7811UTC AC600 Wireless Dual-Band Mini USB Adapter Mini-Size














Wi-Fi Protected Setup (WPS) Button
The EW-7811UTC has a one-click Wi-Fi Protected Setup (WPS) button to help you set up and activate a secure wireless network in a snap.




Edimax EW-7811UTC AC600 Wireless Dual-Band Mini USB Adapter Mini-Size










 APPLICATION DIAGRAMS



Edimax EW-7811UTC AC600 Wireless Dual-Band Mini USB Adapter Application Diagram



The package comes with a mini-CD which won't work with slot-loading CD-ROM drive (like most of the Apple computers), tray-loading CD-ROM without a smaller well, or tray-loading CD-ROM installed in vertical position. Users may need to download the materials (driver, user's manual, etc.) from Edimax website.



SPECIFICATIONS


HARDWARE

STANDARDS

FREQUENCY BAND

•1 x USB 2.0 Type A
•1 x Hardware WPS Button
•1 x Link/Activity LED

•2.4GHz: IEEE 802.11b, 802.11g, 802.11n
•5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n

•2.4000 - 2.4835GHz (subject to local regulations)
•5.150 - 5.825GHz (subject to local regulations)

OUTPUT POWER

INSTALLATION

OPERATION RANGE

•2.4GHz
11b (11Mbps): 17dBm±1.5dBm
11g (54Mbps): 15dBm±1.5dBm
11n (20MHz, MCS7): 14dBm±1.5dBm
11n (40MHz, MCS7): 14dBm±1.5dBm
•5GHz
11a (54Mbps): 14dBm±1.5dBm
11n (20MHz, MCS7): 13dBm±1.5dBm
11n (40MHz, MCS7): 13dBm±1.5dBm
11ac (80MHz, MCS7): 12dBm±1.5dBm

•Easy setup wizard
•Hardware WPS Button for Easy Wireless Connections

•11a: 6/9/12/24/36/48/54Mbps
•11b: 1/2/5.5/11Mbps
•11g: 6/9/12/24/36/48/54Mbps
•11n (20MHz): MCS0-7 (up to 72Mbps)
•11n (40MHz): MCS0-7 (up to 144Mbps)
•11ac (80MHz): MCS0-9 (up to 433Mbps)

LED

SECURITY

TEMPERATURE & HUMIDITY

•Link/Activity

•WEP 64/128-bit, WPA, WPA2, 802.1x
•Hardware & Software WPS Configuration

•Max. 95% (non-condensing)
•32 - 104°F (0 - 40°C)

WEIGHT

DIMENSIONS

 CERTIFICATIONS

•3g

•40 (H) x 16 (W) x 7 (D) mm

•CE/FCC





PACKAGE CONTENTS
  • Wireless USB adapter (1 pcs)
  • Quick installation guide (1 pcs)
  • CD with setup wizard, driver and multi-language QIG (1 pcs)
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
