AC1200 Dual-Band Wi-Fi PCI-E Adapter

EW-7822PIC

  • Super High-Speed AC1200 Dual-Band Wi-Fi: Next generation AC1200 Wi-Fi for HD streaming and gaming with transfer speeds up to 300Mbps (2.4GHz) or 867Mbps (5GHz)
  • Long Range: High-output power design with high-gain antennas to penetrate walls for better Wi-Fi performance
  • Ideal for Gaming PCs: Instant Wi-Fi upgrade for your desktop. High-speed AC1200 Wi-Fi without inconvenient cables
  • Flexible Installation & Placement: Low profile bracket included and magnetic antenna stand for flexible antenna positioning


The next generation 802.11ac wireless standard is revolutionizing Wi-Fi. Super-speed 802.11ac dual-band routers are already available but wireless devices are still stuck with 802.11n technology. Upgrade your desktop computer to dual-band 802.11ac with a PCI-E adapter for blistering Wi-Fi speeds on the interference free 5GHz frequency band. The EW-7822PIC features two detachable high gain antennas providing high-performance Wi-Fi coverage. Including an additional magnetic stand to find the best antenna location to optimize wireless operation range and backwards compatible with 802.11a/b/g/n wireless devices.

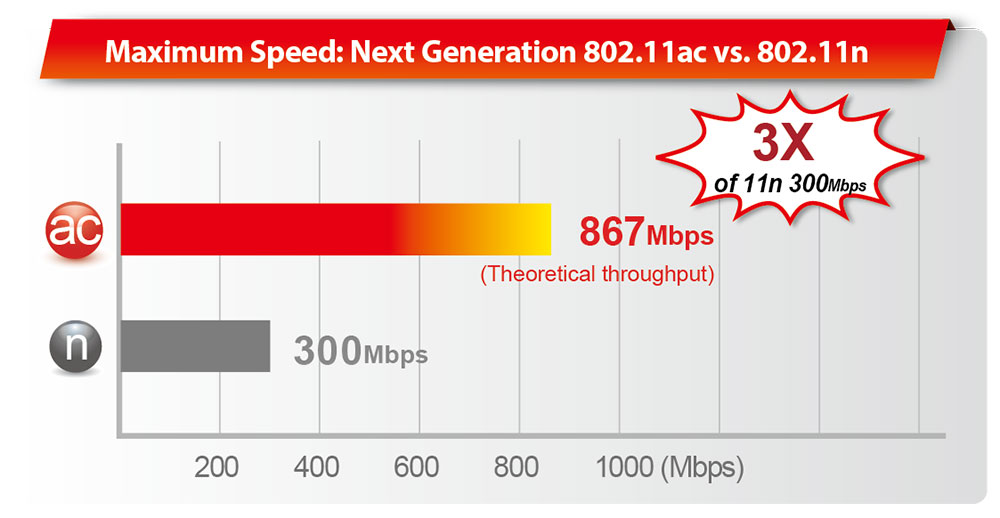

Super High-Speed AC1200 Wi-Fi
Compatible with the IEEE 802.11ac standard and delivering speeds of up to 867Mbps at 5GHz, almost three times as fast as 802.11n. Upgrade PC’s to super high speed 802.11ac Wi-Fi and enjoy streaming video and data.


Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, Super High-Speed AC1200 Wi-Fi






Dual-Band Connectivity
Enjoy better performance and greater flexibility for your desktop with dual-band connectivity. The EW-7822PIC provides connectivity for the 2.4GHz band at speeds of 300Mbps or 5GHz band at speeds of 867Mbps. You can surf the internet and check your email on the 2.4GHz band, or select the 5GHz band for online gaming and video streaming.

Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, Dual-Band Super High-Speed AC1200 Wi-Fi





Ideal for Gaming PCs
The EW-7822PIC  is a perfect upgrade for desktop gaming PCs. Quickly add high performance, long range Wi-Fi ideal for online gaming where connection speeds are critical. Enjoy ultra-fast Wi-Fi connection speeds with a simple PCI-E upgrade.

Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, Dual-Band Super High-Speed AC1200 Wi-Fi

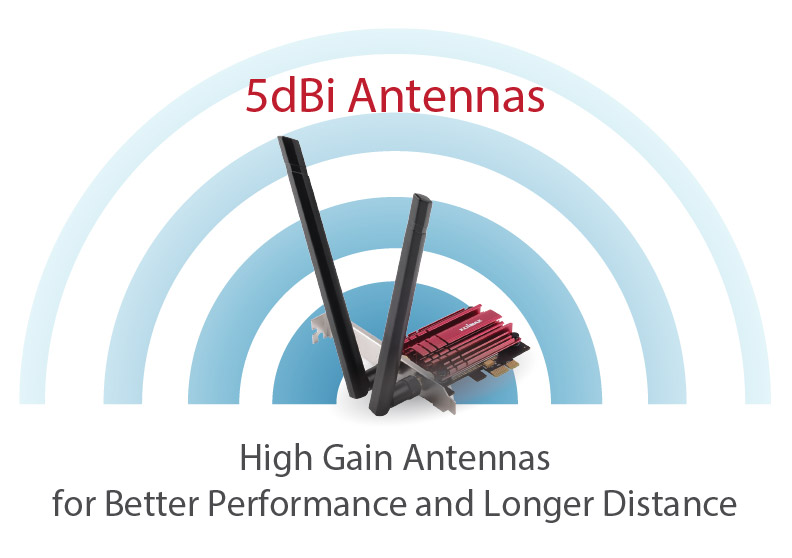

5dBi High Gain Antenna
High gain antennas provide a high performance long-range connection to your wireless network.

Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, Dual-Band Super High-Speed AC1200 Wi-Fi








Magnetic Stand for Enhanced Wireless Signal
The EW-7822PIC comes with a free magnetic stand which features two antenna connectors to screw in the detachable antennas and a 1 meter cable for flexible placement. Fine-tune the antenna position for peak performance at no extra cost.

Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, Dual-Band Super High-Speed AC1200 Wi-Fi






Download and Stream Wirelessly
Use the EW-7822PIC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at lightning speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi.

Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, Dual-Band Super High-Speed AC1200 Wi-Fi

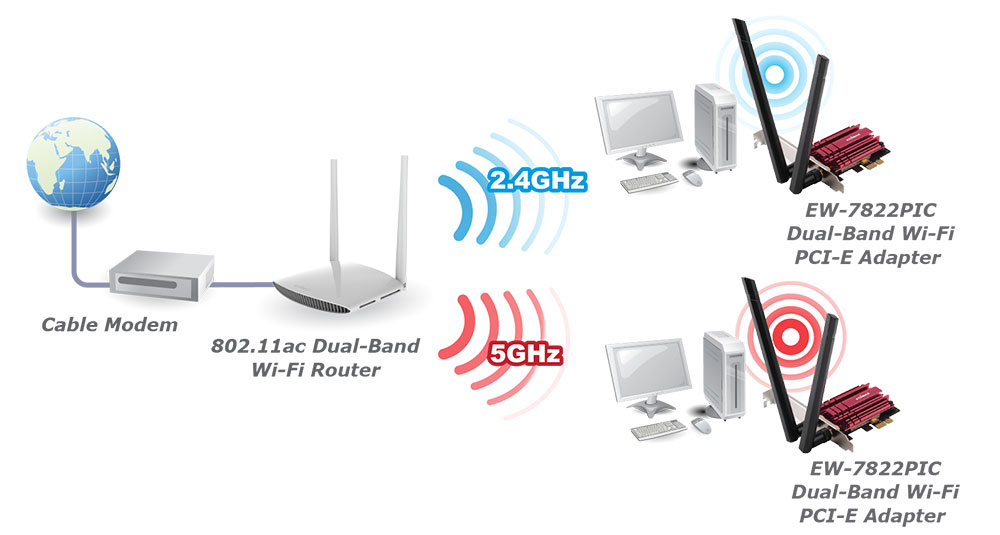

APPLICATION DIAGRAM


Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, application diagram



SPECIFICATIONS

HARDWARE

STANDARDS

FREQUENCY BAND

•1 x 1 x PCI-E adapter
•1 x Link/Activity LED
•2 x Detachable high gain antennas

•2.4GHz: IEEE 802.11b, 802.11g, 802.11n
•5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n

•2.4000 - 2.4835GHz
•5.745 - 5.825GHz (FCC)
•5.150 - 5.250GHz (R&TTE)

OUTPUT POWER

RECEIVE SENSITIVITY

OPERATING DATA RATE

•2.4GHz
11b (11Mbps): 18dBm±1dBm
11g (54Mbps): 15dBm±1dBm
11n (20MHz, MCS7): 14dBm±1dBm
11n (40MHz, MCS7): 14dBm±1dBm
•5GHz
11a (54Mbps): 17dBm±1dBm
11n (20MHz, MCS7): 15dBm±1dBm
11n (40MHz, MCS7): 15dBm±1dBm
11ac (80MHz, MCS9): 13dBm±1dBm

•2.4GHz
11b (1Mbps): -91dBm±1dBm
11g (6Mbps): -87dBm±1dBm
11n (MCS0): -85dBm±1.5dBm
•5GHz
11a (6Mbps): -90dBm±1.5dBm
11n (MCS0): -90dBm±1.5dBm
11ac (MCS0): -75dBm±1.5dBm

•11a: 6/9/12/24/36/48/54Mbps;
•11b: 1/2/5.5/11Mbps;
•11g: 6/9/12/24/36/48/54Mbps
•11n (20MHz): MCS0-15 (up to 144Mbps)
•11n (40MHz): MCS0-15 (up to 300Mbps)
•11ac (80MHz): MCS0-9 (up to 867Mbps)

LED

SECURITY

TEMPERATURE & HUMIDITY

•Link/Activity

•WEP 64/128-bit, WPA and WPA2

•Max 95% (non-condensing)
•32 - 104°F (0 - 40°C)

DIMENSIONS & WEIGHT

CERTIFICATIONS

  ACCESSORIES

•120(L) x 93(W) x 18(H) mm
•80g (without antennas)

•120g (with antennas)

•CE/FCC

•1 x Magnetic Stand with 1 meter cable

•1 x Low Profile Bracket




PACKAGE CONTENTS
  • 1 x PCI-E Aadapter
  • 2 x Detachable High Gain Antennas
  • 1 x Magnetic Antenna Stand with 1 Meter Cable
  • 1 x Low Profile Bracket
  • 1 x Quick Installation Guide
  • 1 x CD-ROM (Including the Setup Wizard and Multi-languages Quick Installation Guide)
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
