N300 Universal Wi-Fi Bridge for Smart TV, Blu-ray and Gaming
CV-7428nS
  • Wireless streaming: Complies with wireless IEEE 802.11b/g/n standards
  • HDTV video streaming: Works with smart TVs
  • Home entertainment: Supports up to five devices - enjoy HDTV video, Internet video, music and online games
  • Universal compatibility: Converts any wired network devices to wireless, including printers, NAS and set-top boxes.

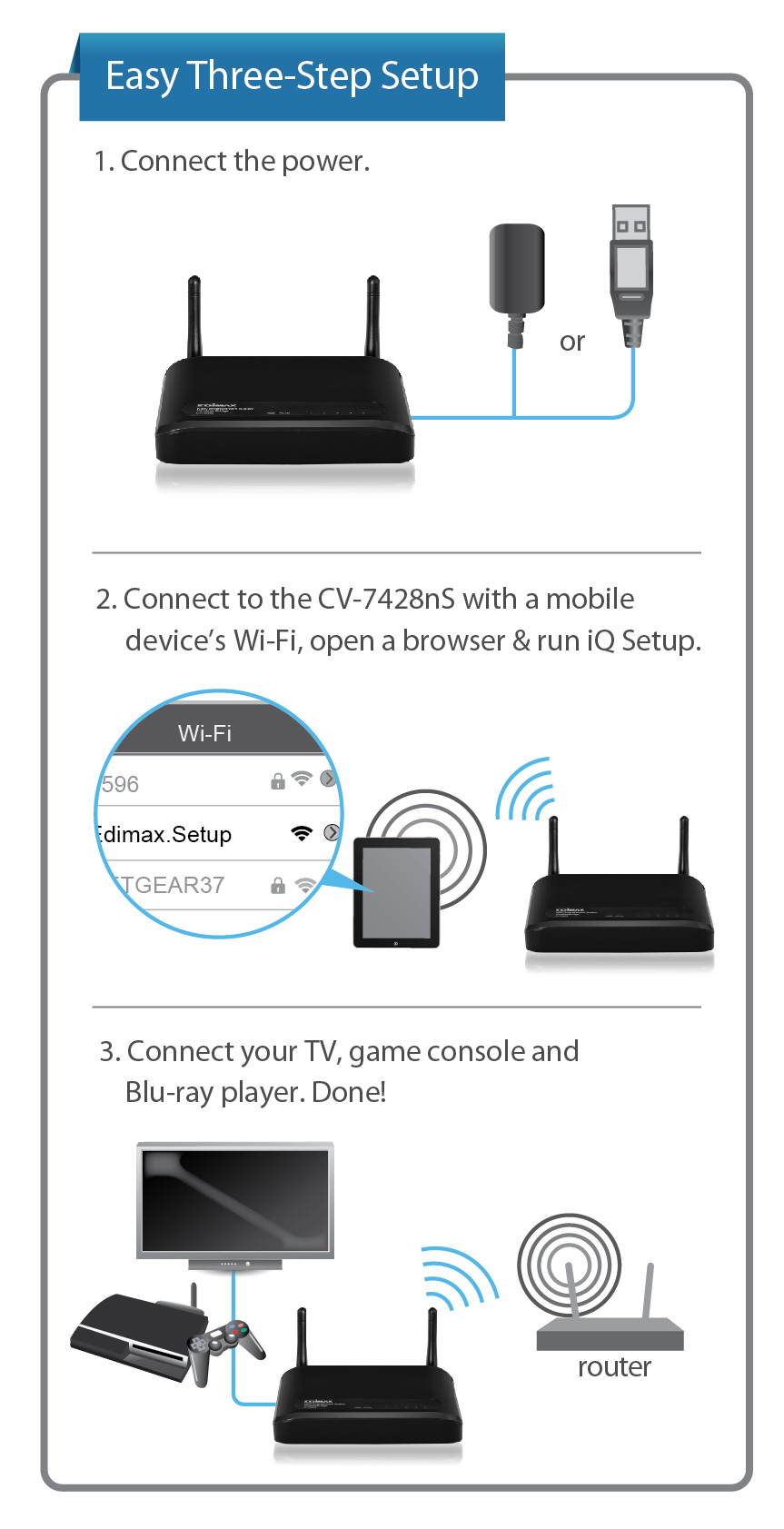

  • Easy setup: Features iQ Setup and WPS for smart, automatic and quick installation



Convert Wired Ethernet to Wireless
Eliminates annoying cables


Edimax CV-7428nS convert_to_Wireless.jpg












Universal Compatibility
Works with any Ethernet-enabled device, including smart TVs, Blu-ray/DVD players, game consoles, DVRs, Set-top-boxes




Edimax CV-7428nS work_with_any ethernet device.jpg












Plug & Play
Hardware WPS button for easy one-touch setup


Edimax CV-7428nS Plug&Play.jpg












Home Entertainment
Wi-Fi bridge for up to 5 devices


Edimax CV-7428nS Home_Entertainment.jpg











FEATURES



Wireless 11n speed
Complies with wireless IEEE 802.11b/g/n standards, with data rates up to 300Mbps. Converts wired LAN to wireless, and may also upgrade existing low-speed 802.11b/g devices to faster 802.11n speeds.

Supports multiple devices
Equipped with five 10/100Mbps Ethernet ports, to connect to devices such as smart TVs, Blu-ray/DVD players, game consoles, DVRs, PCs, and set-top boxes.

WPS hardware button
Hardware WPS (Wi-Fi Protected Setup) button allows easy installation into existing home wireless networking environments. Simply press the WPS button on the device and the home wireless router.

Smart iQ Setup
​Features user-friendly browser-based iQ Setup for smart, automatic and quick installation. Previously problematic settings can be completed with just a few clicks.

WPA/WPA2 advanced wireless encryption
Supports various wireless encryptions protocols, including WEP 64/128 bit, WPA and WPA2.

Green and energy-saving
Supports IEEE802.3az Energy Efficient Ethernet (EEE) and implements wireless green technology, which can reduce power consumption by 40% to 80%, by adjusting power to wired and wireless connections depending on usage.

External antenna with longer wireless distances
Equipped with external dipole antennas for better wireless transmission range and coverage. The device can be placed in a living room far away from the wireless router, yet still provide smooth Internet video and online gaming experiences.















APPLICATION DIAGRAMS



Bridges Wired Internets Devices
The Wi-Fi bridge offers a wireless connection to wired devices, allowing even Ethernet-only devices to go online wirelessly.


Edimax CV-7428nS application_bridge.jpg










Suitable for Home Environments
The wide operating range of the device means it can be installed away from the wireless router or access point, yet still provide wireless connectivity to attached devices.


Edimax CV-7428nS application_house.jpg







 VIDEO





SPECIFICATIONS


Features

ADSL Frequency Band

Wireless Standards & Data Rates

•Wireless streaming
•HDTV video streaming
•Enjoy Internet video, music and online games

•2.4 GHz(Industrial Scientific Medical Band)

•IEEE 802.11n (up to 300Mbps)
•IEEE 802.11g (up to 54Mbps)
•IEEE 802.11b (up to 11Mbps)

Hardware Interface

Management

Security

•5 x RJ-45 LAN port
•LED Indicators: Power, Wireless, LAN ports.
•External antennas
•WPS/Reset button
•Power jack

•12-language user interface
•Upgradable firmware

•64/128-bit WEP encryption and WPA-PSK, WPA2-PSK security
•802.1x authentication
•WPS (Wi-Fi Protected Setup)



System Requirements

Package Content

Installation

•TV, (Blu-ray) DVD player, NAS or other devices with Ethernet port
•Existing wireless home network
•Computer with Ethernet port and Web Browser for software configuration (Internet Explorer 7 or above, Google Chrome, Firefox, Safari latest version)

•CV-7428nS device
•Quick Install Guide
•CD with multi-language QIG and User Manual
•One RJ45 Ethernet Cable
•Access Key card

•Multi-language iQSetup (Browser interface)
•Hardware WPS button

Humidity & Temperature

Power Adapter

 Antenna

•10-90% (Non-condensing)
•0-40°C (32 -104°F)

•DC 5V 1A switching power adapter

•2 x 2dBi external antennas

Dimensions

Weights

  Certifications

•30(H) x 127(W) x 96(D) mm

•155 grams (0.34 lb)

•CE, FCC




PACKAGE CONTENT
  • CV-7428nS device
  • Quick Install Guide
  • CD with multi-language QIG and User Manual
  • One RJ45 Ethernet Cable
  • Access Key card

HARDWARE INTERFACE



Edimax N300 Universal Wi-Fi Bridge for Smart TV, Blu-ray and Gaming CV-7428nS_Hardware_Interface.png



*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
