Surveillance VLAN 12-Port Gigabit PoE+ Long Range Web Smart Switch with 2 Gigabit RJ45 Ports and 2 SFP Ports

GS-5210PL

Edimax Pro Logo
  • 8 Gigabit Ethernet PoE+ ports and 2 Gigabit RJ45 plus 2 Gigabit SFP ports
  • One-click to create Surveillance VLAN and auto-discover, auto-enrolled devices at once
  • 4-digit LED display instantly showing PoE power budget available and power consumption per port
  • PoE powered devices (PD) alive check to enhance the reliability of the network
  • Dual-firmware image for robust failover mechanisms
  • Guaranteed PoE long distance to 200 meters
  • Power backfeed protection to avoid damaging the PoE ports
  • IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
  • DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
  • IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 110W) for powering PoE-enabled devices
  • Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.
  • Supports 24Gbps backplane bandwidth, 17.8Mpps forwarding rate, 8K MAC address table and 9KB jumbo frame
Share


For Quick Install of Security Devices

The GS-5210PL provides system integrators easy setup, quick discovery, configuration, and product control on the network. Just plug and play.

Beyond Security | All Fit Together

The EDIMAX switches series greatly enhances IP surveillance network systems; it supports fast and easy system settings, device discovery, and user authentication.

Let Safety be Known

The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.

Strong Ability to Proceed Data

With 24Gbps backplane bandwidth and a forwarding rate of 17.8Mpps, the GS-5210PL provides maximum available bandwidth without delay.

Robust Failover Mechanisms

The GS-5210PL has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.

Guaranteed 200 Meters | Going the Distance

While general Ethernet switches have a distance restriction of 100 meters, the GS-5210PL long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.

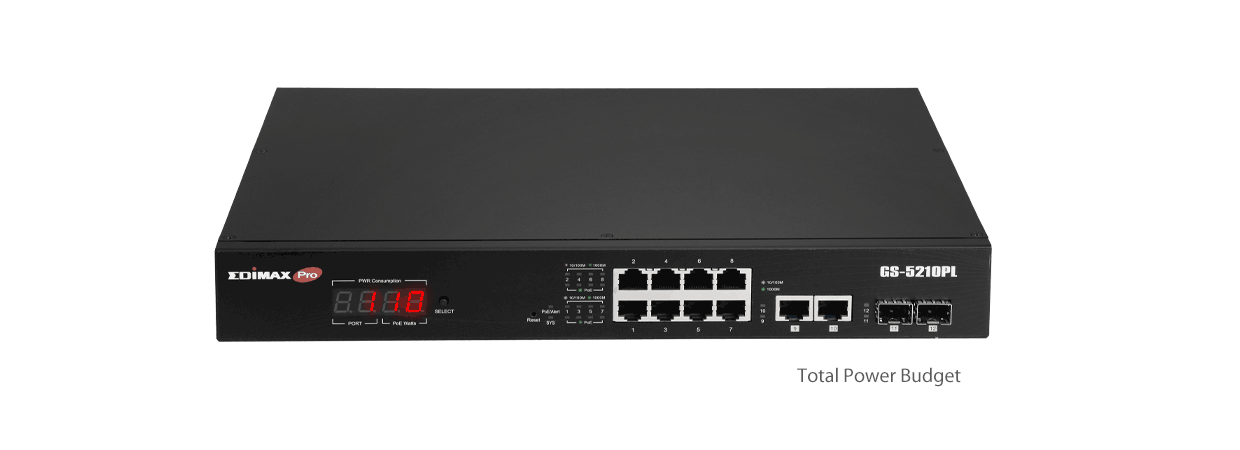

4-digit LED Display | Knowing Instant Power Data

In addition to a web-based GUI to keep track of port power, the GS-5210PL features an intuitive 4-digit LED display showing its power consumption. System integrators can check the total power budget, power consumption per port, and available power left. All with a single hardware select button.

Safe Power Backfeed Protection

Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.

Networking Scenarios

Share


SPECIFICATIONS

HARDWARE
Ports
  • 8 x RJ45 10/100/1000Base-T Gigabit PoE ports
  • 2 x RJ45 10/100/1000Base-T Gigabit ports
  • 2 x SFP 1000Base-SX/LX Gigabit ports
Buttons
  • Reset button
  • SELECT button
LED Indicators
  • PoE Alert: PoE Power Consumption Alert
  • SYS ALM: System Alert
  • PoE: PoE Status (1-8 port)
  • Link/Act: Connection and Transmission Status (1-12 port)
  • PWR Consumption: PoE Budget Available
  • PORT: PoE port number
  • PoE Watts: Port Power Consumption
Power Input 100-240V AC, 50-60 Hz, internal power supply
Total Power Budget 110W
Mounting Desktop / Rack-mount (Rack-mount kit included)
Housing Metal
Fan Fanless
Dimensions 330 (W) x 230 (D) x 44 (H) mm
(12.99 (W) x 9.06 (D) x 1.73 (H) inches)
Weight 2.3kg (5.071lb)
PERFORMANCE
Switching Capacity / Backplane 24Gbps
Forwarding Rate Max. 17.8Mpps (64-byte package size)
MAC Address 8K
Jumbo Frames 9KBytes
Packet Buffer 4.1Mb
POWER OVER ETHERNET
Standard IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output Up to 30W per port
Pin Assignment 1/2(+), 3/6(-) End-Span (mode A)
Management PoE status, PoE scheduling, PoE priority, PoE on/off, PoE PD alive check
PoE Long Range Guaranteed PoE long range to 200 meters at 10Mbps
Power Backfeed Protection Built-in
SMART FEATURES
Quality of Service (QoS)
  • Rate limiting on packets sent and received by an interface
  • 8 queues on each port
  • WRR, SP, WRR+SP queue scheduling algorithms
  • Re-marking of the 802.1p priority and DSCP priority
  • Rate limiting in each queue and traffic shaping on ports
Class of Service (CoS)
  • IEEE 802.1p class of service (SPQ, WRR)
  • Port-based CoS
  • IP TOS precedence
  • 802.1p VLAN Information based CoS
  • DSCP based CoS
  • TCP/UDP Based CoS
Spanning Tree
  • IEEE 802.1d Spanning Tree Protocol (STP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
VLAN
  • Up to 256 VLANs and 4096 VLAN IDs
  • 802.1Q tag-based VLAN
  • Port-based VLAN
  • Surveillance VLAN
  • Voice VLAN
  • MAC VLAN
  • GVRP
IPV6
  • IPv6 over Ethernet (RFC 2464)
  • Dual-stack (RFC 4213)
  • ICMPv6 (RFC 4884)
  • Neighbor discovery (RFC 4861)
  • Auto configuration
  • Static IPv6 address and prefix length
  • Static IPv6 default gateway
  • IPv6 duplicate address detection
Port Trunking
  • IEEE 802.3ad LACP Trunk-Static Trunk
  • Up to 8 trunk groups
IGMP Snooping
  • IGMP v1/v2/v3 snooping
  • Block unknown multicast traffic
Port Mirroring Port Mirroring Traffic Direction:
  • Both (Ingress and Egress)
  • Ingress
  • Egress
Security
  • RADIUS
  • TACACS+
  • AAA
  • Management Access
  • Authentication Manager
  • Port Security
  • Protected Port
  • Broadcast Storm Control
  • DoS
  • Dynamic ARP Inspection
  • DHCP Snooping
  • IP Source Guard
  • BPDU Guard
  • Remote Access: HTTPS/SSH/HTTP/Telnet/ Session Timeout
Management
  • User Interface: Web-based management
  • User Account: Login account configuration
  • Firmware Upgrade: Firmware upgrade by WEB
  • Syslog: Support event log, alarm log and security log
  • Dual-firmware image for failover mechanisms
  • ACL (Access Control List)
  • CLI (Command-Line Interface)
  • User Account: Login account configuration
  • SNMP v1/v2c/v3
OTHERS
Standard
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3ab 1000Base-T Gigabit Ethernet
  • IEEE 802.3z 1000Base-SX/LX Gigabit Ethernet over Fiber
  • IEEE 802.3af Power over Ethernet (PoE)
  • IEEE 802.3at Power over Ethernet (PoE+)
  • IEEE 802.3x Full-duplex and flow control
  • IEEE 802.1p Quality of Service (QoS)
  • IEEE 802.1x Port-based Network Access Control (PNAC)
  • IEEE 802.1Q Virtual LANs VLANs
  • IEEE 802.1d Spanning Tree Protocol (STP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP), LLDP-MED (Media Endpoint Discovery)
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • IEEE 802.3az Energy Efficient Ethernet
Environmental Condition Tempertatue:
  • Operating: 0 ~ 40℃ (32~104°F)
  • Storage: -40 ~ 70℃ (-40~158°F)
Humidity:
  • Operating: 10 ~ 90%  (Non-condensing)
  • Storage: 10 ~ 90%  (Non-condensing)
Certifications FCC, CE, BSMI
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
