SPECIFICATIONS
HARDWARE | |
Interface | 1 x USB 3.2 Gen 1 Type-C Connector 1 x RJ-45 10M/100M/1000Mbps LAN port |
LED Indicator | Power, 10/100M, 1000M, USB 3.0* (*Previous USB 3.0/USB 3.1 Gen 1 is rebranded as USB 3.2 Gn1 by USB-IF.) |
Power Consumption | 165mA @5.0VDC (USB Bus Powered) |
Dimensions | 73.2(L) x 28(W) x 13.6(D) mm (2.88(L) x 1.10(W) x 0.54(D) inches) |
Weight | 23.5g (0.83 ounces) |
PERFORMANCE | |
Data Rate | 10M/100M/1000Mbps |
Jumbo Frame | 4K Bytes |
OTHERS | |
Standards | Support USB 3.2 Gen 1/3.1/3.0/2.0/1.1 Compliant IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE 802.1P Layer 2 Priority Encoding and Decoding IEEE 802.1Q VLAN IEEE 802.3x Full Duplex & Flow Control IEEE 802.3az Energy Efficient Ethernet |
System Requirement |
|
Environmental Condition | Teperature:
Operating Temperature: 0°C~40°C (32°F ~104°F)
Humidity:
Storage Temperature: -40°C~70°C (-4°F ~158°F) Operating Humidity: 10~90% (Non-Condensing)
Storage Humidity: 5~90% (Non-Condensing) |
Certification | CE, FCC |

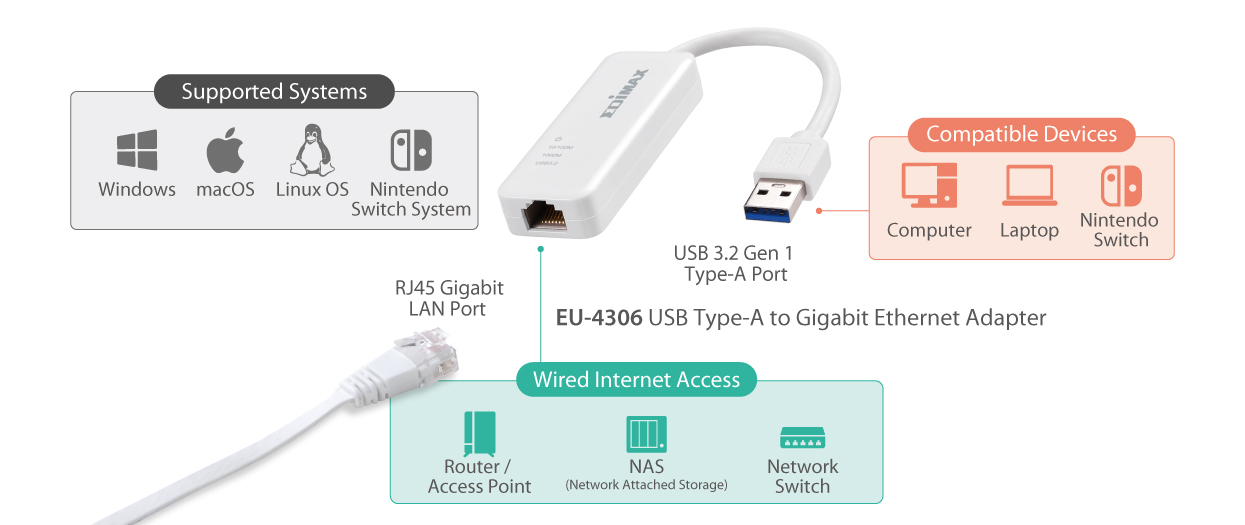

APPLICATION DIAGRAM
