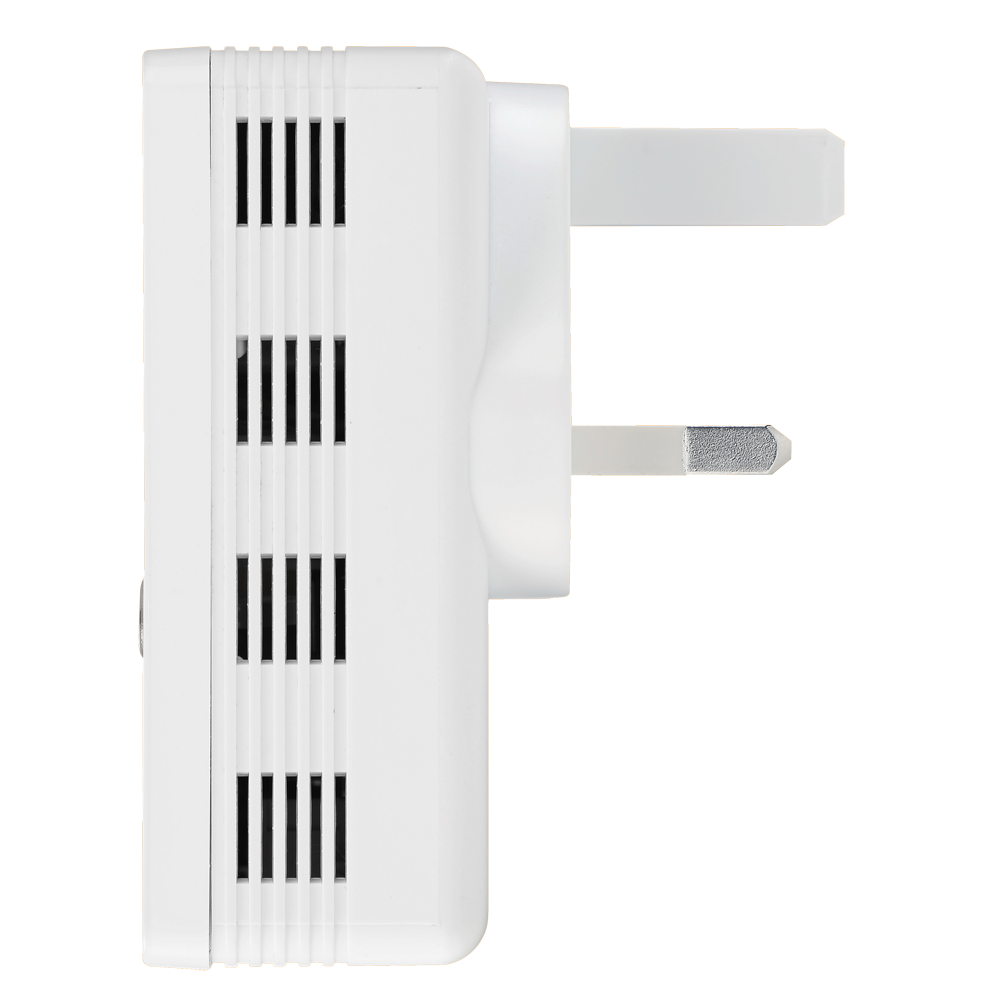

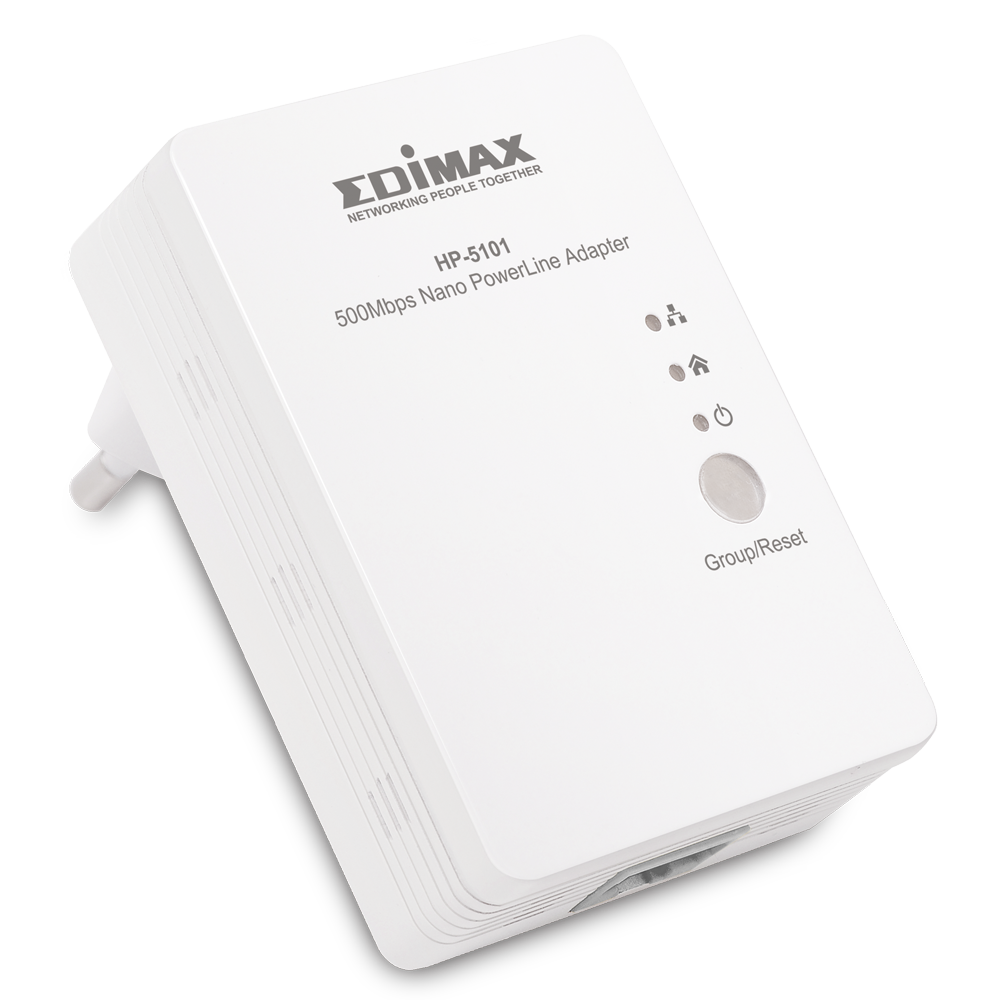

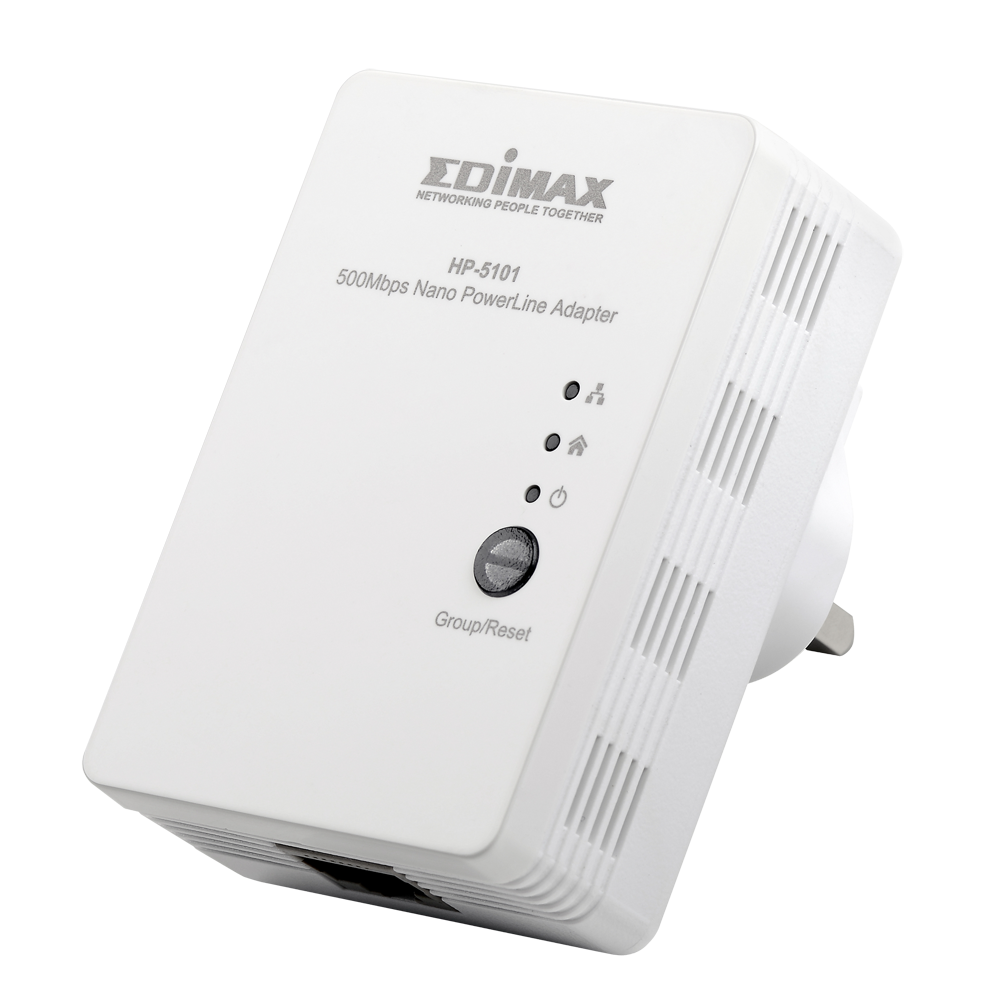

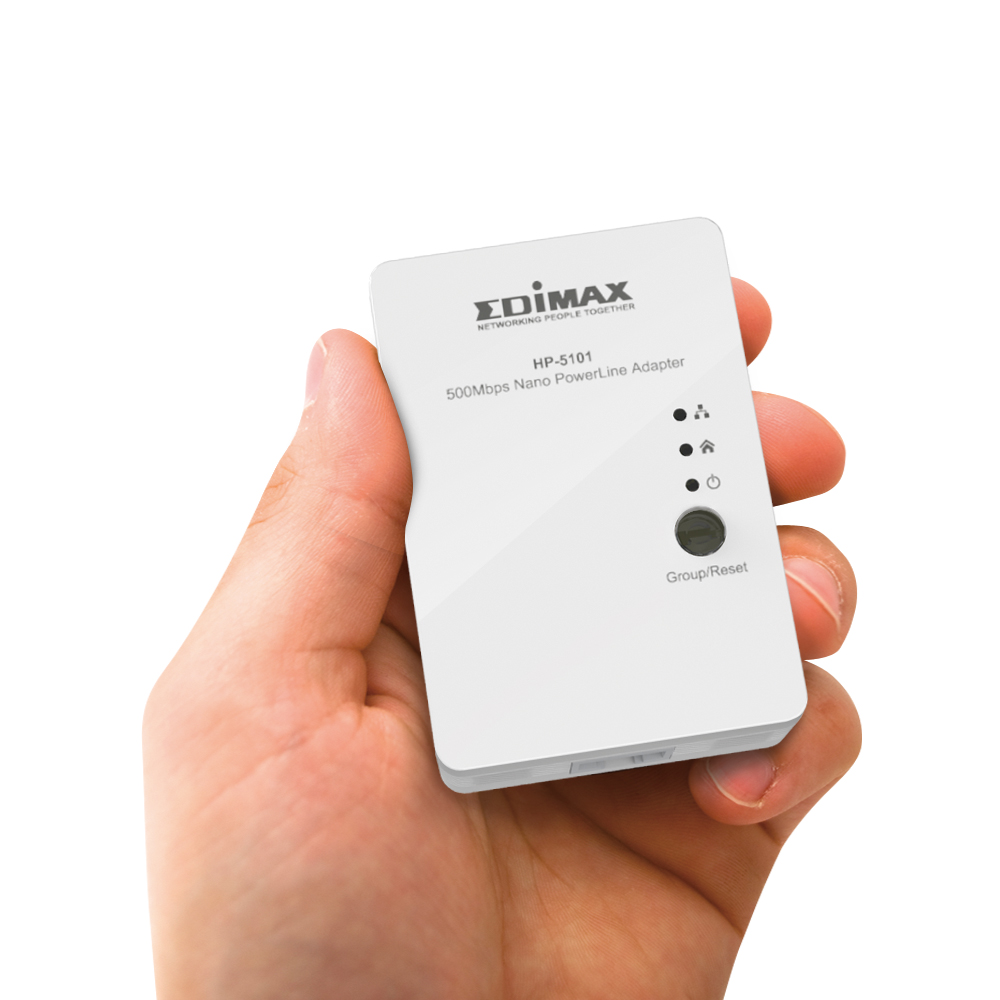

500Mbps Nano PowerLine Adapter Kit
HP-5101K
  • Easy plug-n-play setup and 128 bit AES security
  • Maximum powerline speed tp to 500Mbps
  • Backward compatible with 200Mbps powerline adapters
  • Features energy saving mode to reduce power consumption
  • Utilizes existing electrical wires to transmit network data
  • Powerline transmission range up to 300 meters
  • HP-5101K adaper kit includes 2 x HP-5101


Edimax HomePlugs up to 500MbpsEdimax HomePlugs with Plug & PlayEdimax HomePlugs for HD IPTVEdimax HomePlugs with Energy Saving



Transmit Network Data via Existing Electrical Wires
The Edimax HP-5101 can turn the existing electrical wires in your home or office into a high-speed network. Complicated, disruptive and unsightly cabling is no longer necessary -if your home or office doesn’t have an existing Ethernet cable infrastructure, the HP-5101 enables you to create a network environment easily and cost-effectively.

500Mbps HomePlug AV Standard & IGMP Support
The Edimax HP-5101 not only complies with the HomePlug AV standard but also supports IGMP managed multicast streams. The HP-5101 can transmit network data over existing electrical wires at speeds of up to 500Mbps. It is also backward compatible with the 200Mbps HomePlug AV standard and has a transmission range of up to 300 meters. IGMP can be used for online gaming and video streaming applications, and allows for more efficient use of network resources. With the HP-5101, you will be able to transfer high-definition video and digital audio quickly and easily.

Compatibile with HomePlug 1.0 & 1.0 Turbo Devices
The HP-5101 is designed to ensure efficient coexistence with HomePlug 1.0 and 1.0 Turbo devices, providing guaranteed QoS to all the devices present in a heterogeneous powerline network. In such an architecture, the HP-5101 and other HomePlug 1.0 stations share the CSMA/CA allocations, thus providing fair access to HomePlug 1.0 stations based on traffic priority.

Hardware Combo Group/Reset Button
The Edimax HP-5101 has a combo group/reset button for simplified group and reset configurations. Press the group/reset button and the HP-5101 will help you set up a password for your network automatically, or reset the device to factory defaults.

128-Bit AES Encryption
With built-in compliance with the 128-bit AES encryption standard, the Edimax HP-5101 is able to give you superior powerline network security.














APPLICATION DIAGRAM



*Powerline adapters must be deployed in sets of two or more.

500/200Mbps is the maximum theoretical communication speed at the physical layer via electric power lines based on the IEEE 1901 standard.



VIDEO

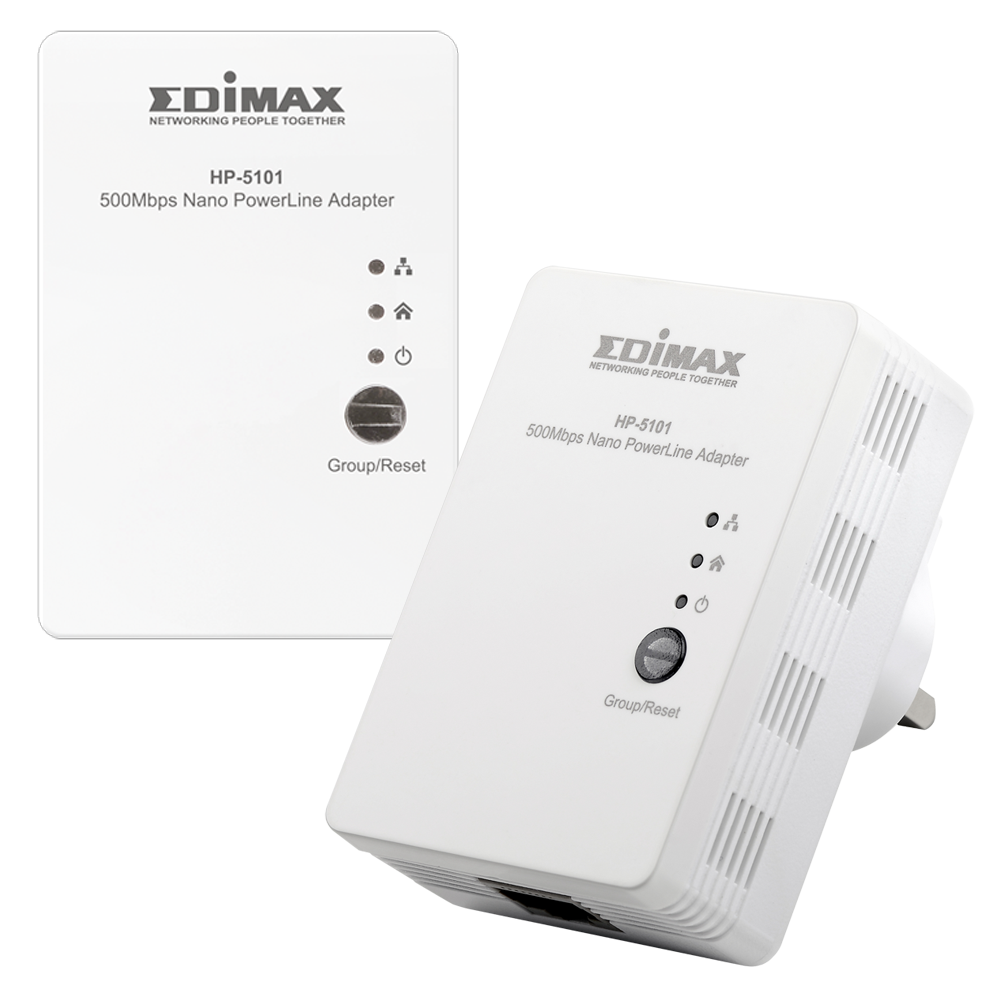

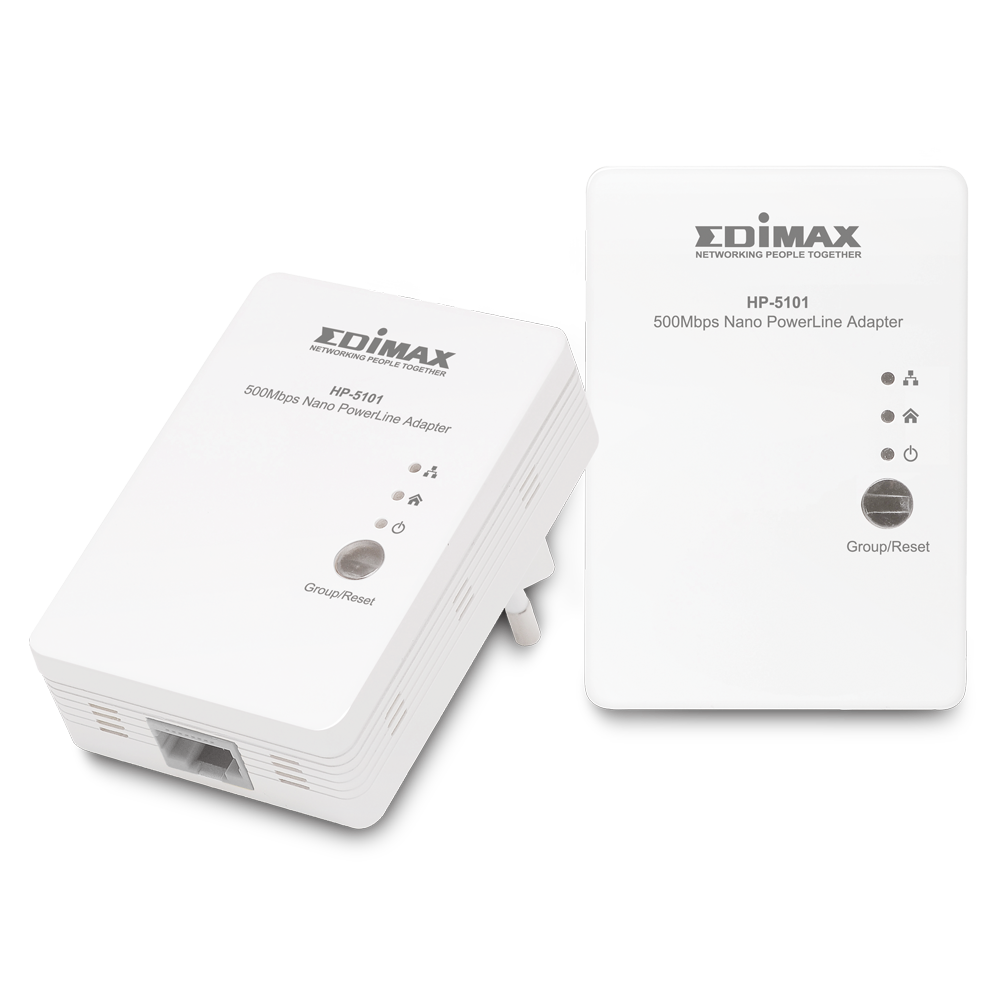

 HP-5101K PowerLine Adapter Kit (2 pcs of HP-5101)



SPECIFICATIONS
Hardware
Standards
Functions
  • 1 x Power jack

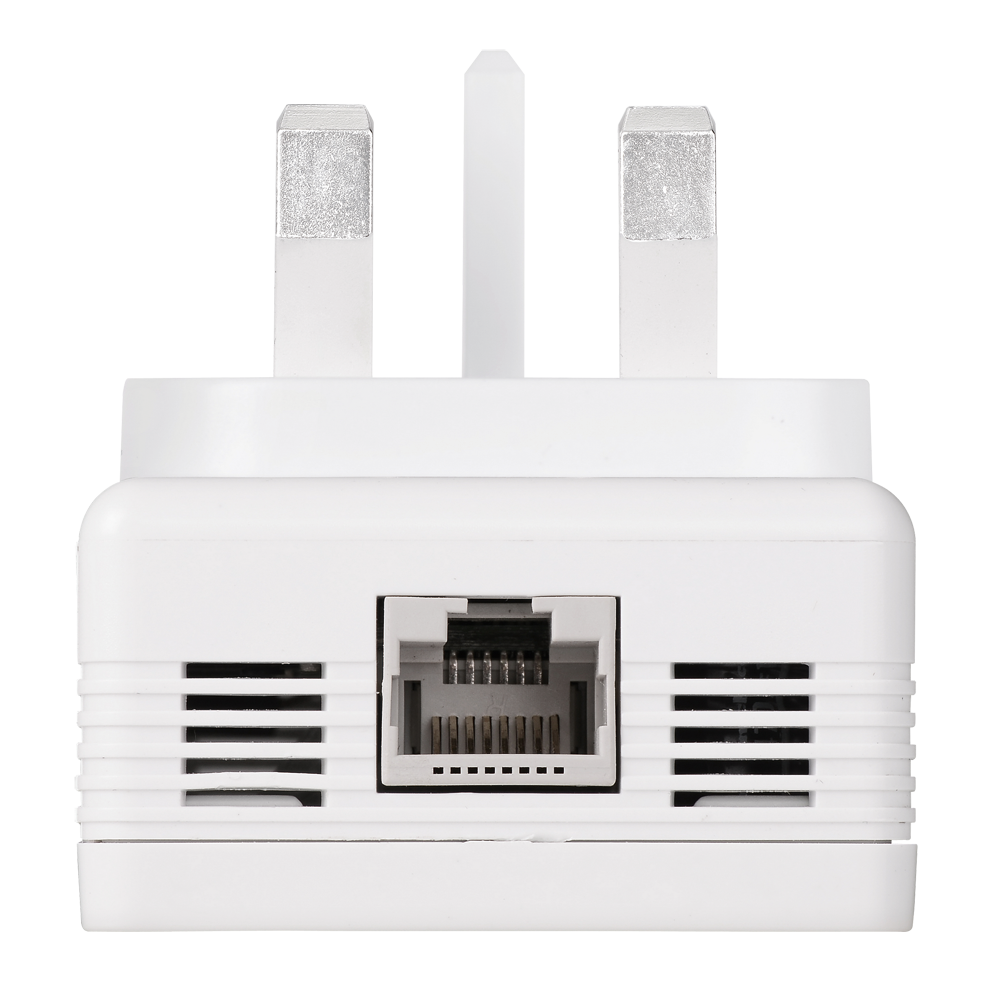

  • 1 x 10/100Mbps Fast Ethernet port
  • 1 x Group/Reset button
  • LED indicators: power, Ethernet, powerline
  • IEEE 1901
  • IEEE 802.3
  • IEEE 802.3u
  • Supports IPv6, IGMP, and MLD snooping
  • Supports VLAN pass-through
  • Integrated Quality of Service (QoS)
  • Coexistence with HomePlug 1.0 devices
  • Utility software
Frequency Band
Modulation Schemes
Operating Range
  • 2-68MHz
  • OFDM symbol modulation on line synchronization 1024/256/64/16/8-QAM, QPSK, BPSK, ROBO modulation
  • Up to 300 meters
Memory
Security
Temperature & Humidity
  • 1MB Flash
  • 8MB SDRAM
  • 128-bit AES link encryption
  • 0-40 degrees Celsius
  • 10-90% (non-condensing)
Power Input
Dimensions
Certifications
  • 100-240V AC, 50-60Hz
  • 72 x 52 x 24 mm
  • CE, FCC



PACKAGE CONTENTS

  • Powerline adapter x 2
  • Quick installation guide x 1
  • CD with setup wizard, user manual & multi‐language QIG x 1
  • Ethernet cable x 2
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Product specifications and design are subject to change without notice.
