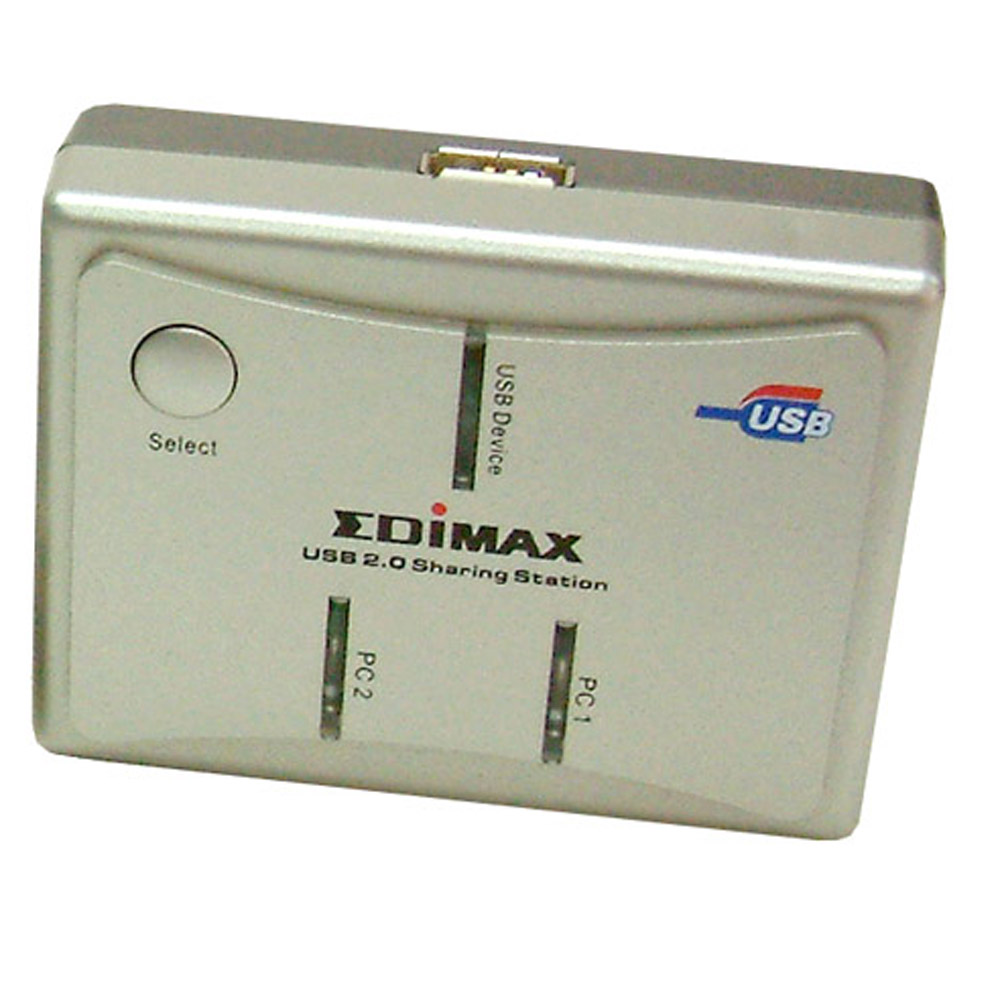

2 Ports USB 2.0 Sharing Station
EU-SD2P

( End-of-Life Product, no longer supported by Edimax tech support )

  • Compatible With USB 2.0 And USB 1.1 Products
  • Support EHCI, UHCI And OHCI USB Interface
  • Hot Swappable, Plug-and-Play
  • Support IBM PC / Mac / Sun System
  • LED Display For Device Activity





This USB 2.0 sharing station allows two or four computers to share one or more (with USB HUB) USB 2.0 or 1.1 devices, Normally, most of computers have been built-in 2 USB down stream ports and each computer can easily connect to its own private USB devices. But USB devices are costly and the user need to swap the USB devices every time.

This USB 2.0 sharing station can reduce your efforts on USB devices between computers back and forth.  This USB 2.0 sharing station are built-in not only one push button but also Hot Key function for IBM PC compatible, the Hot Key function enables user press and select button to retrieve the USB port back to him right away without leaving the working table. It also USB2.0 compliance that you can connect to USB2.0 Hub at this USB device port.

Key Features

  • Make Two or Four Computers able to share one USB 2.0 or 1.1 device
  • USB 2.0, 1.1 Compliant
  • Support EHCI, UHCI and OHCI USB interface
  • Supports USB Bus power mode
  • Using Push button, Hot Key to switch USB device port between PCs and easy operation
  • Using Push button to switch USB device port between iMACs or SUN Micro Systems and easy operation
  • The cable length from computer to USB switch box or USB switch box to USB device is maximum 1.8 meters
  • Easy to share other expensive USB peripherals like USB2.0 to HDD, USB2.0 to CDRW, Wireless LAN adapter, USB to Bluetooth adapter, USB to IRDA adapter, USB docking station, USB Zip drive, USB card reader, USB to USB Bridge, USB to Ethernet or other USB adapters.
  • Easy Extend USB down stream ports or add a 4 or 7 port USB Hub to this USB device port for more USB devices connected to your computer

EU-SD2P and EU-SD4P application





Model

EU-SD2P

EU-SD4P

 PC Port 2 4
 USB Device Port 1
 PC Port Connector  USB Type B Receptacle
 USB Device Port  USB Type A Receptacle
 USB Device Selection  Push Button ( For PC / MAC / SUN )

 Hot Key ( Only for PC )

 PC Port LED 2 4
 Cable Length (meters) 2 x 1.8m Type A to Type B
 USB Power Bus Power
 Operation Temperature 0~40
 Storage Temperature -20~60
 Emission CE, FCC, C-Tick
 Humidity 0~80 Non-condensing
 Dimension (mm) 84(L)*65(W)*27(H) 119(L)*84(W)*27(H)
 Enclosure Plastic
 Weight (g) 75g 120g
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
