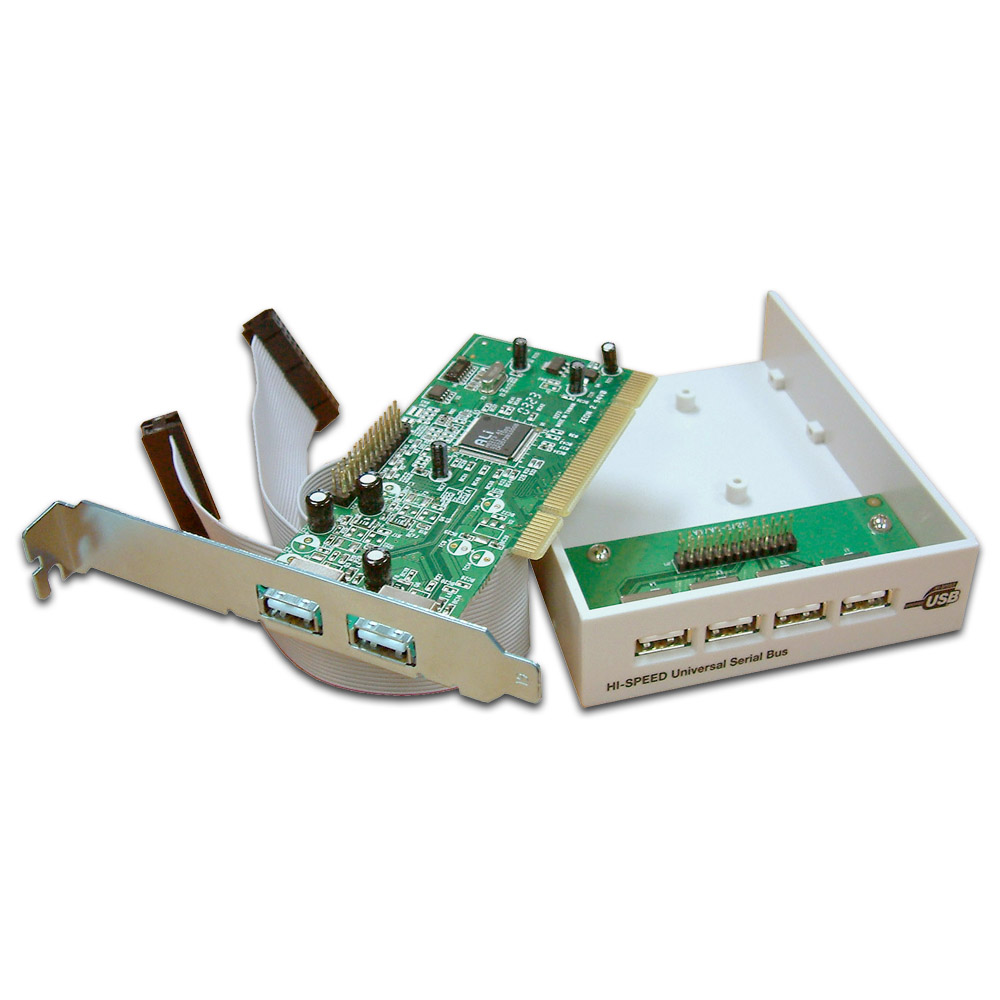

2 PCI Ports + 4 x 3.5” Bay Mounted Ports

( End-of-Life Product, no longer supported by Edimax tech support )

  • 32-bit, 33MHz PCI BUS
  • Compatible with USB 2.0 and USB 1.1 products
  • BUS Power support
  • Hot Swap support with Plug-and-Play
  • Legacy support for all USB ports
  • Connects up to 127 devices

Key Features

  • Upgrade your Desktop PC with 6 more High Speed USB 2.0 port
  • 4 port front bay fits into 3.5-inch FDD tray for easy connection
  • 2 port build-in on the PCI card for any resident device
  • Support Hot-Swap with power over-current protection
  • High Data transfers at speed of 480Mbps for each port
  • Backward compatible with USB 1.1 / 1.0 specifications
  • Connects up to 127 devices in star topology configuration
  • Driver support Windows 98SE / Me / 2000 / XP and Mac

Chipset  ALI
Bus  PCI Local Bus Ver 2.2 Compliant
Type  USB Version 2.0
Speed  Each port 480M/bps
Compatible  USB 1.1 Device Compatible
Feature  USB 2.0 EHCI and USB 1.1 OHCI Compliant
Supports  Up to 127 USB Devices
Provides  2 PCI Ports + 4 x 3.5” Bay Mounted Ports
Power  Over current protection, each port 500mA
Connect  USB-A connector
