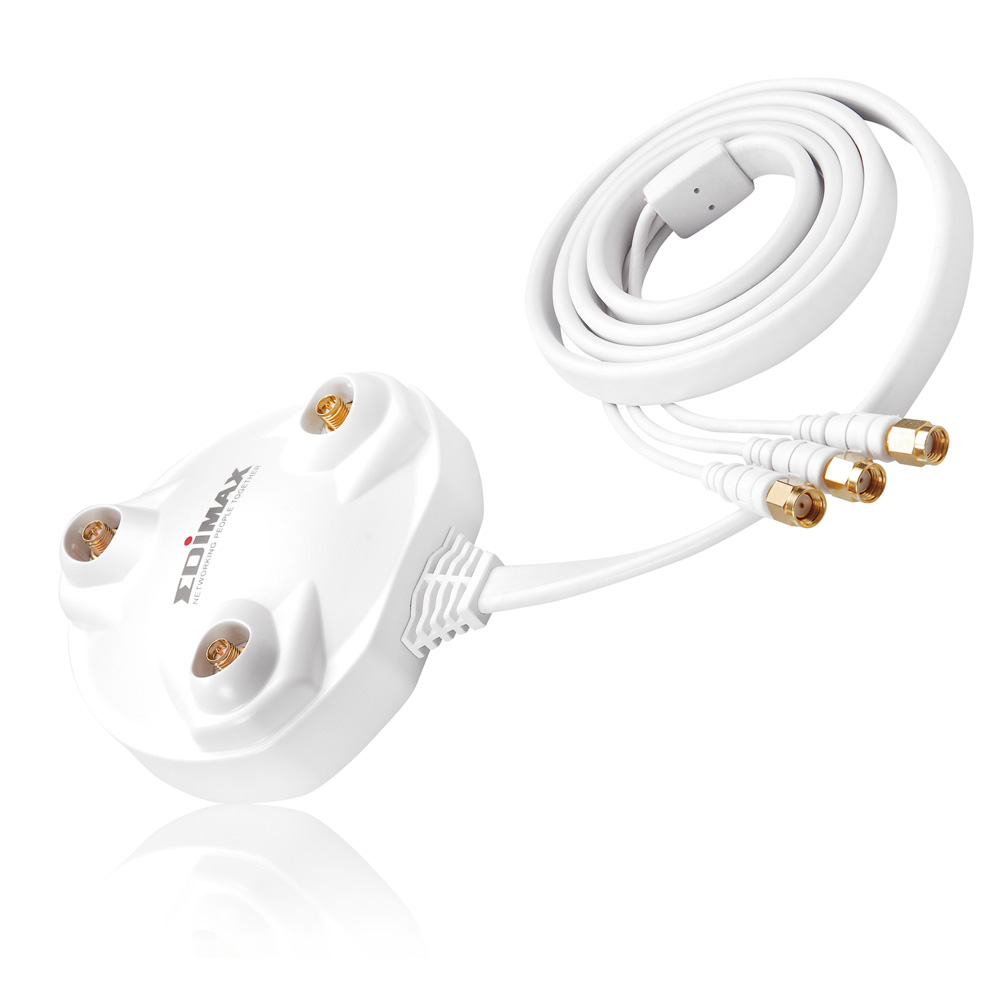

802.11n / MIMO Antenna Relocation Stand
EA-MARS
  • Works with most wireless 802.11n and MIMO devices with RPSMA antennas
  • Relocates the antennas to avoid reflective or signal blocking obstacles
  • Includes 1.5 meter flexible 3-in-1 cable
  • Provides a desktop stand, wall mount, and ceiling mount with magnetic
  • No configuration required
(End-of-Life Product)


EA-MARS recoloates the antennas of wireless 802.11n/MIMO devices (like broadband router, ADSL router and PCI adapters)

Key Feature

  • Provides optimal relocation from your MIMO device (Router, AP or PCI card) to better position
  • The stand helps to maximize your network range by moving your antennas to an better location
  • Avoids reflective or signal blocking obstacles and provides clearer signal paths to other devices
  • With delicate 1.5 meter flexible 3-in-1 cable assembled
  • Allows you to use the original MIMO antennas from your devices to connect easily without tools
  • The bottom cover of the stand can be released and used for ceiling mount at reversed side
  • Provides a desktop, wall mount and ceiling mount with powerful magnetic design
  • Provides optimal relocation from your MIMO device (Broadband Router, Access Point or PCI adapter) to better position.
  • Provides a desktop, wall mount, and ceiling mount with magnetic.
  • No configuration software / Drive needed.

Specifications

EA-MARS

Connectors

3 x reverse SMA jack connectors on the stand
3 x reverse SMA plug Connectors on the cable side

Cable Type / Material

3 in 1 GDC-101B black color / PVC

Cable length

1.2 meter

Stand Material

ABS

Impedance

50 Ohm

Operating Temp.

-20 °C C to 65 °C

Storage Temp.

 -30 °C to 75 °C

Cable Attenuation

11b/g : 1.2dB/ meter & 11a : 2.2dB/ meter

Dimension

(L x W x H) 97 x 95 x 32 mm

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Product specifications and design are subject to change without notice.
